The OS2 Manual Control Point provides indication of the OS2 SHEVTEC Controller condition
and provides high priority open and close controls.

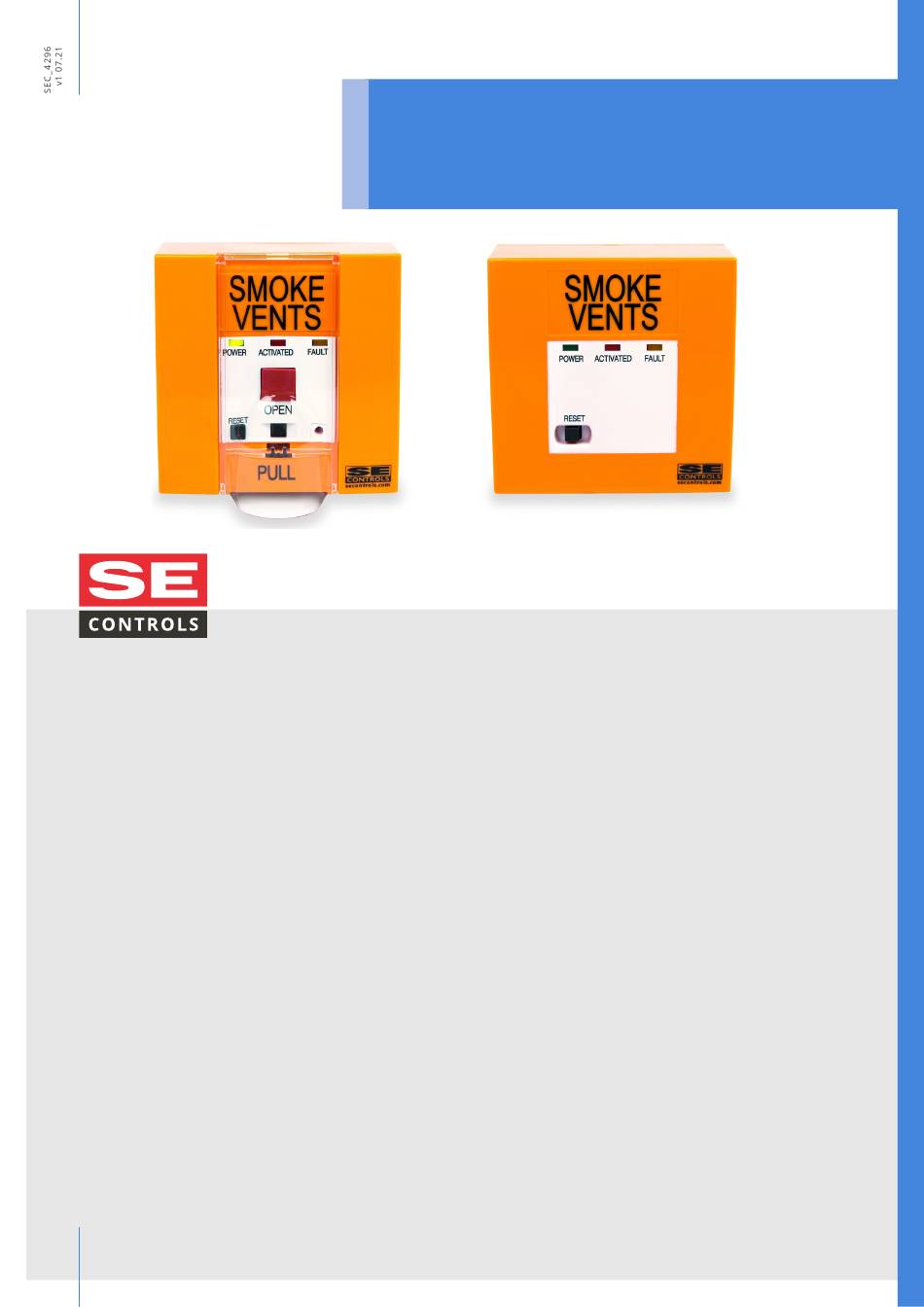

There are two product variants:
Standard MCP.
Has two push buttons protected from accidental operation by a plastic hinged cover. Once
the cover is lifted an electronic key is required to secure the cover and reset the flashing
green LED.
Tamper-proof MCP.
Used a special electronic key inserted in the slot in the underside to activate the system.
Both MCPs are mounted on the same OS2 MCP Adapter Plate Assembly.
Only to be installed by competent electricians.
+44 (0)1543 443060
sales@secontrols.com
www.secontrols.com
OS2 Manual Control Points
Technical information and operating instructions
Please keep these operating instructions for future reference and maintenance.
Subject to technical modifications. Diagram is not binding.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SE Controls OS2
Summary of Contents for SE Controls OS2
- Page 1 OS2 Manual Control Points Technical information and operating instructions Product Description. The OS2 Manual Control Point provides indication of the OS2 SHEVTEC Controller condition and provides high priority open and close controls. There are two product variants: Standard MCP. Has two push buttons protected from accidental operation by a plastic hinged cover. Once the cover is lifted an electronic key is required to secure the cover and reset the flashing green LED.
- Page 2 Product Components MCP Module FCS00200016 Tamper MCP Module FCS00200037 Adapter Plate Assembly Surface Mounting Box FCS00200017 FYS15040061 Activation Key Dumb Reset Key FCS00200033 FCS00200024 The clear plastic front cover of the standard MCP can be replaced if missing or damaged - FXS00200053 Please keep these operating instructions for future reference and maintenance.
- Page 3 Installation Position. All connections to the OS2 MCP are made via the connection PCB mounted within the adapter plate assembly. (See diagram below). The jumper CN1 must be fitted in the left hand (“HLTY=FSL”) position.
- Page 4 This cover can be opened by pulling firmly on the lowest part of the cover. Once opened, the cover cannot be properly closed without use of a reset key inserted in the slot on the underside. There is no cover flap on the FCS 0020 0037 OS2 Tamperproof CP.
