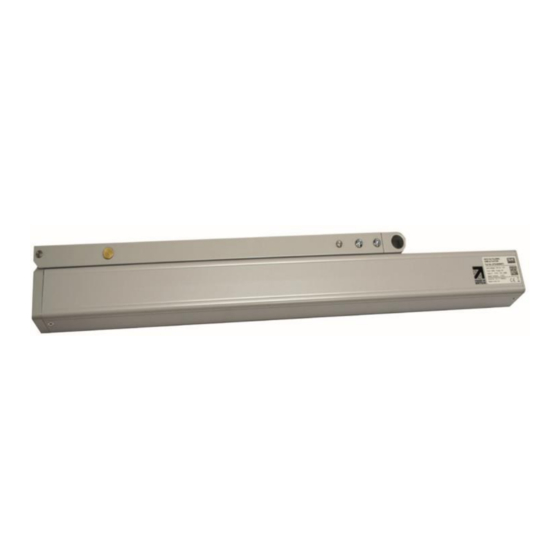

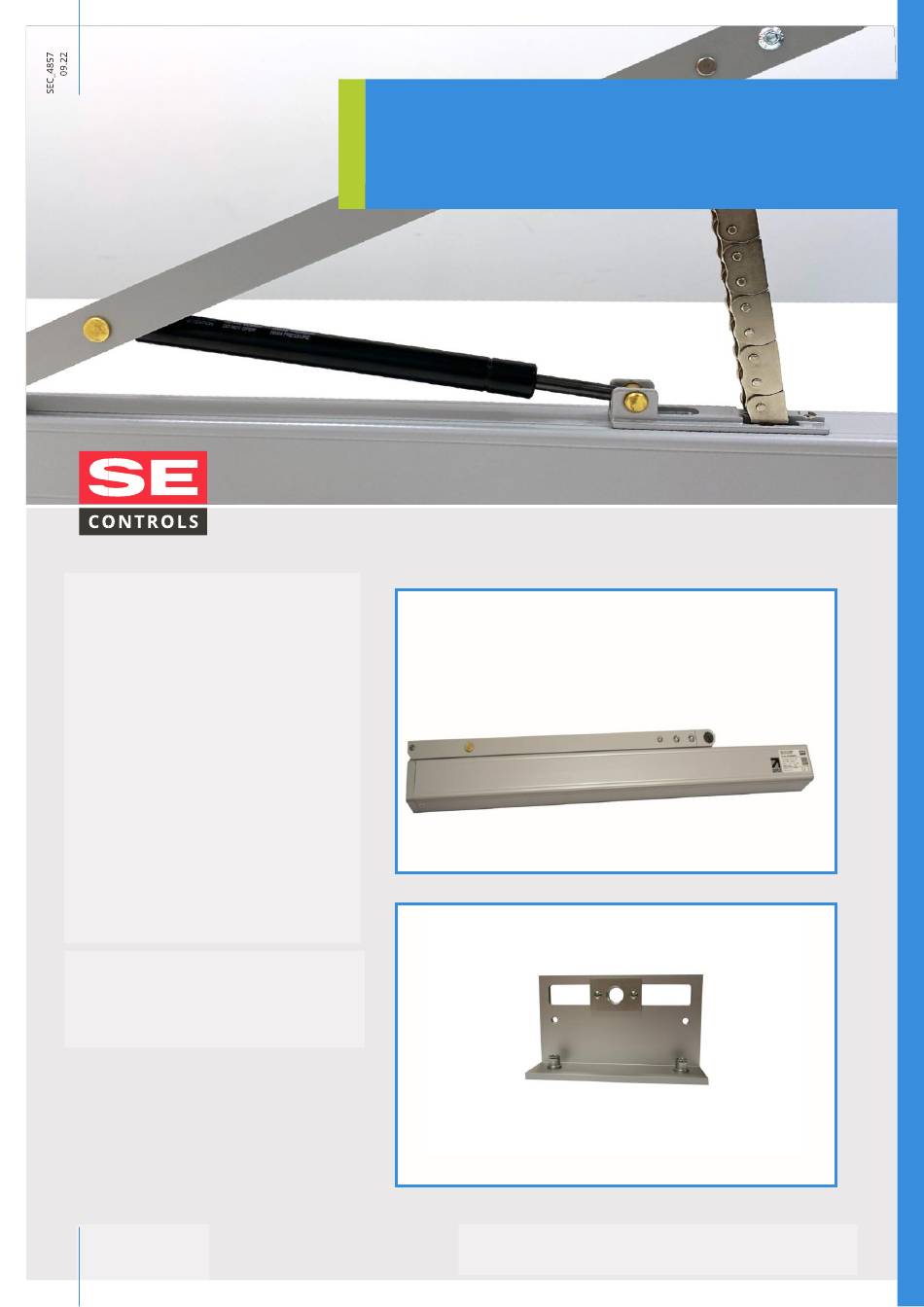

SECO Ni Folding Arm
Fixed Version
•
24 V dc Fixed Folding Arm
•
Smoke & Environmental Ventilation
applications
•
Configurable:
•
Speed
•
Stroke
•
Seal Relief
•
Volt Free Contact
•
Range of Fixing Systems.
•
Options for customisation to meet
application requirements.
•
CE Marked
Bracket Part Numbers
AKS20000003 - Pivot/Slider Kit
AKS20000002 - Mounting Bracket Kit
+44 (0)1543 443060
sales@secontrols.com
www.secontrols.com
SECO Ni Folding Arm Actuator
Fixed Version - Technical information and operating
instructions
Please keep these operating instructions for future reference and maintenance.
Subject to technical modifications. Diagram is not binding.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SE Controls SECO AKS20000003
Summary of Contents for SE Controls SECO AKS20000003
- Page 1 SECO Ni Folding Arm Actuator Fixed Version - Technical information and operating instructions SECO Ni Folding Arm Fixed Version • 24 V dc Fixed Folding Arm • Smoke & Environmental Ventilation applications • Configurable: • Speed • Stroke • Seal Relief •...
- Page 2 Please keep these operating instructions for future reference and maintenance. +44 (0)1543 443060 Subject to technical modifications. Diagram is not binding. sales@secontrols.com www.secontrols.com...
- Page 3 Technical Data Actuator SECO Ni Folding Arm Actuator Actuator Type 24V dc Folding Arm Actuator Voltage (all +/-5%) 24V dc Current Draw (Amp) 1.0A Stroke/Opening Angle 0-600mm / 0-90° programmable Operating Speed 15mm/sec Ambient Operating Temp -5°C to +60°C Thrust Force 400N Close Force 400N...
- Page 4 Synchronisation Optional in pairs Please keep these operating instructions for future reference and maintenance. +44 (0)1543 443060 Subject to technical modifications. Diagram is not binding. sales@secontrols.com www.secontrols.com...
- Page 5 Please keep these operating instructions for future reference and maintenance. +44 (0)1543 443060 Subject to technical modifications. Diagram is not binding. sales@secontrols.com www.secontrols.com...
- Page 6 1.1 General Safety Information 1.2 Health and Safety SE Controls reserves the right to introduce any Electrical Safety; Warning 230 V AC Dangerous modifications and improvements to the contents of this voltage. Can cause death, serious injury or publication without the obligation of giving prior notice.
- Page 7 Please keep these operating instructions for future reference and maintenance. +44 (0)1543 443060 Subject to technical modifications. Diagram is not binding. sales@secontrols.com www.secontrols.com...
- Page 8 Use only original accessories or Take care - the pressure force is high enough to accessories approved by SE Controls to install the cause injury! actuator. The actuator is not a structural member of the window.
- Page 9 Please keep these operating instructions for future reference and maintenance. +44 (0)1543 443060 Subject to technical modifications. Diagram is not binding. sales@secontrols.com www.secontrols.com...
- Page 10 SE Controls. • Do not use the actuator until it has been repaired. A suitable service contract with SE Controls is recommended for this purpose. The gear system is greased for life and is maintenance free. Defective equipment must only be repaired by SE Controls.
- Page 11 Please keep these operating instructions for future reference and maintenance. +44 (0)1543 443060 Subject to technical modifications. Diagram is not binding. sales@secontrols.com www.secontrols.com...
- Page 12 Installation Guide - Door Applications 1 . Ensure door is free and clear of 2 . Install the Supplied pivot . 3 Offer actuator up to door with the all obstructions and debris. bracket set to the actuator. door and actuator fully closed. Take measurement of the fixing height required for the actuator not to touch the opening door when door opens/...
-
Page 13: Technical Drawing
Technical Drawing Wiring Please keep these operating instructions for future reference and maintenance. Subject to technical modification. +44 (0)1543 443060... - Page 14 Wiring - Electric Strike Wiring - Magnet Creating a healthier & safer environment...
- Page 15 Fradley Park, Lichfield www.secontrols.com Staffordshire WS13 8RZ Name & registered office: Loanguard Limited, Lancaster House, Wellington Crescent, Fradley Park, Lichfield, Staffordshire WS13 8RZ Company No.01468061 Vat No.377 5600 30 - SE Controls is a Registered Trademark +44 (0)1543 443060...
