TWIN SECO N 24 25
Technical Information and operating instructions
Please keep these operating instruction for future reference and maintenance
Subject to technical modifications. diagram is not binding
Application

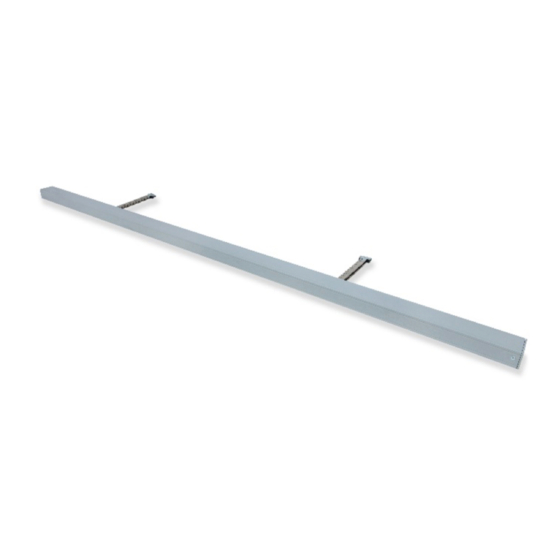

TWIN SECO N 24 25
•
24V Dc Chain Motor
•
Environmental Ventilation applications
•
Range of Strokes (max. 350mm)
•
Range of Fixing Systems
•
Tailored options available to meet
application requirements
•
CE Marked
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SE Controls TWIN SECO N 24 25
Summary of Contents for SE Controls TWIN SECO N 24 25
- Page 1 TWIN SECO N 24 25 Technical Information and operating instructions Application TWIN SECO N 24 25 • 24V Dc Chain Motor • Environmental Ventilation applications • Range of Strokes (max. 350mm) • Range of Fixing Systems • Tailored options available to meet application requirements •...
- Page 2 Specification ACTUATOR TWIN SECO N 24 25 ACTUATOR TYPE MOTORISED 24V dc CHAIN OPENER DIMENSIONS 29 X 42 X 1131 / 1309 / 1359 AMP DRAW CURRENT (no load) < 1.0A AMP DRAW CURRENT (with load) < 1.0A STALL CURRENT 2.0A (for 500mS)
- Page 3 General Safety Information All actuator products contain metallic, plastic and electronic parts. Redundant electronic products SE Controls reserves the right to introduce any modifications are classified as hazardous waste under the and improvements to the contents of this publication without WEEE regulations (Waste Electrical and Electronic the obligation of giving prior notice.
- Page 4 Do not use the actuator until it has been repaired. During assembly and operation do not obstruct the window opening! A suitable service contract with SE Controls is recommended for Danger of crushing/trapping! this purpose. Routing of cables and electrical connections only to be done by a The gear system is greased for life and is maintenance free.
-
Page 5: Installation
Installation A: Bottom hung inward opening B: Top hung outward opening C: Top hung outward opening D: Bottom hung outward opening 1. Body of chain actuator 2. Trunnion set (installed in the moving part of the window) 3. Sill fixing option 4. - Page 6 Installation Guide A: Bottom hung window installation The installation process is similar to the above (Top hung window installation) Caution: Safety arms chains are recommended to connect to the frame for moving part of the window if bottom hung widows are installed.
- Page 7 Installation C: Top hung window installation i. Fix the trunnion set(2) in the mid position on the moving part of the window. ii. Close the window, then fix the chain actuator body(1) with the pivot bracket set(3) provided. It should be aligned with the trunnion set(2) on the moving part of the window.
- Page 8 Connection DC 24 V version (2 wires) Connection DC 24 V version for volft free connection (4 wires) Page 8...
- Page 9 Lichfield Staffs WS13 8RZ Tel: 01543 443060 Fax: 01543 443070 Website: www.secontrols.com Email: sales@secontrols.com SE Controls is a Registered Trademark Please keep these operating instructions for future reference and maintenance. Subject to technical modifications. Diagrams are not binding. Page 9...
