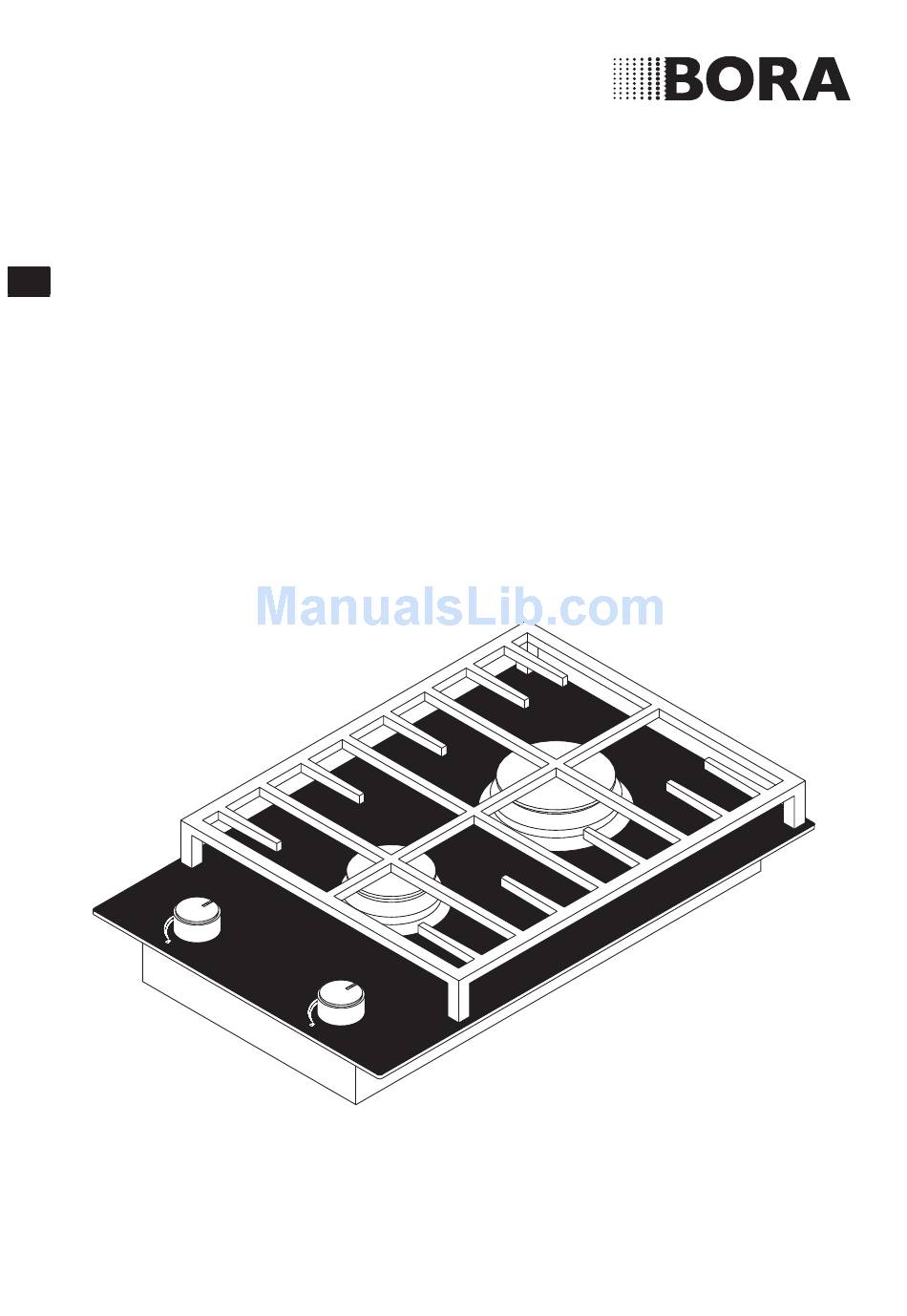

- Page 1 Operating and installation instructions CG11 Gas glass ceramic cooktop with 2 cooking zones CG11UMEN-000 www.bora.com...
- Page 2 T +49 (0) 8035 / 907-240 F +49 (0) 8035 / 907-249 info@bora.com www.bora.com The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised. © BORA Lüftungstechnik GmbH, 2014 All rights reserved.
-
Page 3: Table Of Contents
Handover to user ........... 21 Nozzle table ........... 21 Operation Ignite the gas burner ........22 Adjusting the power level ......22 Correct use of the gas hob ......23 Using the gas cooktop with a BORA cooktop extractor ........ 23 www.bora.com... -
Page 4: General
General General INFO BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred Target group to as BORA - shall not assume any liability for damage caused by non-compliance with these... - Page 5 CAUTION Indicates a possible hazard- ous situation which can cause minor injury if not respected. — CAUTION Indicates a situation which can cause minor injury if not respected. Tab. 1.2: Meaning of the warning symbols and signal words www.bora.com...
-
Page 6: Safety
Ensure a normal and comfortable indoor climate Always lift (do not drag!) the cookware to prevent (45-60% humidity), e.g. through natural ventilation scratching and abrasion on the surface. openings or domestic ventilation systems. www.bora.com... -
Page 7: Safety Instructions, Operation
60°C first. Touching hot surfaces can lead to serious burns. Do not touch the hot cooktop. Keep children away from the hot cooktop unless they are under constant supervision. www.bora.com... -
Page 8: Safety Instructions, Assembly
Work on electrical parts may only be carried out by trained electrical personnel. Work on the gas connection may only be carried out by an authorised gas fitter in accordance with legal applicable regulations. Comply with local regulations of the utility companies. www.bora.com... -
Page 9: Safety Instructions, Spare Parts
Store packaging materials away from the intended, as is using it beyond the purpose described here. reach of children. Dispose of packaging correctly and BORA shall not assume any liability for damages caused by promptly. improper use or incorrect operation. All misuse is prohibited! -
Page 10: Technical Data
G 20 - natural gas 20 mbar Qn natural gas 3.9 kW Qn liquid gas 276 g/h (G 30) 271 g/h (G 31) Cooktop energy consump- tion Front high-power burner 2800-2900W 69.0% Tab. 3.1: Technical data Device dimensions Fig. 3.1 Device dimensions www.bora.com... -
Page 11: Device Description
Minimum pan diameter pan diameter Normal burner 100-140 mm 100 mm Fig. 4.2 Operating panel High-power 200-220 mm 200 mm burner Control knob for the back hob Tab. 4.1: Pan diameters Power display Control knob for the front hob www.bora.com... -
Page 12: Power Levels
The gas burners are equipped with a safety thermocouple. This thermocouple monitors the burner flame when the gas supply is active. If the burner flame goes out unintentionally, the appliance interrupts the gas supply. The appliance does not automatically ignite the burner. www.bora.com... -
Page 13: Installation
Check the scope of delivery for damage and make sure it is complete (see Tab. 5.1). If there are any missing or damaged parts, please notify BORA Customer Services. Do not under any circumstances install parts which are damaged. Dispose of transport packaging in the proper manner (see Decommissioning and Disposal chapter). -
Page 14: Cut-Out Dimensions
Fig. 5.4 Surface installation Fig. 5.2 Flush installation Fig. 5.5 Surface mounting cut Cut-out dimensions when installing cooktops or cooktops and the BORA cooktop extractor next to each other: Cooktops / cooktop extractor A in mm B in mm Fig. 5.3 Flush installation cut... -
Page 15: Installing The Cooktop
Fig. 5.9 Built-in cooktop with cooktop extractor Insert the cooktop [1] next to the cooktop extractor [2] already installed in the centre. INFO The cooktop [1] rests on the lateral bar of the cooktop extractor [2] and is thereby stabilised. www.bora.com... -
Page 16: Power Connection
[2]. Tighten the mounting bracket screws [1] with max. 10 Nm. Verify that the alignment is correct. Seal the devices with black heat-resistant silicone sealing compound after the installation work is com- pleted. www.bora.com... -
Page 17: Gas Installation
Check the gas type and gas pressure of the gas supply Regulations of the Vereinigung pipe. Kantonaler Feuerversicherungen (VKF) Ensure that the appliance is equipped with the correct nozzle type in order to guarantee a correct burner flame and safe operation. Remove the protective cap from the connection tube. www.bora.com... -
Page 18: Additional Installation Notes For Australia And New Zealand (Aus/Nzs)
Check the extended scope of delivery Note the gas flow direction of the gas regulator [3]. Name Quantity Gas regulator with test point for natural gas (NG) Test point adapter for liquid gas (LPG) Tab. 6.3: Extended scope of delivery for AUS/NSZ www.bora.com... -
Page 19: Leak Test Of The Gas Connection
Close the gas supply after successfully setting the pressure. Set the control knob to the 0 position. Shut off the measuring device from the test point. Securely screw the test point screw back into the test point adapter. Check that the screw is positioned correctly. www.bora.com... -
Page 20: Changing The Gas Type
Remove the control knob by pulling it upwards. Turn the throttling screw until it stops. Put the control knob back on. Ensure that the flame does not go out when changing between the maximum and minimum setting on the gas burner. www.bora.com... -
Page 21: Handover To User
(liquid gas) NG pressure (position) 1/100mm (MJ/n) (natural gas) (kPa) 2.75 Back 10.4 butane 2.75 Back 10.4 propane 01:00 Back 12.0 natural gas 2.75 Front butane 2.75 Front propane 01:00 Front natural gas Tab. 6.5: Australia/New Zealand nozzle table www.bora.com... -
Page 22: Operation
Adjusting the power level This thermocouple detects if the flame has gone out and switches off the gas supply. Turn the control knob to set the respective power No more gas will flow. level. Fig. 7.1 Push and pull control knob www.bora.com... -
Page 23: Correct Use Of The Gas Hob
(small flame). Centrally position the cookware on the gas hob. Using the gas cooktop with a BORA cooktop extractor INFO The cooktop should only be operated if the cover plate for its extractor is attached in the correct position on the extractor frame and can function as an air baffle. -
Page 24: Cleaning And Maintenance
Do not push or pull cookware across the cooktop. Always lift pots and pans. Keep the cooktop clean. Remove any kind of soiling immediately. Only use cookware which is suitable for glass ceramic cooktops (see the Device description chapter). www.bora.com... -
Page 25: Cleaning Of The Gas Burners
Make sure that the safety thermocouple and the elec- trical ignition device are positioned in the correct opening. Put the burner cover [1] straightly and evenly on the burner head [2]. The electrical ignition will not work if burner parts are not put back in place correctly. www.bora.com... -
Page 26: Troubleshooting
Dirt in the gas outlet openings on the Clean the gas burner parts gas burner head. (see the Cleaning chapter). Tab. 9.1: Resolving a fault In all other instances, call BORA After Sales Service (see the Warranty, After Sales and Spare parts chapter). www.bora.com... -
Page 27: Decommissioning, Disassembly And Disposal
Remove the old appliance and dirty accessory as Therefore do not dispose of your old appliance as described under 9.3. household waste. Take the old appliance to a regional collection centre for return and recycling of electronic and electrical parts and other materials. www.bora.com... -
Page 28: Warranty, After Sales Service And Spare Parts
11.3 Spare parts Only use original spare parts when making repairs. INFO Spare parts can be obtained from your BORA dealer, the BORA online service website at www.bora.com/service or by calling the service number provided. -
Page 29: Notes
Notes: 12 Notes: www.bora.com... - Page 30 Notes: www.bora.com...
- Page 32 F +49 (0) 8035 / 907-249 F +61 297 /124 131 info@bora.com info@boraapac.com.au www.bora.com www.boraapac.com.au Austria: BORA Vertriebs GmbH & Co KG Prof.-Dr.-Anton-Kathrein-Straße 3 6342 Niederndorf Österreich T +43 (0) 5373 / 62250-0 F +43 (0) 5373 / 62250-90 mail@bora.com www.bora.com...
