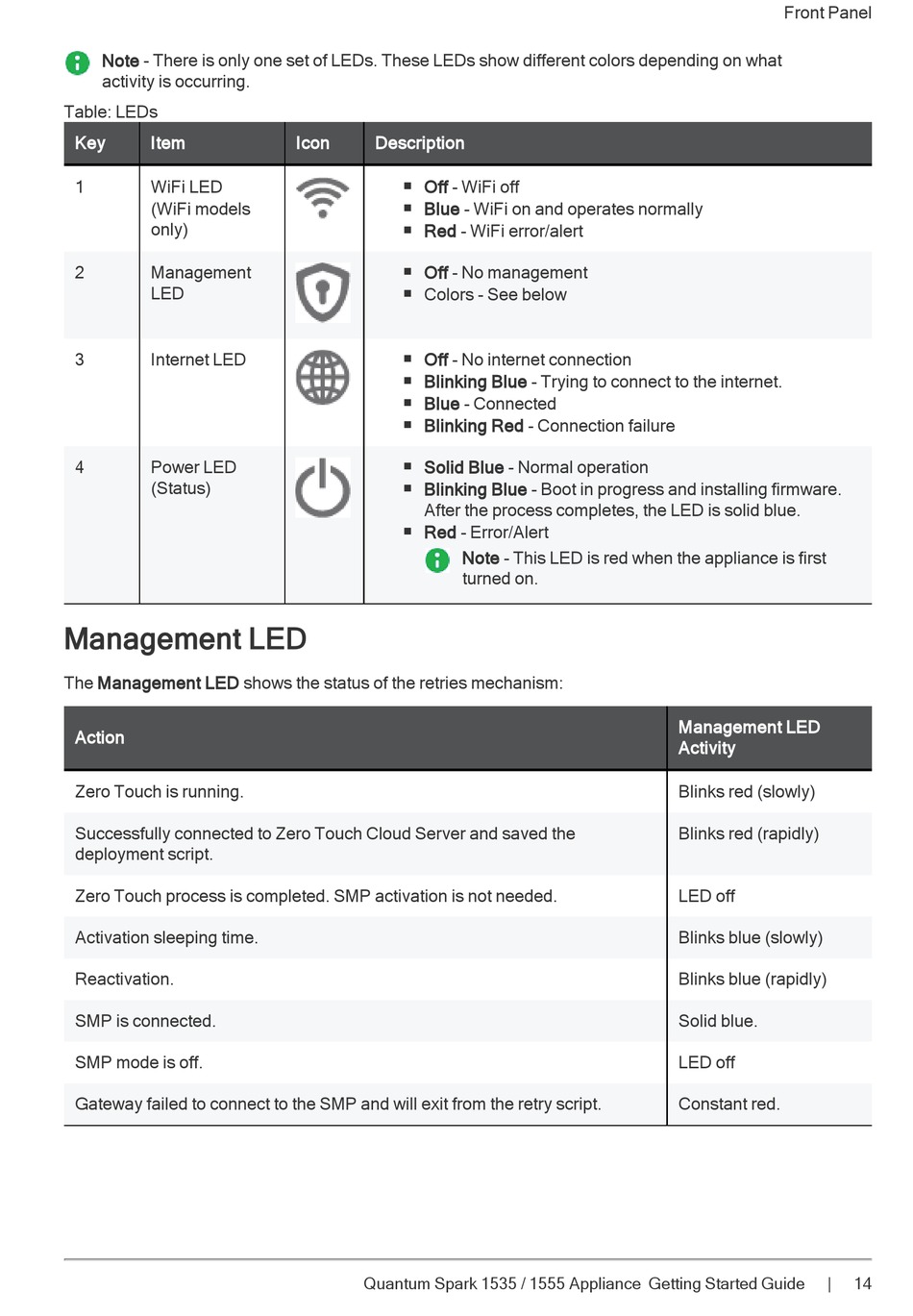

Management Led - Check Point QUANTUM SPARK 1535 Getting Started Manual

Note - There is only one set of LEDs. These LEDs show different colors depending on what
activity is occurring.
Table: LEDs
Key Item
1 WiFi LED
(WiFi models
only)
2 Management
LED
3 Internet LED
4 Power LED
(Status)

Management LED

The Management LED shows the status of the retries mechanism:
Action
Zero Touch is running.
Successfully connected to Zero Touch Cloud Server and saved the
deployment script.
Zero Touch process is completed. SMP activation is not needed.
Activation sleeping time.
Reactivation.
SMP is connected.
SMP mode is off.
Gateway failed to connect to the SMP and will exit from the retry script.
Icon Description
Off - WiFi off
n
Blue - WiFi on and operates normally
n
Red - WiFi error/alert
n
Off - No management
n
Colors - See below
n
n Off - No internet connection
n Blinking Blue - Trying to connect to the internet.
Blue - Connected
n
Blinking Red - Connection failure
n
n Solid Blue - Normal operation
n Blinking Blue - Boot in progress and installing firmware.
After the process completes, the LED is solid blue.
Red - Error/Alert
n
Note - This LED is red when the appliance is first
turned on.
Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 14
Front Panel
Management LED
Activity
Blinks red (slowly)
Blinks red (rapidly)
LED off
Blinks blue (slowly)
Blinks blue (rapidly)
Solid blue.
LED off
Constant red.
