Summary of Contents for Dnake TWK01

  • Page 1 User Manual ——— DNAKE TWK01...
  • Page 3 REMARK Please follow the user manual for correct installation and testing. If there is any doubt please call our tech-supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra notice for any change. The illustration shown here is only for reference. If there is any difference, please take the actual product as the standard.

  • Page 4: Table Of Contents

    CATALOG PRODUCT FEATURE ..........1 TECHNICAL PARAMETER ........1 PACKAGE CONTENT ..........2 OVERVIEW ............3 BASIC OPERATION ..........5 DEVICE SETTINGS ..........11 SYSTEM DIAGRAM ..........22 DEVICE WIRING ..........23 INSTALLATION ............ 24 TROUBLESHOOTING .......... 28 SAFETY INSTRUCTION ........29...

  • Page 5: Product Feature

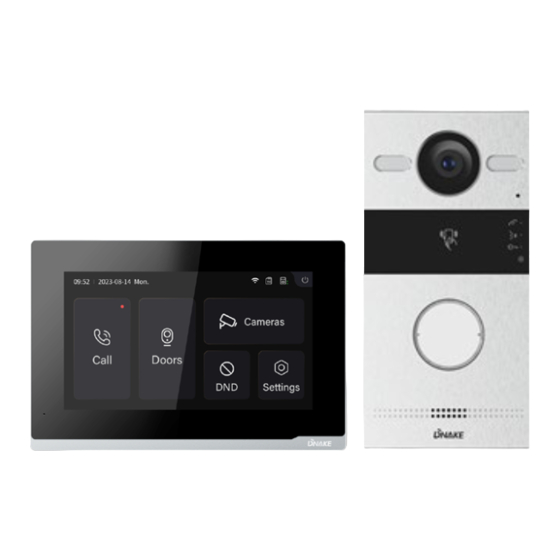

    PRODUCT FEATURE 1. Plug & Play 2. Quick Start Wizard 3. Wi-Fi connection 4. One-touch calling 5. Remote unlocking 6. CCTV integration TECHNICAL PARAMETER Indoor Monitor E217W-2 Power Supply: DC 24V Standby Power: 5 W Rated Power: 9.5 W Display: 7-inch TFT LCD Screen: Capacitive touchscreen Resolution: 1024 x 600 Working Temperature: -10℃...

  • Page 6: Package Content

    PACKAGE CONTENT MODEL: TWK01 E217W-2 Wiring Cover PM4×20 (2 pcs) Wires Power supply Sealing Plug of S212-2 Wiring Cover Junction Pressing PM2.5×6 (4 pcs) Wiring Port Screw Fixing Seat Rear Cover PA4×30 (2 pcs) PM4×20 (2 pcs) FM3×4.5 (2 pcs)

  • Page 7: Overview

    OVERVIEW...
  • Page 8 Note: Calling indicator light: The 1st indicator light will activate if the call button is pressed. Talking indicator light: The 2nd indicator light will activate if the call is picked up or the Door Station is being actively monitored. Unlocking indicator light: The 3rd indicator light activates for 3 seconds when the door is unlocked.

  • Page 9: Basic Operation

    BASIC OPERATION 1. Onboarding 1.1. Language 1/3 Language is the first setting. We have 16 kinds of languages (Chinese Simplified, Chinese Traditional, English, Spanish, German, Polish, Russian, Turkish, Hebrew, Arabic, Portuguese, French, Italian, Slovak, Vietnamese, and Dutch) for customers to choose from. 1.2.
  • Page 10 Door Station should be connected to the Indoor Monitor’s when Indoor Monitor is searching Door Station. Select Door Station and MAC of Door Station will appear. Click MAC of Door Station to Sync. Then the settings are completed. 2. Call Indoor Monitor by Door Station 2.1.
  • Page 11 3. Monitor Door Station on Indoor Monitor 3.1. Monitor Door Station on Indoor Monitor 1. Press Doors on Indoor Monitor to monitor Door Station. 4. Add Subordinate Indoor Monitor 4.1. Add subordinate Indoor Monitor 1. After having added first Indoor Monitor successfully, resident can add subordinate Indoor Monitors to it.
  • Page 12 Step 3: Choose Sub Indoor Monitor. Step 4: MAC of first Indoor Monitor will appear. Click MAC of first Indoor Monitor to Sync.
  • Page 13 5. IP Cameras Monitoring 5.1. IP cameras monitoring 1. Connect the Ethernet cable to both IP Camera and Indoor Monitor. Please keep them under the same LAN. 2. Add IP Camera to the Indoor Monitor on the device: Step 1: You can click Cameras to enter the page about IP cameras. Step 2: Name IP camera and type in URL after clicking “+”...
  • Page 14 6. DND Click DND icon to enable do not disturb function. No calls can call in. Users can set DND to turn on whole day or a period of time. The settings of DND you can find on Settings > DND page.

  • Page 15: Device Settings

    DEVICE SETTINGS 1. General 1.1. Display Brightness: Screen brightness adjustment; Sleep Time: Screen sleep time (15s, 30s, 1min, 2mins, 5mins, 20mins, 30mins); 1.2. Intercom System Vol: Volume of System can be set from 1 to 6. Volume 6 is the maximum volume (Key tone); Intercom Vol: Volume of Intercom can be set from 1 to 6.
  • Page 16 Auto Answer: Pick up automatically when receiving a call; Hang Up After Unlocking: Hang up automatically after unlocking doors. 1.3 Date & Time Auto: Enable to synchronize computer time; Date&Time: Date and time can be set manually; Time Zone: A region that observes a uniform standard time; Date Format: 3 time formats supported (YYYY-MM-DD, DD- MM-YYYY, MM-DD-YYYY);...
  • Page 17 2. Network WiFi: Enable WiFi to connect network; SSID: Choose the network to connect; Mask: Subnet mask; Status: The Status of WiFi, connected or disconnect; WiFi IP: The WiFi IP of the device connect; 2-wire IP: The main Indoor Monitor’s IP address is 192.168.68.81;...
  • Page 18 4.1. Upgarde and Reset You can upgrade and reset Door Station on this page by clicking the arrow icon (Upgrade) and circle icon (Reset). Upgrade method: Put the FW on a folder named “doorUpgrade” on TF card, then click arrow icon here. 4.2.
  • Page 19 Delete all other cards: Tap your Master card five times. All the other cards will be deleted. Please note that Master card can only be used to manage cards. It cannot be used to open the door. 5. System 5.1. Version You can upgrade and Indoor Monitor on this page.
  • Page 20 5.2.2. Register, log in Open the Smart Life app and tap Sign Up. In the User Agreement and Privacy Policy dialog box, carefully read the privacy policy and agreement and tap Agree to go to the account registration page. Enter resident's email address and tap Get Verification Code. The country or region on the registration page is the same as that resident set in the mobile phone.
  • Page 21 5.2.3. Scan QR code 1. License of Smart Life app will be filled in Indoor Monitor before delivery. Step 1: Go to Settings > System page. Step 2: Select the QR code. Step 3: Scan QR code. One QR code can only be bound to one phone but resident can share resident's authority to its family members up to 20 users.
  • Page 22 the call and unlock remotely. Smart Life App can also monitor and unlock Door Station. Switch to full screen Take a screenshot Record a video Expand more Messages Features (Gallery, Theme Color, Lock, Edit) Gallery Theme Color（Light Mode & Dark Mode） Lock remotely Edit (Button Management) a) Rename devices...
  • Page 23 2. After the device is added, resident can customize the device name. The following steps and pictures are here for reference. Step 1: Back to the home page and click the device to rename. Step 2: Click Edit in the upper right corner. Step 3: Select the icon.
  • Page 24 6. More 6.1 Device This page is about some parameters about Indoor monitor. (The default password is 123456.) 6.2 Password...
  • Page 25 Old Password: Current administrator password of the Device (Default 123456); New Password: New administrator password of the Device; Confirm Password: Confirm administrator password of the Device; 6.3 Reset Reset: Reset to factory default;...

  • Page 26: System Diagram

    SYSTEM DIAGRAM...

  • Page 27: Device Wiring

    DEVICE WIRING E217W-2 S212-2 1. Power Power interface of Indoor Monitor connects with 24V 2-wire adapter. E217W-2 S212-2 2. Switching Value Output (S212-2) Connect to the lock module (an independent power supply is necessary for the lock).

  • Page 28: Installation

    INSTALLATION Surface Mounting-86 Mounting Box Product size: 195 × 130 × 14.5 mm...
  • Page 29 Installation of Wiring Cover...
  • Page 30 Surface Mounting-86 Mounting Box Product size: 88 × 168 × 32.5 mm Surface Mounting size: 88 × 168 × 34...
  • Page 31 Surface Mounting-118 Mounting Box Product size: 88 × 168 × 32.5 mm Surface Mounting size: 88 × 168 × 34 Tips: The camera should be 1450~1550mm above the ground. The camera at this height can capture human face perfectly.

  • Page 32: Troubleshooting

    TROUBLESHOOTING The Indoor Monitor cannot start up or power off automatically. Check whether it has power-failure, and power it on again  The Indoor Monitor display screen is too dim. Check whether the brightness and contrast settings of screen are correct. ...

  • Page 33: Safety Instruction

    SAFETY INSTRUCTION In order to protect you and others from harm or your device from damage, please read the following information before using the device. Do not install the device in the following places:  Do not install the device in high-temperature and moist environment or the area close to ...
  • Page 34 FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 35 RF exposure statement This equipment complies with the FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 37 V1.0 EASY SMART INTERCOM SOLUTIONS...
