ICP DAS USA ET-2260 Quick Start Manual

Hide thumbs Also See for ET-2260:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
1
1
1
W
h
a
W
h
a

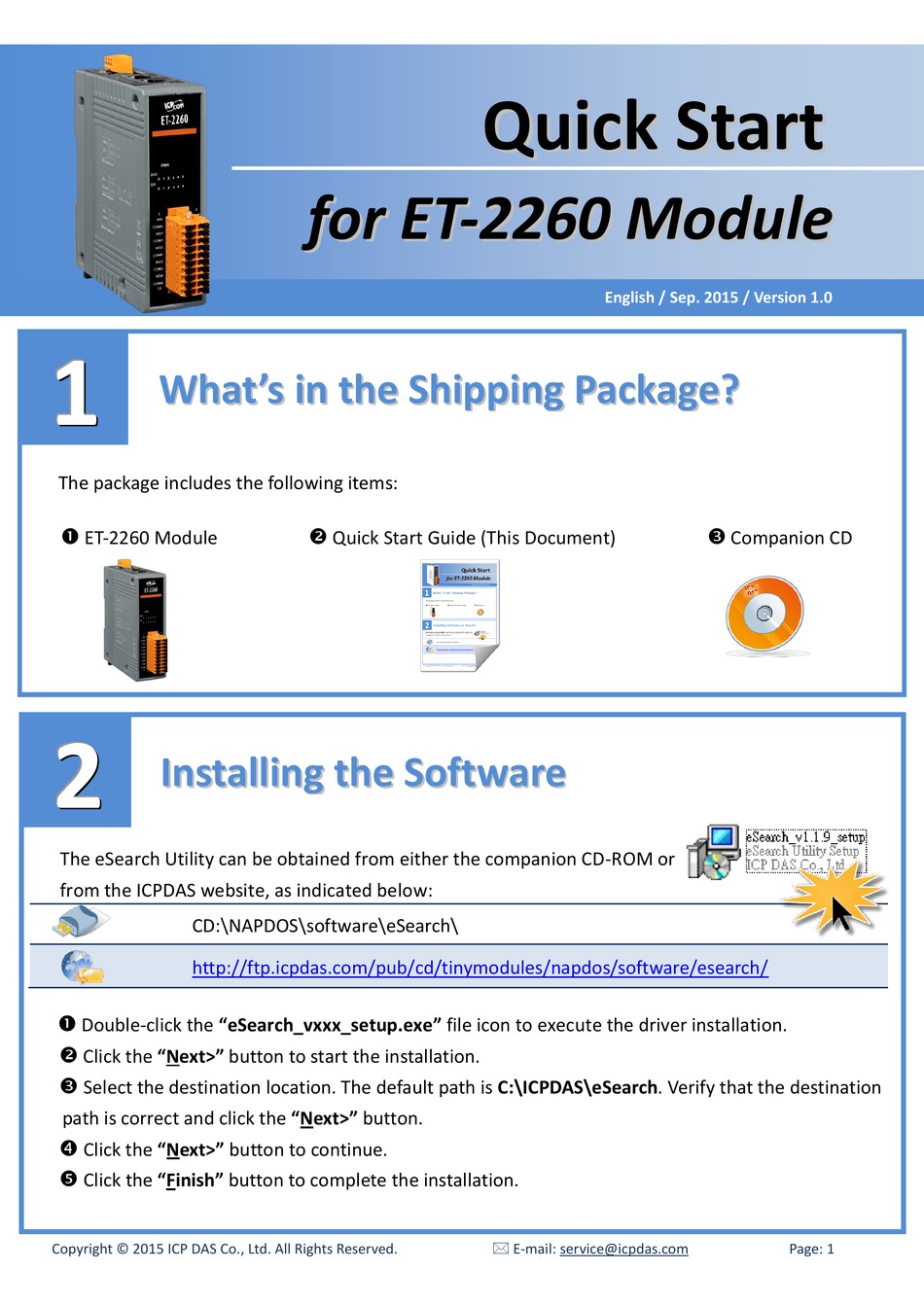

The package includes the following items:

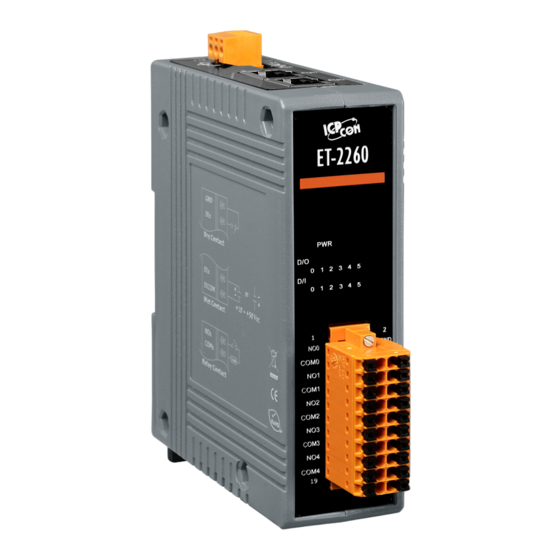

ET-2260 Module
