What's in the box?
The package includes the following items:
ET-2260 Module x 1
Related Information
ET-2200 Series Product Page:
Documentation & Firmware:
NS-205/MDR-20-24 Product Page (optional):
Technical support:

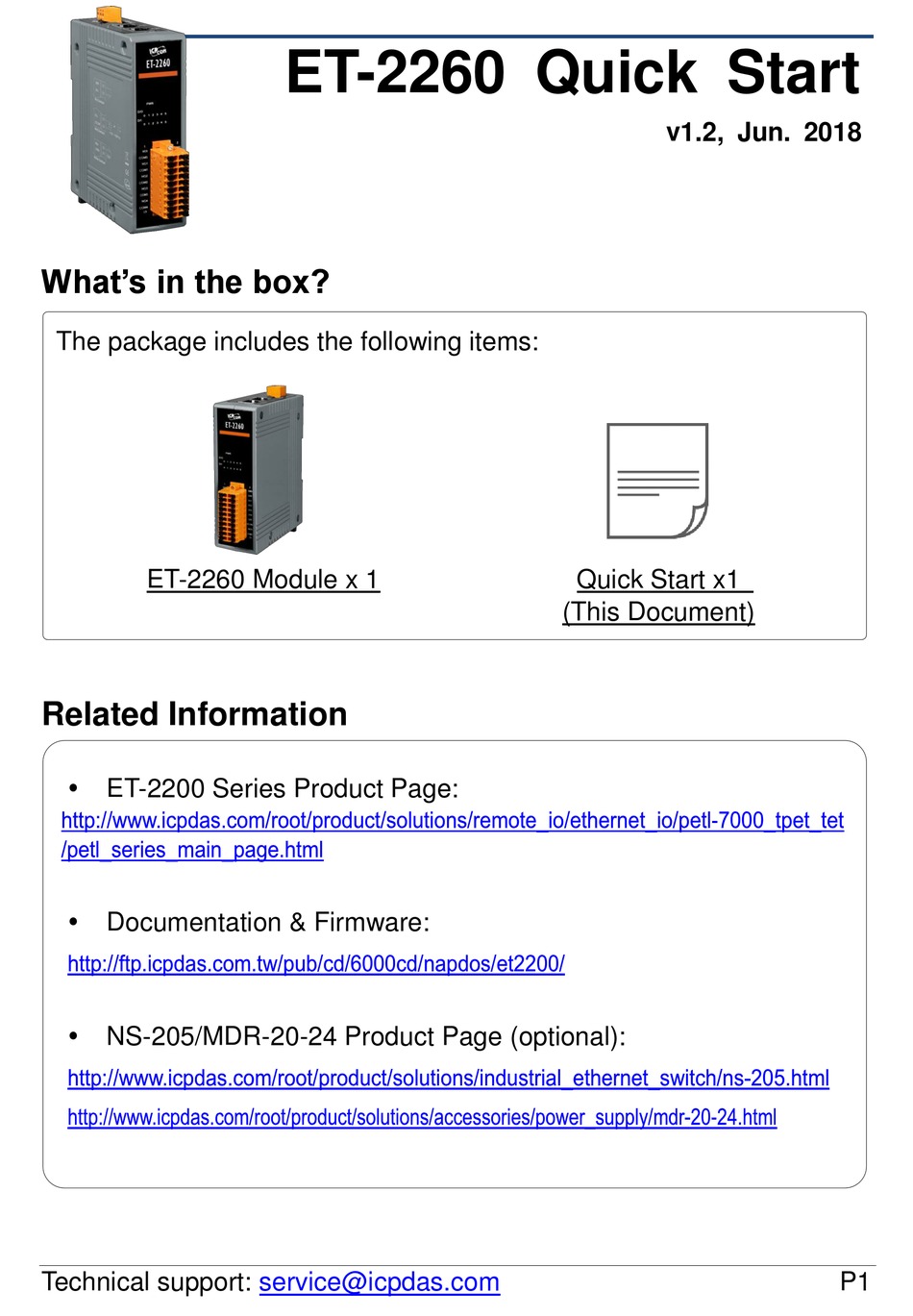

ET-2260 Quick Start
service@icpdas.com
v1.2, Jun. 2018
Quick Start x1
(This Document)
P1
Advertisement
Related Manuals for ICP DAS USA ET-2260
Summary of Contents for ICP DAS USA ET-2260
- Page 1 ET-2260 Quick Start v1.2, Jun. 2018 What’s in the box? The package includes the following items: ET-2260 Module x 1 Quick Start x1 (This Document) Related Information ET-2200 Series Product Page: Documentation & Firmware: NS-205/MDR-20-24 Product Page (optional): Technical support: service@icpdas.com...
- Page 2 Disable or well configure your Windows firewall and Anti-Virus firewall first, else the “Search Servers” on Chapter 5 may not work. (Please contact with your system Administrator) Connect both the ET-2260 and your PC to the same sub network or the same Ethernet switch. Supply power (+10~+30 V ) to the ET-2260.
- Page 3 Pin Assignments & Wiring Note Pin Assignments: Wire Connections: Digital Input/ Readback as 1 Readback as 0 Power Relay Readback as 1 Counter Close to GND Open COMx To other channels Relay Close +S5 V +S5 V ON State AC/DC Contact LOAD...
- Page 4 Wiring the DI and DO for Self-test A tip for connecting the wire to the connector A tip for removing the wire from the connector 1) Connect the NO0 pin (Pin01) to the GND pin (Pin02). 2) Connect the COM0 pin (Pin03) to the DI0 pin (Pin04). NO0 01 02 GND COM0 02...
-
Page 5: Modbus Address
Modbus Address (0xxxx) DO address: Bits Begin Access Points Description Range address Type Point 0 (0x0) Digital Output Channels 0: OFF, 1: ON Clears the status of all high 32 (0x20) 1: Clear latched DI channels Clears the status of all low 33 (0x21) 1: Clear latched DI channels... -
Page 6: Configuring Network Settings
Subnet Mask 255.255.0.0 Gateway 192.168.0.1 4) Contact your Network Administrator to obtain a correct network configuration (such as IP/Mask/Gateway). Enter the network settings and click “OK”. Note: The ET-2260 will use the new settings 2 seconds later. Technical support: service@icpdas.com... - Page 7 ET-2260 is working well with new configuration. 2) Click the name of ET-2260 to select it. 3) Click the “Web” button to log in to the web configuration pages. (Or enter the URL address of the ET-2260 in the address bar of the browser.) ...
- Page 8 5) In the “Home” page allows a simple test to be performed to verify the Digital Input and Output functionality. 6) In the “Digital I/O” section, click the “DO0” button to ON (Red). 7) The corresponding DI becomes green for DI0 is ON. ...
