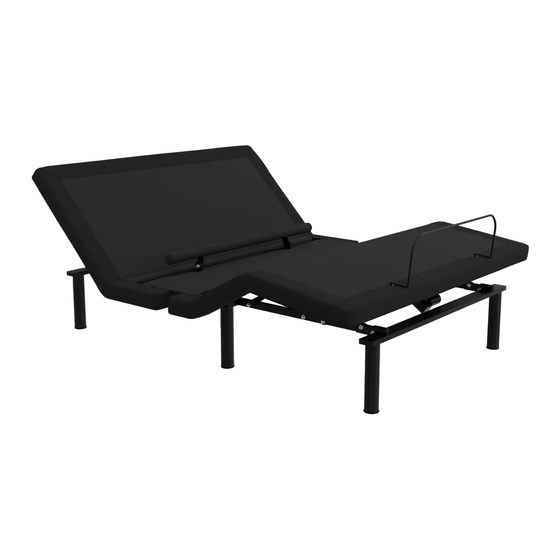

Ergomotion Rio 5.0 Owner's Manual

Adjustable base
Hide thumbs Also See for Rio 5.0:
Table of Contents

Advertisement

Quick Links

Download this manual
Rio 5.0
ADJUSTABLE BASE | OWNER'S MANUAL
Customer Service : 1-888-550-3746

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rio 5.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Ergomotion Rio 5.0

Summary of Contents for Ergomotion Rio 5.0

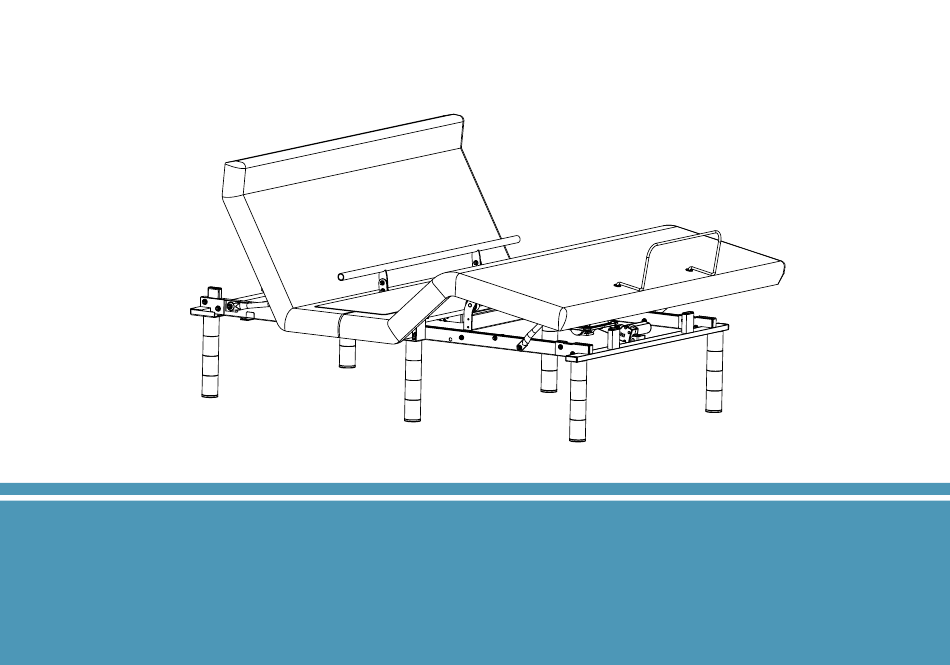

  • Page 1 Rio 5.0 ADJUSTABLE BASE | OWNER’S MANUAL Customer Service : 1-888-550-3746...

  • Page 2: Table Of Contents

    Table of contents Safety Precautions and Usage Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Parts List .

  • Page 3: Safety Precautions And Usage Statements

    Safety precautions and usage statements Attention: Important Safety Disclaimers Read the following information before using this product. Failure to use a surge protection device could compromise safety or cause product malfunction and could void the electrical portion of your warranty. TO REDUCE THE RISK OF SHOCK, BURNS, FIRE OR INJURY: Emergency stop –...
  • Page 4 Adjustable foundation is to be operated with a mattress and load. All Ergomotion adjustable foundations, depending on make and model, are designed and manufactured to perform and function within designated quality control parameters. Bases are subject to meticulous and rigorous inspections during noise.
  • Page 5 Safety precautions and usage statements adjustable bed through activities such as reading, watching TV or playing WEIGHT LIMITS: with the kids or grandkids. The extra movement will help the adjustable base This product is not rated to support weights in excess of 750 pounds. The respond to weight and temperature changes.

  • Page 6: Parts List

    Parts list Before discarding the packing materials - ensure all the parts are accounted for. All electronics and components that need to be installed are located in boxes under the base or attached to the frame. Wireless Remote Control (1) Mattress Retainer Bar (1)* Legs (6) Power Cord (1)

  • Page 7: Base And Remote Overview

    Base and remote overview Control Lumbar Massage Head Motor Motor Motor Massage Timer/ALL OFF USB Ports USB Ports Increase & decrease the Increase & decrease the head massage intensity foot massage intensity Anti-snore Preset Underbed Underbed Lumbar Motor Adjustment Lighting Lighting Zero-G®...

  • Page 8: Quick Reference Guide

    Quick reference guide Not to scale. For illustration purposes only. Read all instructions before beginning installation. ELECTRONICS OVERVIEW Massage Motors Battery Backup Strap Remote Control Control Box Head Motor Foot Motor Head Tilt Motor USB Ports Input Cable Power Cord Power Supply Underbed Lighting If installing a split unit, see pages 13-14.

  • Page 9: Installation Guide

    Uncoil the power cord and connect to the power supply. Place power supply on the ground and extend from the base. Ensure that the power supply and all attached cords are directed toward the desired surge protector. For customer support, visit www.ergomotion.com or call: 1-888-550-3746...
  • Page 10 Ensure batteries are correctly installed in the back of the remote. Quickly test functions to verify proper setup before placing mattress on base. Return the base to a flat position before placing the mattress on top. For customer support, visit www.ergomotion.com or call: 1-888-550-3746...

  • Page 11: Bluetooth Setup

    Bluetooth Setup To operate the base from a smart device, the “Ergomotion Sync” application must be downloaded to the desired smart device from the App Store (Apple) or Google Play Store (Android). STEP 1 STEP 3 Click OK when prompted to allow...

  • Page 12: Remote Control

    Remote control Remote Control arrives paired to the adjustable base. Three (3) AAA batteries are required to operate the remote. REMOTE FUNCTIONS A. Head Massage: Cycle through 3 head massage intensities (Low > Medium > High > Off) After 10 minutes, massage timer will automatically turn off.
  • Page 13 Remote control PRESET PROGRAMMING CHILD LOCK STEP 1 ACTIVATE CHILD LOCK: Articulate the head and foot to your desired position. Press and hold FLAT and HEAD UP buttons for 3 seconds. When the backlight on the STEP 2 remote flashes 2 times, that means the lock •...

  • Page 14: Remote Control Pairing

    LED light on the control box will stop illuminating. Release the PAIR button on the remote. STEP 3 Test all remote functions. If the remote buttons do not impact the adjustable base movements, please repeat the process again or call Ergomotion customer service: 1-888-550-3746...

  • Page 15: Connecting Strap

    Connecting strap (optional) If a split setup is being installed, optional plastic connecting straps can be used to help secure the bases together. To purchase optional accessories, please call 1-888-550-3746. STEP 1 STEP 3 With the bases in their desired location, Re-tighten legs.

  • Page 16: Syncing Two Bases

    Syncing two bases (optional) A Sync Cord is included with the base. Not available on Queen, Full or Full-Long size bases. The Sync Cord connects the two control boxes to a single remote for the synchronization of two bases. This process is most commonly used for syncing two connected TXL bases. STEP 1 Unplug the base(s) from power source.

  • Page 17: Headboard Brackets

    Headboard bracket installation guide (optional) Headboard Brackets are an optional accessory and are not included. A hex key is included with the accessory kit to complete installation. STEP 1 STEP 2 a. Measure the distance between the mounting holes on the headboard a.

  • Page 18: Emergency Battery Backup Strap

    Battery backup strap (optional) For emergency use only, in case of a power outage. Batteries are not to be used for normal operation of the bed. STEP 1 STEP 3 Disconnect the Power Supply from the input power cord. Connect the Battery Backup Strap to the (2) Alkaline 9 Volt batteries. Do not mix brand name Batteries.

  • Page 19: Troubleshooting

    Troubleshooting If one or more functions on the bed base have stopped operating: • Check under the bed base to verify that the wired connections are secure and that there are no cords or bedding obstructing the movement of the base . •...
  • Page 20 Nationwide Customer Service ©2023 Ergomotion Inc V002_04/2023 Phone 1 .888 .550 .3746 Email info@ergomotion.com www.ergomotion.com Serial Number:...
