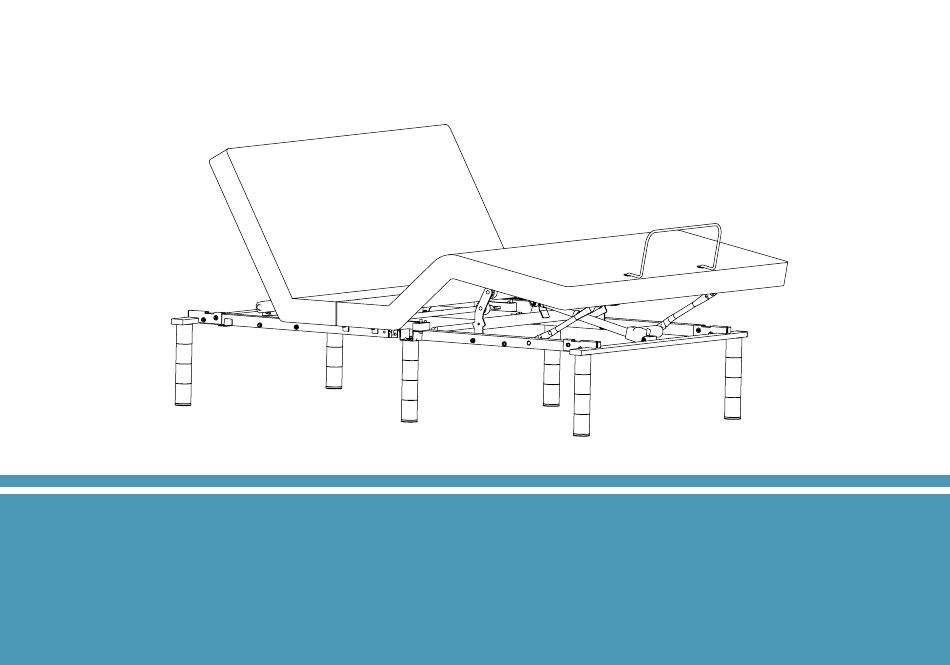

- Page 1 Rio 4.0 ADJUSTABLE BASE | OWNER’S MANUAL Customer Service : 1-888-550-3746...
-
Page 2: Table Of Contents
Table of contents Safety Precautions and Usage Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Parts List . -
Page 3: Safety Precautions And Usage Statements
Safety precautions and usage statements Attention: Important Safety Disclaimers Read the following information before using this product. Failure to use a surge protection device could compromise safety or cause product malfunction and could void the electrical portion of your warranty. TO REDUCE THE RISK OF SHOCK, BURNS, FIRE OR INJURY: on the Remote Control page(s) and on the back of your remote control. - Page 4 ± 3°, which All Ergomotion adjustable foundations, depending on make and model, are designed and manufactured to perform and function within designated quality control parameters. Bases are subject to meticulous and rigorous inspections during the quality control process to ensure bases will operate within these standards during normal operating use.
- Page 5 Safety precautions and usage statements 1.5 seconds between each bases articulation. WEAR AND TEAR: Wear and tear is damage that naturally and inevitably occurs as a result of normal use or aging. FABRIC CARE: To prolong the life of your fabric, protect from direct sunlight whenever possible.
-
Page 6: Parts List
Parts list Before discarding the packing materials - ensure all the parts are accounted for. All electronics and components that need to be installed are located in boxes under the base or attached to the frame. Wireless Remote Control Mattress Retainer Bar * Legs (6) Power Cord ‡... -
Page 7: Base Overview
Base and remote overview Head Massage Head Motor Motor Massage Timer/ALL OFF USB Ports USB Ports Control Increase & decrease the Increase & decrease the foot massage intensity head massage intensity Underbed Lighting On/Off Lifts & lowers the Underbed Underbed Lifts &... -
Page 8: Quick Reference Guide
Quick reference guide Not to scale. For illustration purposes only. Read all instructions before beginning installation. ELECTRONICS OVERVIEW Remote Emergency Battery Backup Strap Underbed Lighting Massage Motors Control Box Head Motor USB Ports Foot Motor Power Cord Power Supply Input Cable If installing a split unit, see pages 12-13. -
Page 9: Installation Guide
Uncoil the power cord and connect to the power supply. Place power supply on the ground and extend from the base. Ensure that the power supply and all attached cords are directed toward the desired surge protector. For customer support, visit www.ergomotion.com or call: 1-888-550-3746... - Page 10 Ensure batteries are correctly installed in the back of the remote. Quickly test functions to verify proper setup before placing mattress on base. Return the base to a flat position before placing the mattress on top. For customer support, visit www.ergomotion.com or call: 1-888-550-3746...
-
Page 11: Remote Control
Remote control Remote Control arrives paired to the adjustable base. Three (3) AAA batteries are required to operate the remote. REMOTE FUNCTIONS A. Head Massage: Cycle through 3 head massage intensities (Low > Medium > High > Off) After 10 minutes, massage timer will automatically turn off. - Page 12 Remote control PRESET PROGRAMMING CHILD LOCK ACTIVATE CHILD LOCK: STEP 1 Articulate the head and foot to your desired position. Press and hold FLAT and HEAD UP buttons for 3 seconds. When the backlight on the STEP 2 remote flashes 2 times, that means the lock •...
-
Page 13: Remote Control Pairing
LED light on the control box will stop illuminating. Release the PAIR button on the remote. STEP 3 Test all remote functions. If the remote buttons do not impact the adjustable base movements, please repeat the process again or call Ergomotion customer service: 1-888-550-3746... -
Page 14: Connecting Strap
Connecting strap (not included) If a split setup is being installed, optional plastic connecting straps can be used to help secure the bases together. To purchase optional accessories, please call 1-888-550-3746. STEP 1 STEP 3 With the bases in their desired location, Re-tighten legs. -
Page 15: Syncing Two Bases
Syncing two bases (optional) A Sync Cord is included with the base. Not available on Queen, Full or Full-Long size bases. The Sync Cord connects the two control boxes to a single remote for the synchronization of two bases. This process is most commonly used for syncing two connected TXL bases. STEP 1 Unplug the base(s) from power source. -
Page 16: Headboard Brackets (Not Included)
Headboard bracket installation guide (optional) Headboard Brackets are an optional accessory and are not included. A hex key is included with the accessory kit to complete installation. STEP 1 STEP 2 a. Measure the distance between the mounting holes on the headboard a. -
Page 17: Emergency Battery Backup Strap
Battery backup strap (optional) For emergency use only, in case of a power outage. Batteries are not to be used for normal operation of the bed. STEP 1 STEP 3 Disconnect the Power Supply from the input power cord. Connect the Battery Backup Strap to the (2) Alkaline 9 Volt batteries. Do not mix brand name Batteries. -
Page 18: Troubleshooting
Plug bed base into a different electrical outlet, or test current outlet with another working appliance (a grounded, electrical surge protector is recommended). If issue is not resolved by following the instructions above, locate serial number on warranty card or back of remote and call Ergomotion Customer Service: US 1-888-550-3746... - Page 19 Notes...
- Page 20 Nationwide Customer Service ©2022 Ergomotion Inc V001-R2_06/2022 Phone 1 .888 .550 .3746 Email info@ergomotion.com www.ergomotion.com Serial Number:...
