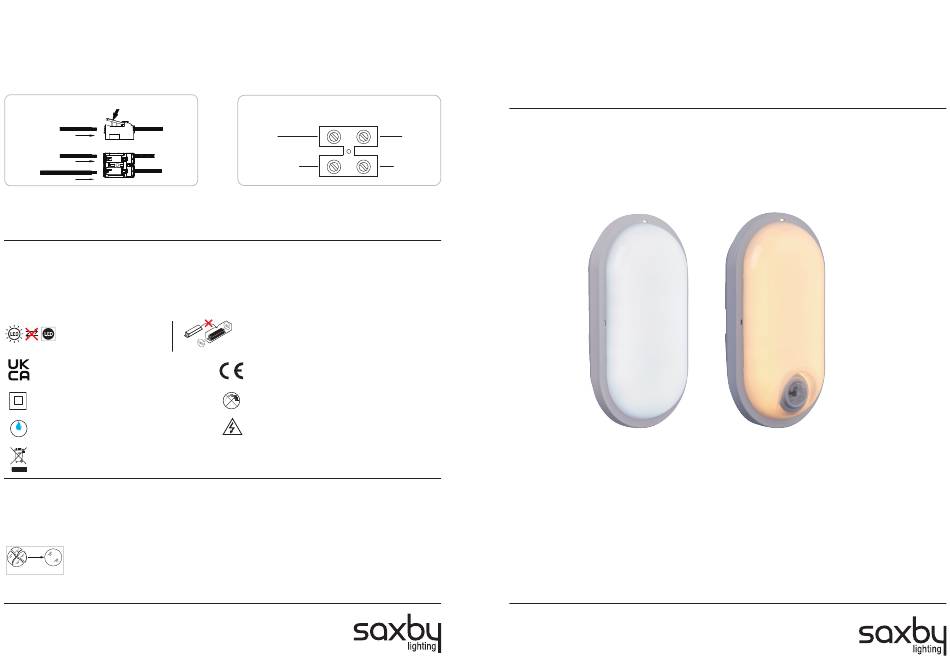

Saxby Lighting Pillo Plus CCT Instruction Manual

Wiring
Having correctly identified the wiring from your
existing light fitting, remove the existing cabel
from quick fit block then pull the mains wire
through the hole and connect to the quick
fit connection block inside the product in the
following way:
Fig 1
SUPPLY
LIGHT FITTING
PUSH DOWN
INSERT CABLE
SWITCHED LIVE BROWN (L)
NEUTRAL
BLUE (N)
Check that...
You have correctly identified the wires. The connections are tight. No loose strands have been left out of the connection block.
Reseal the approved outdoor rated external terminal block
Technical data
Supply
220-240 V~, 50 Hz
Voltage:
Bulb
15W LED module (SMD) CCT, 3000/4000/6000K
Type:
Non-replaceable light source
Conformity with all relevant UKCA
Directive requirements.
The power supply is Double Insulated and does
not require connection to an Earth circuit.
This product is rated at IP65.
65
IP
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
Care and Safety
Live Voltages may be present in this unit even when turned off or when completely disconnected.
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
This LED's are protected by a PC shade. The shade part must be replaced immediately should it
become cracked or damaged. This fitting must not be used without the PC shade in place.
Replace Cracked Shade
For further information, please visit https://www.lighting-info.co.uk/108747
V1 13/09/2023
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Having correctly identified the wiring from your light fitting,
pull the wire through the hole and connect to the connection
block(not supplied) in the following way:
This unit is double insulated and must not be earthed. If there
are any incoming earth cables, they must be joined together
and well insulated with good quality insulation tape.
Fig 2
LIGHT FITTING
SUPPLY
NEUTRAL BLUE (N)
SWITCHED LIVE BROWN (L)
This product contains a light source of energy efficiency class E.
Non-replaceable control gear
Conformity with all relevant EC
Directive requirements.
This product is not suitable for dimming.
Caution! Risk of electric shock!
Instruction manual
Pillo Plus CCT
108747,108748
108747
www.saxbylighting.com
108748
