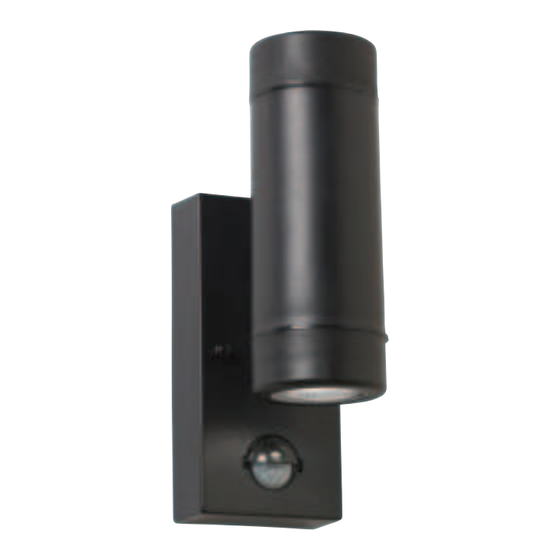

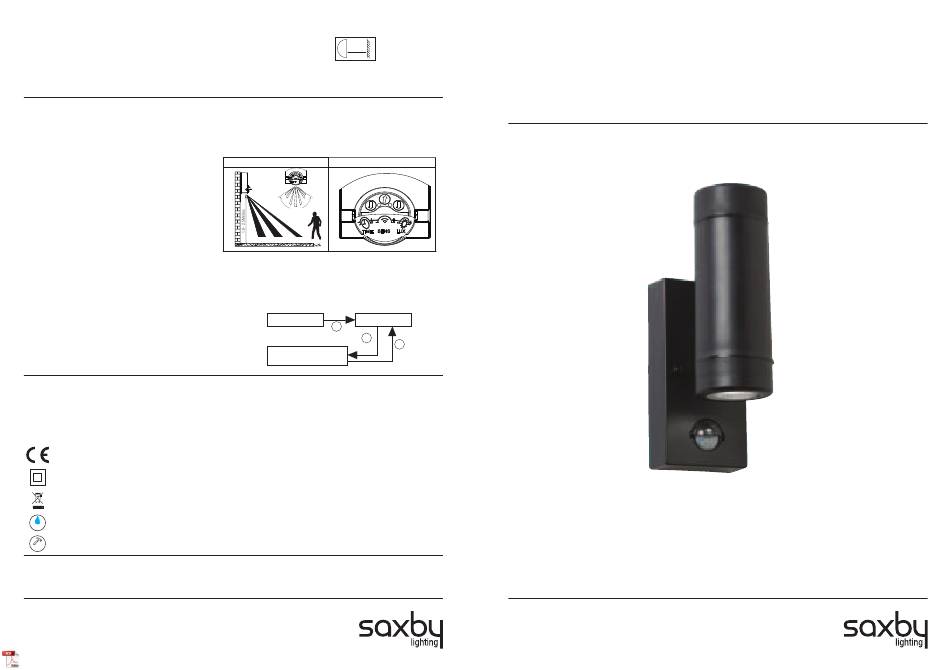

Saxby Lighting ICARUS PIR 2LT WALL Instruction Manual

Fitting/replacing bulbs: Max. 5W LED GU10
• This fitting has been designed to use energy efficient LED bulbs. Ensure that the minimum
distance to the illuminated surface is not less than 0.5m (50cm).
• When changing a bulb, always switch off at the mains and allow the bulb to cool before handling. Dispose of used bulbs
carefully. Do not exceed the wattage stated or use a different shape bulb from that indicated on the fitting. Use of the incorrect
bulb will damage the product and invalidate the guarantee.
PIR Adjustment
To access the adjustment screws flip down the black cover over the PIR sensor. Take great care when adjusting the
sensor screws not to over tighten as they can be easily broken.
• The unit must be installed in a vertical position, and fitted 1.8-2.5m above the ground.
• The PIR sensor can be adjusted, allowing the detection
distance to be altered to suit the location. The detection
angle is set at 110º. The duration that lamp stays on can
also be altered from 5 seconds - 5 minutes. The LUX
rang is 10-2000 lux. Use a small screwdriver to adjust
the "TIME" and "SENS" screws. When adjusting the
sensitivity (detection distance) in daylight it will be
necessary to cover the sensor to simulate night time.
The PIR sensor has a manual override function which can be operated by taking the following steps:
• When first switched on, the PIR sensor "warms up" for approx 1 minute and then goes into AUTO mode.
• In AUTO mode, switch the power OFF and ON twice within 3 seconds, the PIR sensor will switch to MANUAL mode.
In MANUAL mode, the light will remain ON permanently, without the PIR function.
• To return to AUTO mode, switch the power OFF and ON twice within
3 seconds.
• In either mode, if the power is switched OFF more than 6 seconds,
the PIR sensor will go through 'warm up' process again when you turn
it on next time.
Technical data
Supply
240 V~, 50 Hz
Voltage:
Bulb
2 x Max. 5W LED GU10
Type:
Conformity with all relevant EC Directive requirements.
The power supply is double insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is rated at IP44.
44
IP
This product is rated at IK05.
05
IK
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
V2 14/04/2021
Saxby Lighting. BH17 7BY
0.5m
Adjustable up to 8 metres PIR Adjustment
appro. 110º
4M 6M 8M
POWER ON AUTO MODE
1
2
3
MANUAL MODE
Instruction manual
ICARUS PIR 2LT WALL
81011
