Saxby Lighting Picco Instruction Manual

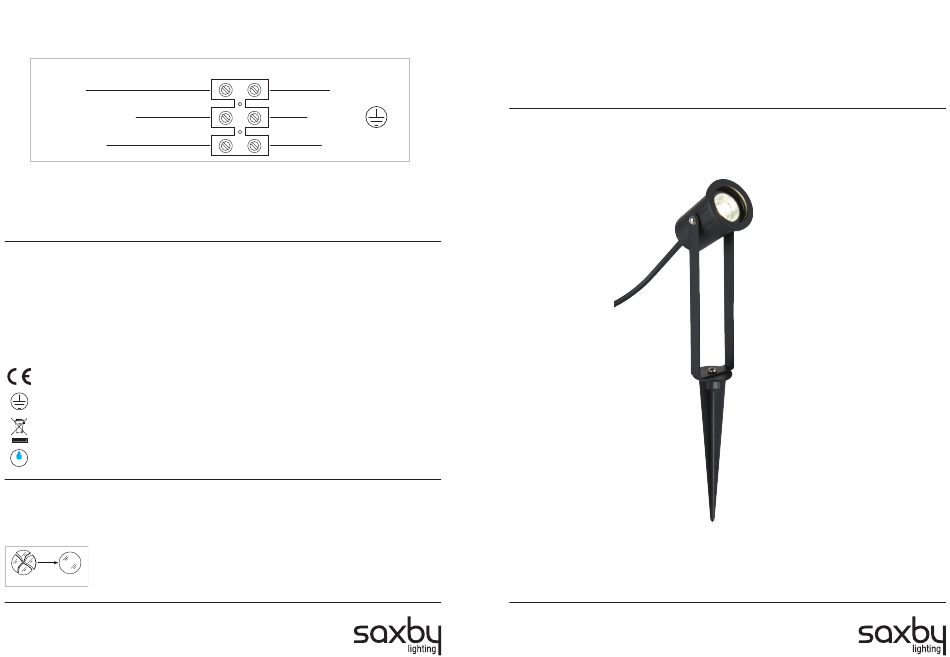

Wiring - Terminal Block
Having correctly identified the wiring from your existing light fitting, pull the wire through the hole and connect
to the connection block((not supplied) inside the product in the following way:
SUPPLY
NEUTRAL
EARTH (GREEN/YELLOW)
SWITCHED LIVE
Check that...
• You have correctly identified the wires.
• The connections are tight.
• No loose strands have been left out of the connection block.
Technical data
Supply
240V~, 50Hz
Voltage:
95205: 6W LED module, 3000K
Bulb
95206: 6W LED module, 4000K
Type:
95207: 12W LED module, 4000K
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
Conformity with all relevant EC Directive requirements.
This is a Class 1 product and must be earthed.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is rated at IP65
65
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
LED module of this luminaire is not replaceable, when the LED reaches its end of life the whole
luminaire shall be replaced.
Replace Cracked Shade
V1 22/01/2021
Saxby Lighting. BH17 7BY
LIGHT FITTING
BLUE (N)
GREEN/YELLOW
BROWN (L)
• When completed, ensure that there are no bare or
loose strands of wire exposed, and cover all
exposed areas of the connection block with 2
layers of insulation tape.
Instruction manual

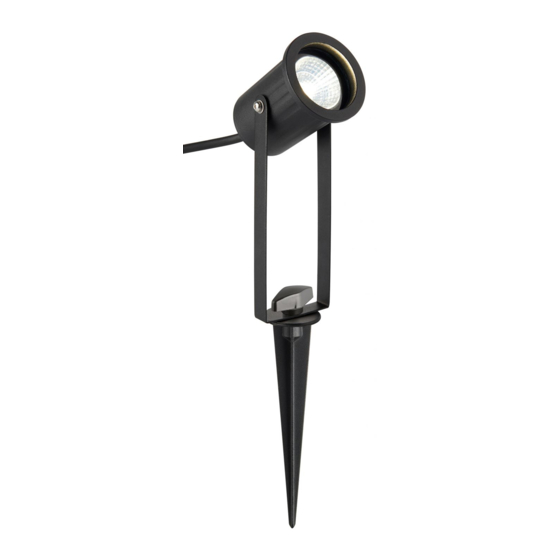

Picco
95205, 95206, 95207
www.saxbylighting.com
