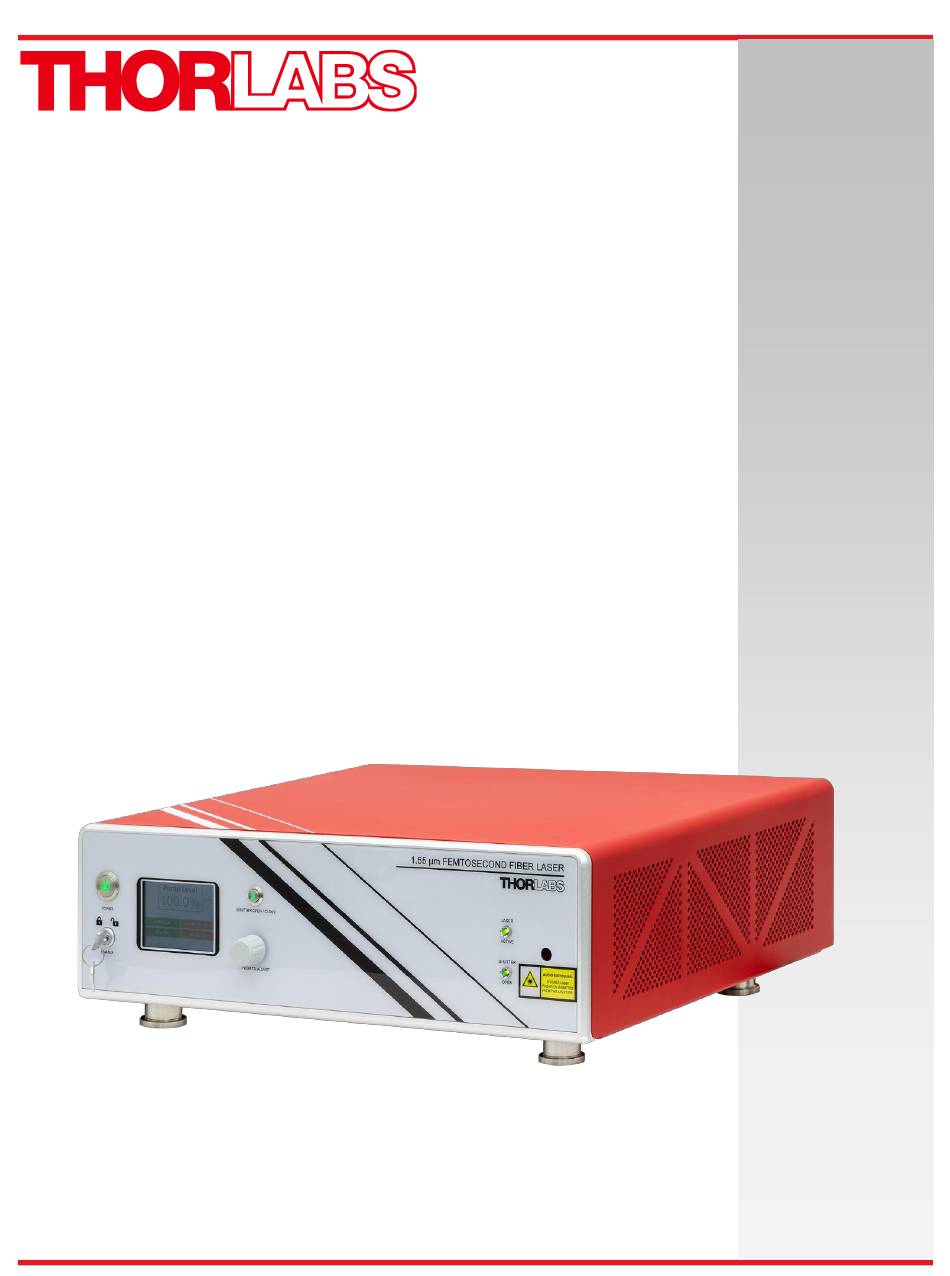

  • Page 1 FSL1550 1.55 µm Femtosecond Fiber Laser User Guide...

  • Page 2: Table Of Contents

    Maintenance ........................12 Chapter 5 Chapter 6 Warranty ..........................13 Chapter 7 Specifications ........................14 7.1. Optical Specifications ....................14 7.2. Electrical Requirements ..................... 14 7.3. Environmental Requirements ..................14 Chapter 8 Regulatory ........................17 Chapter 9 Thorlabs Worldwide Contacts ..................19...

  • Page 4: Chapter 1 Warning Symbol Definitions

    1.55 µm Femtosecond Fiber Laser Chapter 1: Warning Symbol Definitions Warning Symbol Definitions Chapter 1 Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or Chassis Terminal...

  • Page 5: Chapter 2 Safety

    This instrument must not be operated in an explosion endangered environment. LASER WARNING The FSL1550 is a Class IV laser. Avoid Eye or Skin Exposure to Direct or Scattered Radiation. LASER WARNING Always wear appropriate laser safety eyewear during laser setup and operation.
  • Page 6 CLASS 4 LASER PRODUCT Class IV lasers such as the FSL1550 may cause damage to the skin, and also to the eye, even from the viewing of diffuse reflections. These hazards may also apply to indirect or non-specular reflections of the beam, even from apparently matte surfaces.
  • Page 7 1.55 µm Femtosecond Fiber Laser Chapter 2: Safety Mobile telephones, cellular phones, or other radio transmitters should not to be used within the range of three meters of this unit since the electromagnetic field intensity may exceed the maximum allowed disturbance values according to EN50082-1.

  • Page 8: Chapter 3 Description

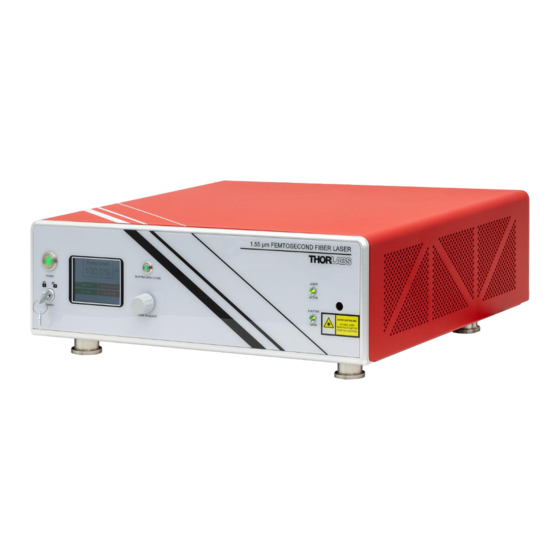

    3.1. Introduction Thorlabs’ FSL1550 Femtosecond Fiber Laser emits <50 fs pulses with a center wavelength of 1.55 µm at a 100 MHz repetition rate. This fiber laser is based upon an oscillator-amplifier combination that uses only polarization- maintaining fiber, yielding reliable turn-key operation and exceptional long-term reliability. The FSL1550 has a collimated free-space output with a 2.2 mm beam diameter.

  • Page 9: Chapter 4 Setup And Operation

    Chapter 4 4.1. Environmental Requirements The FSL1550 should be operated under controlled conditions to achieve stable performance. 4.1.1. Temperature Range For any laser, the ambient temperature must be well controlled. The ambient temperature of the lab environment should be in the 17 °C - 25 °C range, and should not change by more than 3 °C over any 24 hour period.
  • Page 10 20 minutes, or if a temperature error is displayed, please contact Technical Support (techsupport@thorlabs.com) for assistance. Please note that the oscillator status should always show “OSC OK” status. If an oscillator error status is displayed, please contact Technical Support. The interlock circuit in the system should be closed by shorting the BNC connector on the back panel either through a BNC short plug-in connector or a remote interlock circuit.
  • Page 11 1.55 µm Femtosecond Fiber Laser Chapter 4: Setup and Operation Figure 2 Screen shot of the laser display after temperature stabilization has been reached. Figure 3 Screen shot of the laser display when interlock circuit is open. Rev A, January 20, 2021 Page 8...

  • Page 12: Operating The Laser

    While operating the laser, it is mandatory that the temperature status indicator is showing stable temperature. Failure to follow this instruction can cause severe damage to the laser. 4.6.1. Front and Back Panel Overview Figure 4 Front Panel of the FSL1550 Callout Description Push-Button Power Switch...

  • Page 13: Starting The Laser

    1.55 µm Femtosecond Fiber Laser Chapter 4: Setup and Operation Figure 5 Back Panel of the FSL1550 Callout Description Trigger Signal Output (BNC) Remove Interlock Input (BNC) AC Power On/Off Switch Fuse Tray (See Section 4.4 for Replacement Details) AC Power Cord Connector 4.6.2.

  • Page 14: Controlling The Laser Output Power

    4.6.3. Controlling the Laser Output Power The pump current of the amplifier stage in the FSL1550 can be adjusted using the rotary knob on the front panel. There are two adjustment modes available: Coarse and Fine. Pushing the knob once will activate the coarse adjustment mode.

  • Page 15: Chapter 5 Maintenance

    Always wear appropriate laser safety eyewear during laser setup and operation. Aside from the AC input fuse, the FSL1550 does not require regular maintenance. Please keep the shutter closed when laser is not being used in order to keep the optics inside the laser enclosure clean. If you suspect something has failed in the unit, please contact Thorlabs for advice on returning the unit for evaluation.

  • Page 16: Chapter 6 Warranty

    Chapter 6 Thorlabs warrants to the buyer of the laser system described in this manual that it conforms to the published specifications and is free from defects in materials and workmanship for a period of 12 months or 5,000 hours of operation, whichever occurs first.

  • Page 17: Chapter 7 Specifications

    1.55 µm Femtosecond Fiber Laser Chapter 7: Specifications Specifications Chapter 7 7.1. Optical Specifications Optical Specifications Center Wavelength 1560 nm ± 30 nm <40 fs (Typical) Pulse Width (FWHM) <50 fs (Max) Peak Power >60 kW Output Power >500 mW (Average) Repetition Rate 100 MHz (Nominal) Pulse Energy...
  • Page 18 1.55 µm Femtosecond Fiber Laser Chapter 7: Specifications 7.4. Typical Pulse Performance Plots Page 15 TTN231462-D02...
  • Page 19 1.55 µm Femtosecond Fiber Laser Chapter 8: Mechanical Drawings Mechanical Drawings Chapter 8 Figure 6 FSL1550 Mechanical Drawing Rev A, January 20, 2021 Page 16...

  • Page 20: Chapter 8 Regulatory

    Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
  • Page 21 1.55 µm Femtosecond Fiber Laser Chapter 10: Declaration of Conformity Chapter 10 Declaration of Conformity Rev A, January 20, 2021 Page 18...

  • Page 22: Chapter 9 Thorlabs Worldwide Contacts

    1.55 µm Femtosecond Fiber Laser Chapter 11: Thorlabs Worldwide Contacts Chapter 11 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc.
