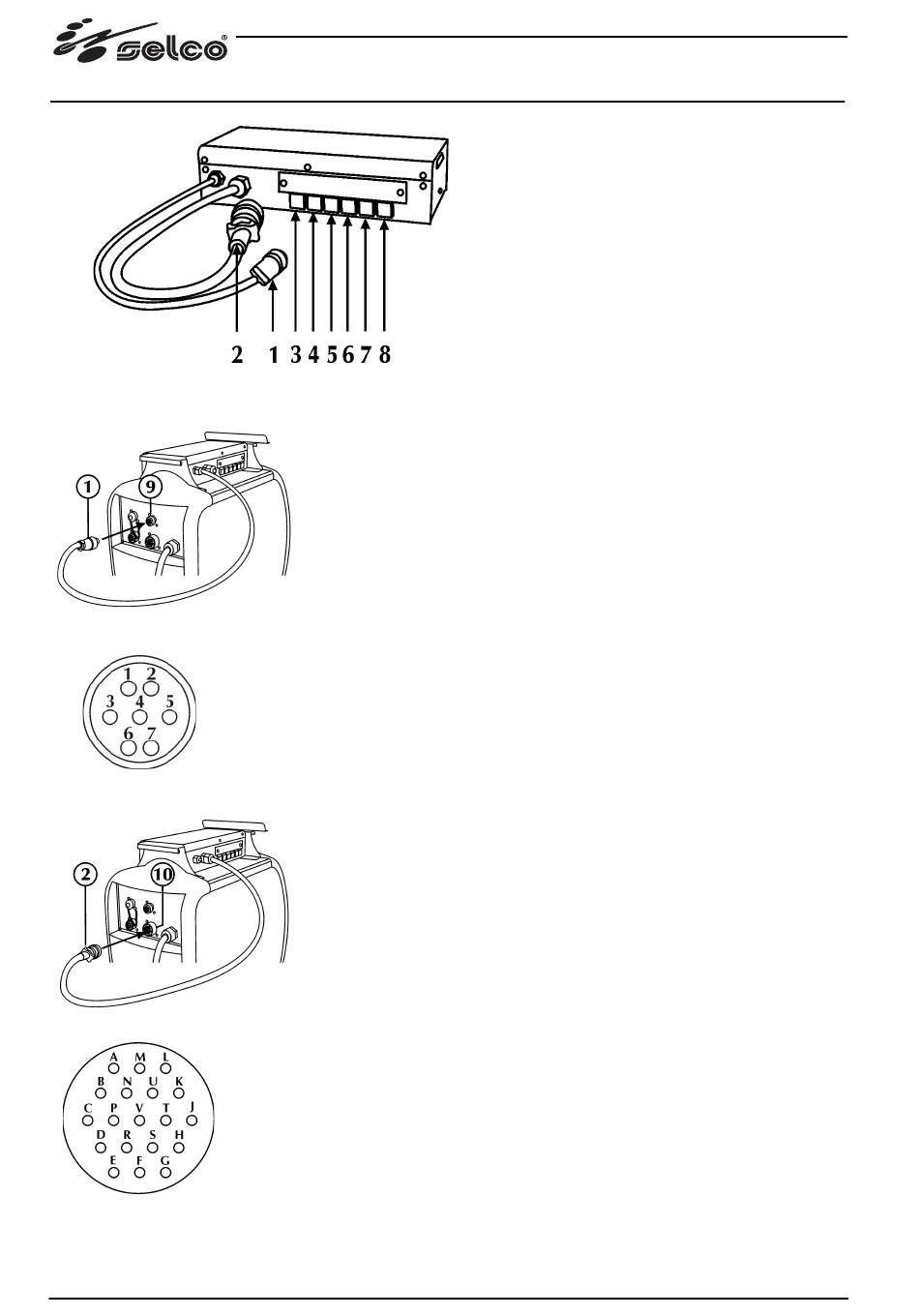

4 CABLE CONNECTION
4.1 Communication with generator via CAN BUS (1*)
4.2 I/O BOX PLUS RI 3000 (2*)
42
1* Communication with generator via CAN BUS
2* I/O BOX PLUS RI 3000
3* Power supply + I/O BOX RI 3000
4* Cleaning station (BOX PLUS RI 3000)
5* BUS IN (DeviceNet)
6* BUS OUT
7* Lan - RI XP (Optional)
8* Wire end (Optional)
Connect the CAN-BUS signal cable (1) for the control of external devices (such RI) to
the appropriate connector (9).
Insert the connector and rotate the ring nut clockwise until the parts are properly
secured.
1 +15V direct Voltage
2 Ground contact
3 Not used
4 Not used
5 Not used
6 CAN-H signal
7 CAN-L signal
Connect the CAN-BUS signal cable (2) for the control of external devices (such RI) to
the appropriate connector (10).
Insert the connector and rotate the ring nut clockwise until the parts are properly
secured.
Connect the signal cable for the control of external devices to the appropriate connector.
Signal
A +24V IN
B GND
C +24V OUT
D GND
E DO 5 digital output (x ELV 1)
F DO 6 digital output (x ELV 2)
G DO 7 digital output (x ELV 3)
H DO 8 digital output (x ELV 4)
J DO 2 digital output (x ELV 5)
K COM
L Not used
M ELV 1
N ELV 2
P ELV 3
R ELV 4
S ELV 5
T Not used
U PE
V Not used
