  • Page 1 User Manual ——— DNAKE C112...
  • Page 3 REMARK Please follow the user manual for correct installation and testing. If there is any doubt please call our tech-supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra notice for any change. The illustration shown here is only for reference. If there is any difference, please take the actual product as the standard.

  • Page 4: Table Of Contents

    CATALOG PRODUCT FEATURE ..........1 TECHNICAL PARAMETER ........1 PACKAGE CONTENT ..........2 OVERVIEW .............. 3 BASIC OPERATION ..........4 WEB SETTING ............5 SYSTEM DIAGRAM ..........18 DEVICE WIRING ........... 19 INSTALLATION ............21 TROUBLESHOOTING ........... 28 SAFETY INSTRUCTION ........29...

  • Page 5: Product Feature

    PRODUCT FEATURE 1. Compact Design 2. 2MP, 1080P HD Camera, WDR 3. H.265 Video Codec 4. Motion Detection 5. Tamper Alarm 6. Optional WIFI and Bluetooth TECHNICAL PARAMETER Power Supply: PoE (802.3af) or DC 12V/2A Resolution: 1920 x 1080 Working Temperature: -40℃ to +55℃ Storage Temperature: -40℃...

  • Page 6: Package Content

    PACKAGE CONTENT MODEL: C112 Screw Fixing Seat C112 PA4×25 (3 pcs) Rear Cover Rain Hood (3 pcs) Sealing Plug of Junction Pressing PM2×6 (2 pcs) FM3×6 (1 pcs) FM3×6 (1 pcs) Wiring Port Wrench Screw Quick Start Guide (T10)

  • Page 7: Overview

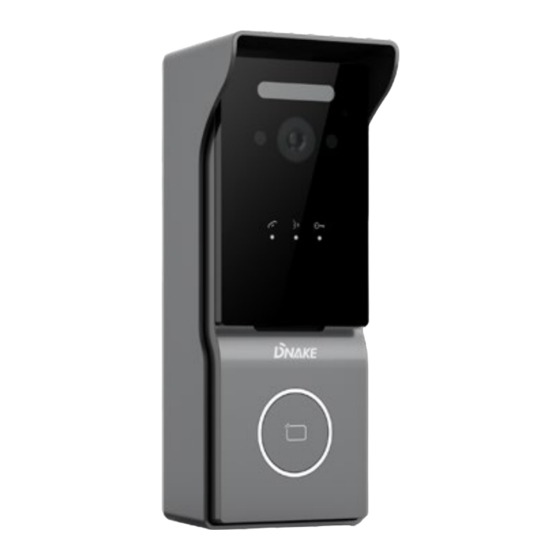

    OVERVIEW Note: Calling indicator light: The 1st indicator light will activate if the call button is pressed. Talking indicator light: The 2nd indicator light will activate if the call is picked up or the Door Station is being actively monitored. Unlocking indicator light: The 3rd indicator light activates for 3 seconds when the door is unlocked.

  • Page 8: Basic Operation

    BASIC OPERATION 1. Call and Monitor 1.1. Call Indoor Monitor In standby mode, press button on Villa Station to call Indoor Monitor. During the call, press button on Villa Station again to end the call. If the call fails or Indoor Monitor is busy, Villa Station will make a beep sound.

  • Page 9: Web Setting

    IP address of Door Station in the web browser search bar and log in with the default account (admin) and password (123456). This is where you can configure the device. To get the IP address, you can search by DNAKE Remote Upgrade Tool installed in the same LAN with the devices. 1. General 1.1.
  • Page 10 Model: Model of the device; Firmware Version: Firmware version of the device; MAC Address: MAC address of the device; Framework: Framework of the device; UI of the device; MCU: MCU of the device; DHCP: Status of DHCP; IP Address: Current IP address of the device; Mask: Subnet mask of the device;...
  • Page 11 Language: 16 languages supported (简体中文, English, 繁體 中文, ‫ ,ﬠ ִ בר ִ ית‬Deutsch, Español, Türk, Tiếng Việt, Nederlands, Português, Polski, Русский, ‫,ﻋرﺑﻲ‬ Français, Italiano, slovenský); Resolution: 3 resolutions supported (320 × 240, 640 × 480, 1280 × 720); Intercom: Volume of Intercom can be set from 1 to 6;...
  • Page 12 The Web password is for the administrator to log in settings on the web. The default password is 123456. Web Old Password: Current administrator password of the web (Default 123456); Web New Password: New administrator password of the web; Web Confirm Password: Confirm administrator password of the web;...
  • Page 13 Backup&Restore: Backup all setting and restore settings; Upgrade: Upgrade equipment; Reset: Reset to factory settings; Reboot: Reboot the device; Packet Capture: Capturing packets can help developers reproduce positioning problems; Logs: Device logs; 2. Intercom 2.1. Intercom > Device...
  • Page 14 Numbers here are basic settings for making a call to Indoor Monitor. For Door Station, the building and unit number should be the same as those in Indoor Monitor. For Villa Station with one button, the building, unit, and room number should be the same as those in Indoor Monitor.
  • Page 15 DHCP: Enable DHCP (Dynamic Host Configuration Protocol) to dynamically distribute network configuration parameters; IP Address: Configure Static IP address to manually distribute network configuration parameters; Mask: Subnet mask; Gateway: A component that is part of two networks, which use different protocols; DNS: Domain Name Server of the device;...
  • Page 16 SIP: Enable to use SIP; Display Name: Display name of SIP; Register Name: Register Name of SIP; Username: Username of SIP; Password: Password of SIP; SIP Server Host: Directly fill in SIP server’s address like 192.168.68.90; The default port is 5060; Outbound Proxy: Directly fill in Outbound Proxy of SIP;...
  • Page 17 Mode: 2 modes supported (one by one, all at once);  One by one: Make calls one after one following the ring group order.  All at once: Make calls to all ring group destinations. Call Concierge URL: Fill in the call destination for concierge button or the single button on the device;...
  • Page 18 Relay 1: 1 relay supported; DTMF: Dual-tone multi-frequency signaling (Relay1: #, Relay2:0, relay3: *); Unlock Delay: The length of unlock delay time (1-9s); Unlock Time: The length of unlock time (1-9s); Dry Contact Input 1-2: 3 modes of dry contact inputs are supported (Exit Button, Door Sensor, Fire Linkage);...
  • Page 19 Search: Fill in text inputs to search; Reset: Click reset to clear words in text inputs; Delete All: Delete all data on the chart; Import: Import all data to the chart; Export: Export all data on the chart; Add: Add users to Door Station; Fill in the name, room NO of user, choose the relay, status, person type and read cards to add users.
  • Page 20 Real-time video from IP cameras can be obtained by filling in its URL (RTSP). On the talking interface of Indoor Monitor, you can click the little keyboard icon to switch to IP cameras’ video. (No.1 on the keyboard stands for Door Station while No.2 to No.5 stands for IP camera) RTSP Video Codec: H.264 and H.265;...
  • Page 21 Tamper Alarm: Enable to use Tamper alarm on the back of the device; ONU Penetration: Enable to prevent ONU from banning multicast;...

  • Page 22: System Diagram

    SYSTEM DIAGRAM...

  • Page 23: Device Wiring

    DEVICE WIRING 1. Network (PoE) Standard RJ45 interface is used to be connected to the Master Station, Indoor Monitor and/or other network equipment. PSE shall comply with IEEE 802.3at (PoE+) and its output power not less than 30W and its output voltage not be less than 50V. 2.
  • Page 24 Warning! 1. When connecting to an inductive load device such as a relay or electromagnetic lock, you are recommended to use a diode 1A/400V (included in the accessories) in anti- parallel with the load device to absorb inductive load voltage peaks.

  • Page 25: Installation

    INSTALLATION Installation of Rain Hood 1. Choose the suitable height of camera, and put the label sticker on the wall. 2. According to the sticker, drill three 8 x 45mm for screws and one 5mm for wire outlet. 3. Insert 3 screw fixing seats into the screw holes. 4.
  • Page 26 9. Plug waterproof seal plug into the cover groove at the bottom. 10. Fix interface clamp to the device with 2 screws.
  • Page 27 11. Hang up device with rain hood. 12. Use wrench to lock the bottom of the device with 1 screw (different screws for rain hood and rear cover).
  • Page 28 Installation of Rear Cover 1. Choose the suitable height of camera, and put the label sticker on the wall. 2. According to the sticker, drill three 8 x 45mm for screws and one 5mm for wire outlet. 3. Insert 3 screw fixing seats into the screw holes. 4.
  • Page 29 9. Plug waterproof seal plug into the cover groove at the bottom. 10. Fix interface clamp to the device with 2 screws.
  • Page 30 11. Hang up device with rear cover. 12. Use wrench to lock the bottom of the device with 1 screw (different screws for rain hood and rear cover).
  • Page 31 Tips: The camera should be 1450~1550mm above the ground. The camera at this height can capture human face perfectly.

  • Page 32: Troubleshooting

    TROUBLESHOOTING The Indoor Monitor cannot start up or power off automatically. Check whether it has power-failure, and power it on again  The Indoor Monitor display screen is too dim. Check whether the brightness and contrast settings of screen are correct. ...

  • Page 33: Safety Instruction

    SAFETY INSTRUCTION In order to protect you and others from harm or your device from damage, please read the following information before using the device. Do not install the device in the following places:  Do not install the device in high-temperature and moist environment or the area close to ...
  • Page 34 V1.0 EASY SMART INTERCOM SOLUTIONS...
