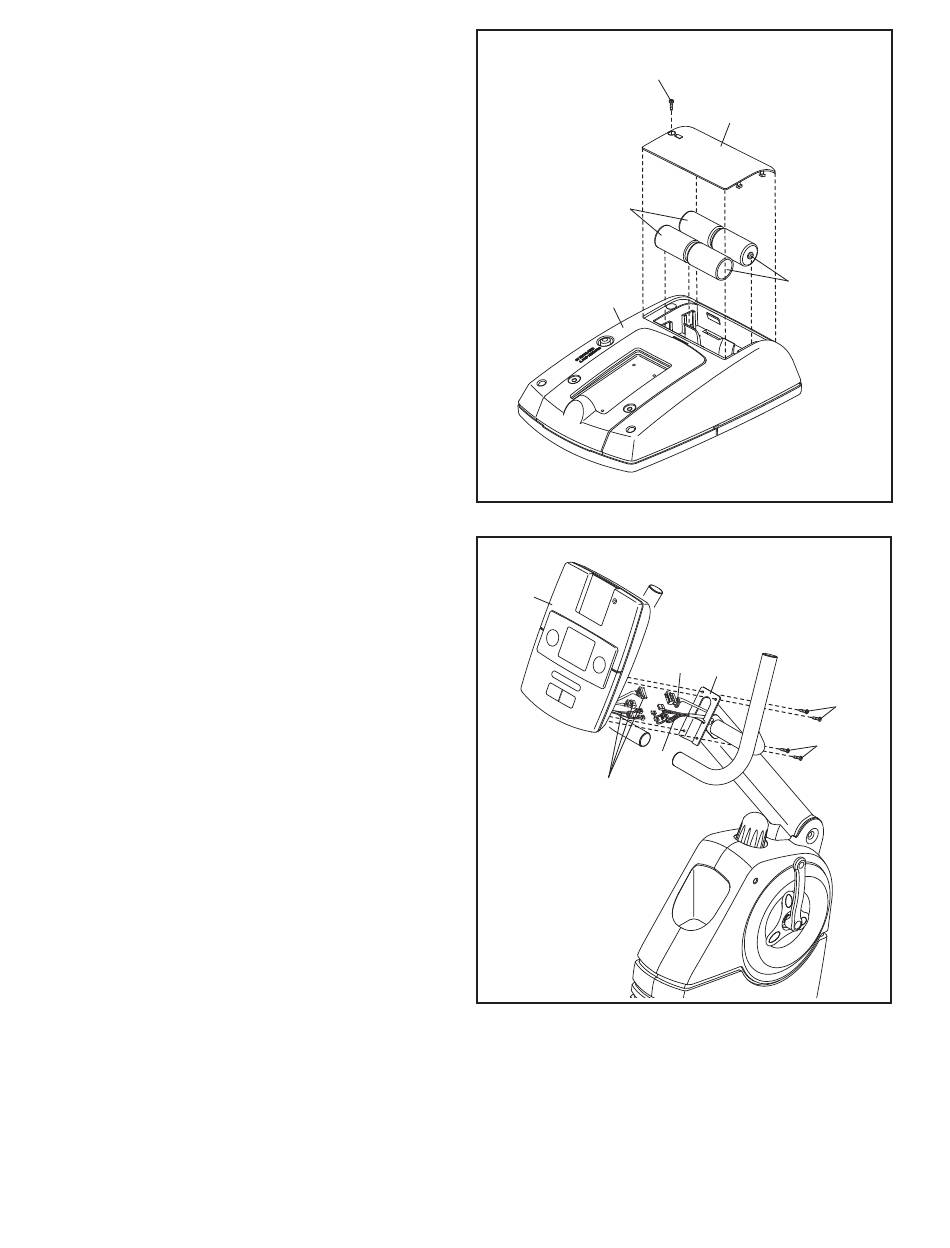

5. The Console (4) can use four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the indicated screw, remove the
battery cover, insert the batteries into the bat-
tery compartment, and then reattach the battery
cover. Make sure to orient the batteries as
shown by the diagrams inside the battery
compartment.
To purchase an optional AC adapter, contact
the store where you purchased this product
or call the telephone number on the front
cover of this manual. To avoid damaging the
console, use only a manufacturer-supplied
AC adapter. Plug one end of the AC adapter
into the jack on the console; plug the other end
into an outlet installed in accordance with all
local codes and ordinances.
6. While another person holds the Console (4)
near the Upright (2), connect the console wire
harnesses to the Wire Harnesses (42, 43);
make sure to connect the console wire that
has a tag to the game wire that has a tag.
Insert the excess wire downward into the
Upright.
Tip: Do not pinch the Wire Harnesses (42,
43). Attach the Console (4) to the Upright (2)
with four M4 x 16mm Flange Screws (80).
