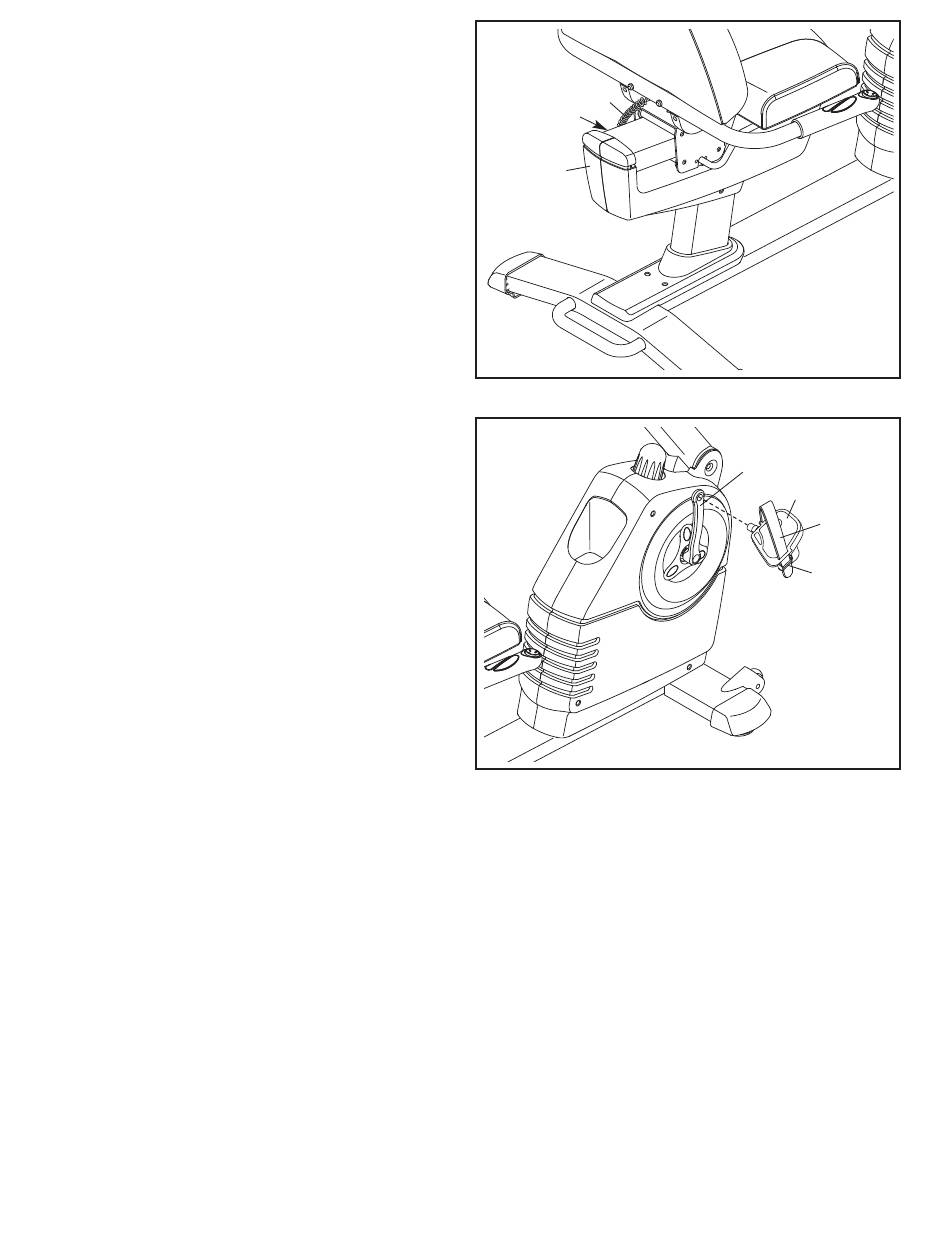

11. Plug the Game/Pulse Wire (58) into the
Game/Pulse Receptacle (79) located in the Left
Shield (26).
12. Identify the Right Pedal (21), which is marked
with an "R."
Using an adjustable wrench, firmly tighten the
Right Pedal (21) clockwise into the Right Crank
(23). Tighten the Left Pedal (not shown) coun-
terclockwise into the Left Crank (not shown).
IMPORTANT: Tighten both Pedals as firmly
as possible. After using the exercise cycle
for one week, retighten the Pedals.
To loosen the strap on the Right Pedal (21),
press the indicated tab and pull the strap
upward. To tighten the strap, simply pull the end
of the strap downward. Adjust the strap on the
Left Pedal (not shown) in the same way.
13. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly
is completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
11
58
79
26
12
11
23
21
Strap
Tab
