5. Using the #2 Phillips screwdriver, attach the screws that hold the robotic rack
assembly to the chassis: first the top, then the bottom (Figure 7).
Note:
Some Spectra 12K library models have only four screws attaching
the robotic rack to the chassis.
Counterweight Replacement Guide

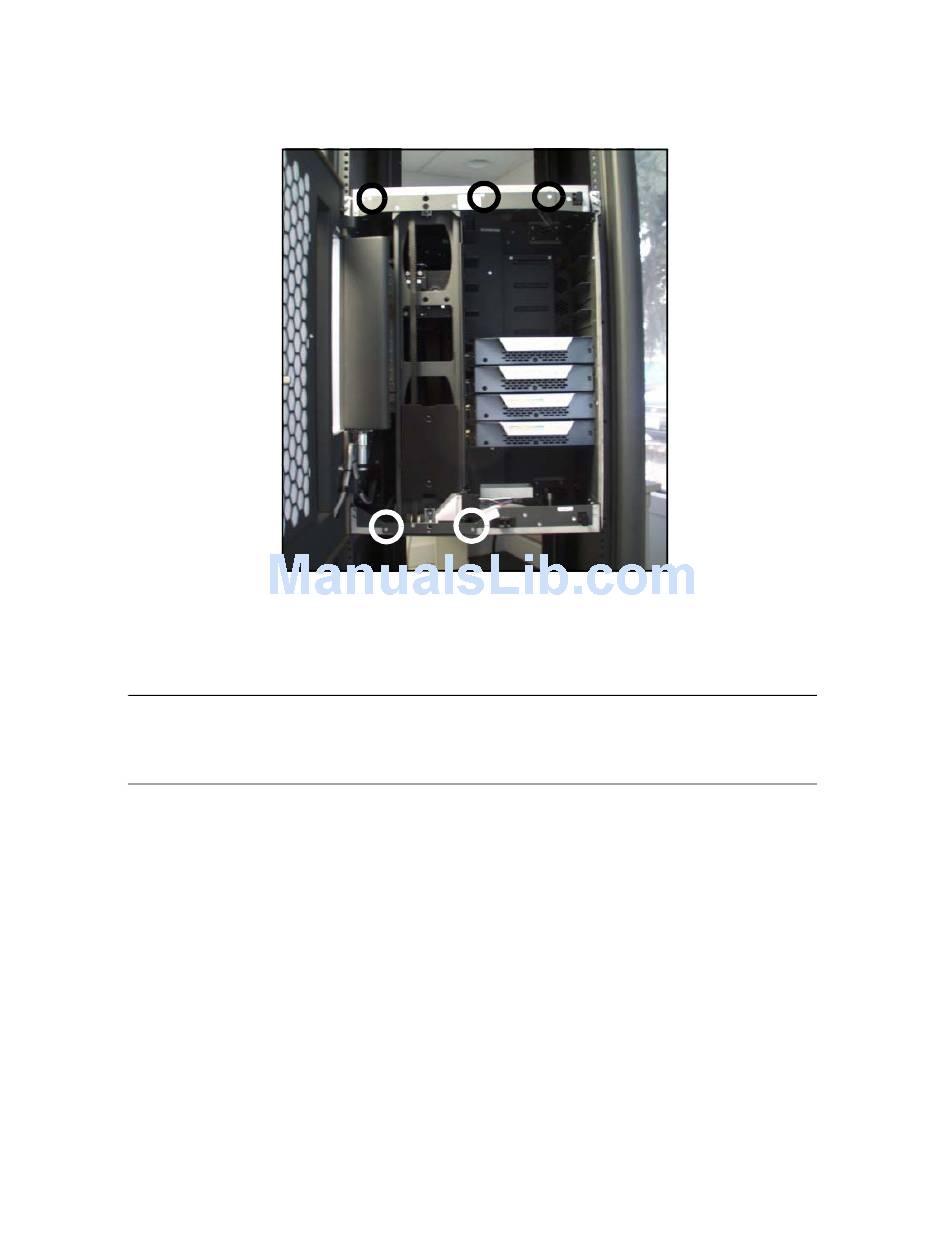

Figure 7 The screws that hold the robotic rack assembly to
the chassis (Spectra 12K library shown).
