2. Remove the drives from the drive bay, so that you have access to the screws that
are attached to the robotic rack.
3. Using the appropriate screwdriver, loosen the screws just enough to move the gate
out of the way from the robotic rack assembly (Figure 4).
• The Spectra 12K and 20K library has three screws in the door.
• The Spectra 64K library has five screws in the door.
4. Unplug the 25-wire black connector at the bottom front of the robotic rack
assembly (Figure 5 and Figure 6).
Figure 5 Unplug the 25-wire black connector at the
bottom front of the Spectra 12K and 20K library.
Counterweight Replacement Guide

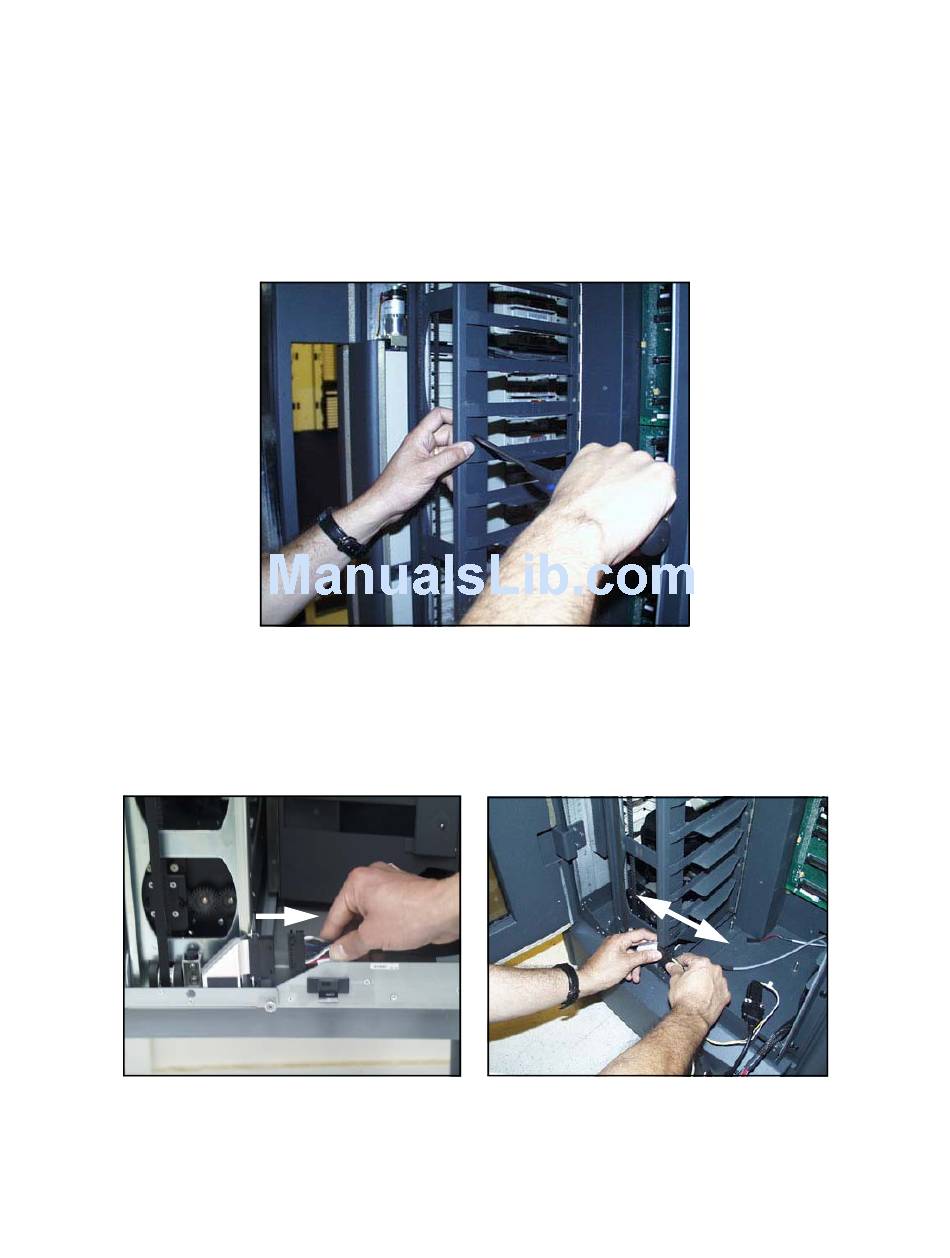

Figure 4 Loosen the screws from the drive slot door.
Figure 6 Unplug the 25-wire black connector at the
bottom front of the Spectra 64K library.
