Remove the Robotic Rack Assembly

1. With the door opened, look at the bottom of the library where the drives are
located.
If there is a hinge connecting the left side of the drive slots to the back of the
library (Figure 2), go to Step 2.
If your library does not have a hinge (Figure 3), go to Step 4.

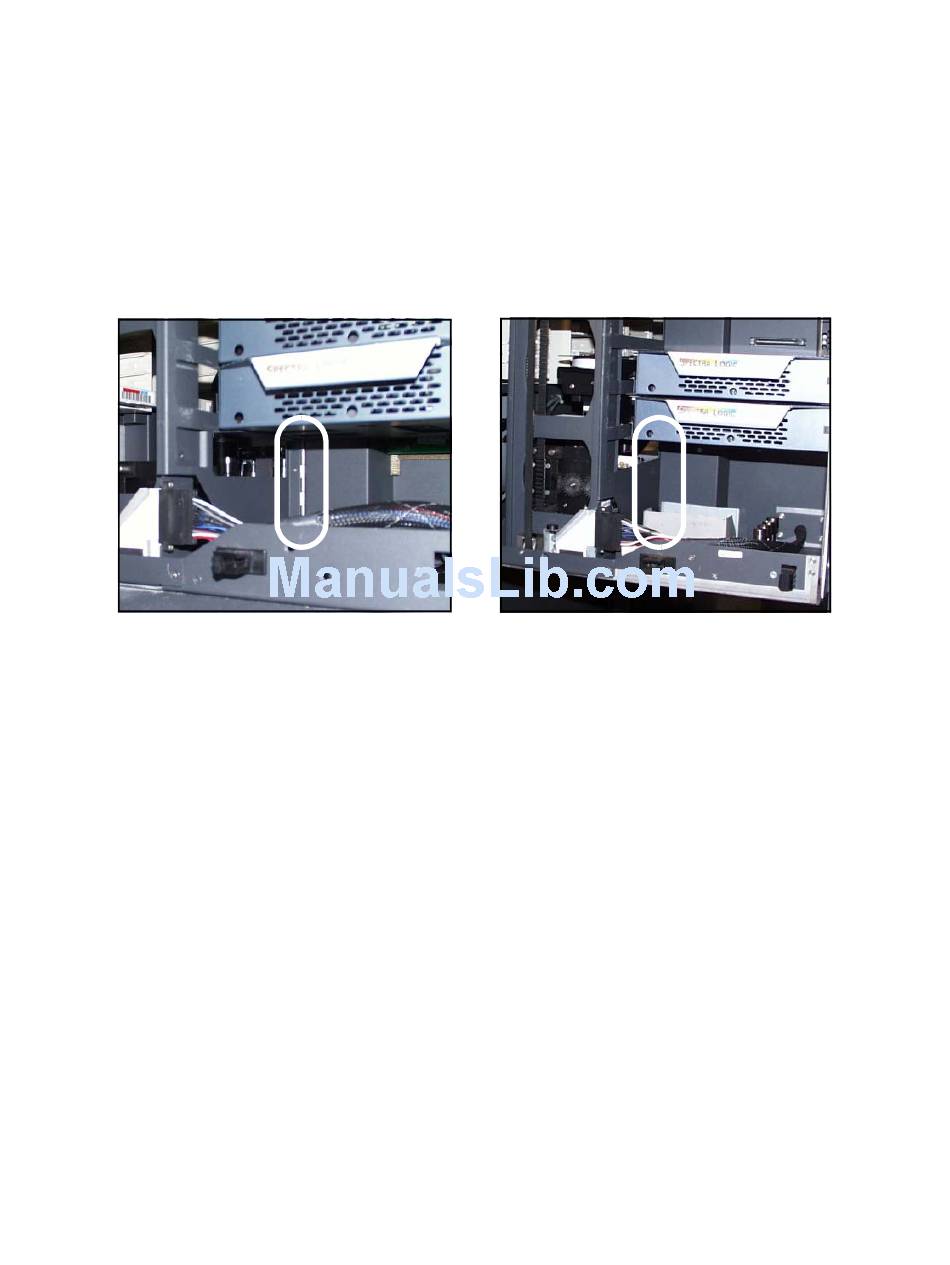

Figure 2 Hinge located beneath the drives.
Counterweight Replacement Guide
Figure 3 No hinge.
7
