Summary of Contents for thomann the t.mix 403-USB Play

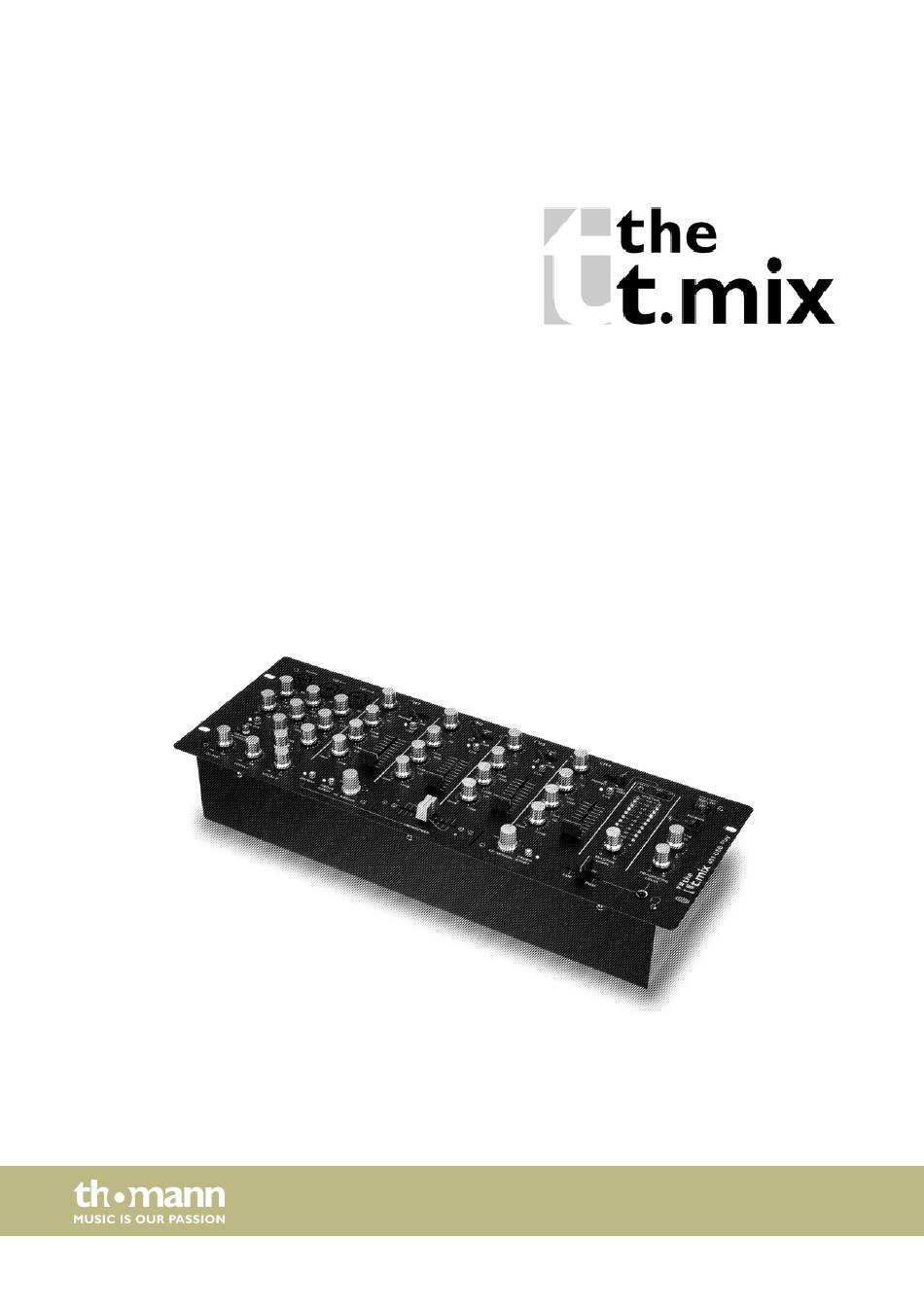

- Page 1 403-USB Play mixer user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 05.12.2018, ID: 441274...
-
Page 3: Table Of Contents
Table of contents Table of contents General information......................4 1.1 Further information......................4 1.2 Notational conventions....................4 1.3 Symbols and signal words................... 4 Safety instructions......................... 6 Features............................8 Installation..........................9 Connections and controls....................10 Technical specifications....................15 Plug and connection assignment................. 16 Protecting the environment................... -
Page 4: General Information
Our products are subject to a process of continuous development. Thus, they are subject to change. 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. - Page 5 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in mate‐...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for amplification, mixing and playback of signals from musical instruments and microphones. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is pro‐...
-
Page 8: Features
Features Features 4-channel DJ mixer with USB player 1 × microphone input with talk over (XLR / 1/4" combo jack) 2 × microphone inputs with delay (XLR / 1/4" combo jack) 1 × headphones output (stereo, as 1/4" phone jack) 2 ×... -
Page 9: Installation
Installation Installation NOTICE! Danger of short circuit Switching on phantom power will damage the device if unbalanced XLR cables are connected. Only turn on phantom power when exclusively balanced XLR cables are connected. Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. -
Page 10: Connections And Controls
Connections and controls Connections and controls Front panel 1 [DJ-MIC], [VOCAL-1], [VOCAL-2] Microphone input, designed as XLR / 1/4" phone combo socket 2 [HI] Rotary control for adjusting the high frequencies of the microphone input 3 [LO] Rotary control for adjusting the low frequencies of the microphone input 4 [ON AIR] Activates the DJ-MIC. - Page 11 Connections and controls 8 [DJ-MIC], [VOCAL-1], [VOCAL-2] Rotary control for adjusting the volume of the microphone inputs 9 [GAIN] Rotary control to adjust the input signal to the working level of the unit. 10 [HI], [MID], [LO] Rotary control for direct tone control of the respective channel (bass, mids, treble) 11 [CUE] Selects the channel that can be heard through the headphones.
- Page 12 Connections and controls 27 [FADER START] Enables the fader start for the channel assigned to the right side of the crossfader. When the button is pressed in ON position, the contact with the connected audio device is established and play‐ back starts automatically.
- Page 13 Connections and controls Rear panel 33 IEC chassis plug for operating voltage supply with fuse holder Should the fuse have blown, disconnect the unit from the power supply and replace the fuse with a new fuse of the same type. 34 Selector switch for power supply voltage.
- Page 14 Connections and controls 44 [BOOTH OUT] Output for connecting to amplifiers or other audio devices, designed as 1/4" phone jacks 45 [REC OUT] Output for connecting to a recording device, designed as RCA sockets for left and right channels 46, 48, 49 [CHANNEL 4 LINE], [CHANNEL 3 LINE], [CHANNEL 3 CD], [CHANNEL 2 LINE], [CHANNEL 2 CD], [CHANNEL 1 LINE] 50, 51, 52 Inputs for line level signals (e.g., CD, DVD, MP3), designed as RCA sockets...
-
Page 15: Technical Specifications
Technical specifications Technical specifications Inputs Microphone: 1.73 mV / 2 kΩ Phono: 4 mV / 47 kΩ Line/CD: 775 mV / 50 kΩ Outputs Main: 0 dBu Booth: 0 dBu Phone: 81 dB / 112 mV / 32 Ω Tone control (bass, mids, treble) –12 dB…+12 dB Frequency range Microphone: 25 Hz…30 kHz... -
Page 16: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 17 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding 403-USB Play...
-
Page 18: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
