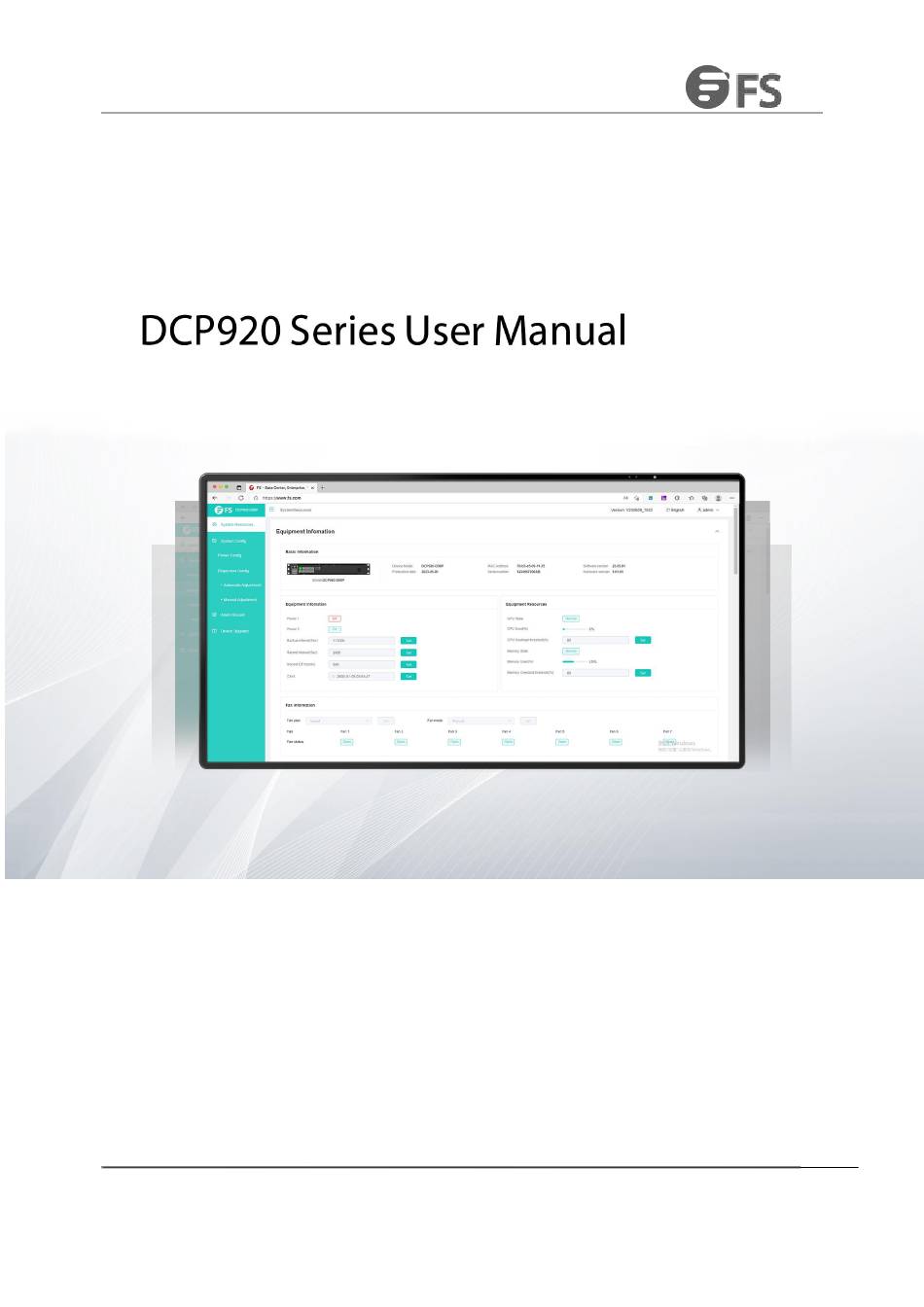

- Page 1 DCP920 SERIES USER MANUAL Copyright © 2009-2023 FS.COM All Rights Reserved.
-
Page 2: Table Of Contents
DCP920 SERIES USER MANUAL 1. Summary .............................................1 2. Equipment Chassis Introduction....................................2 2.1 DCP920 Series Equipment ......................................2 3.Equipment Description ........................................3 3.1 Description of the Front Side of the Chassis ...............................3 3.2 Description of the Rear Side of the Chassis................................ 4 4.WEB Introduction .......................................... -
Page 3: Summary
DCP920 SERIES USER MANUAL 1. Summary DCP920 series is an integrated WDM transmission platform, which meets the application scenario of 4x 100G/8x 100G business 0~80KM point-to-point transmission without repeater, adopts PAM4 DWDM transmission technology, and has built-in VOA, TDCM, and DCM to support line-side optical power, automatic adjustment of dispersion. Out-of-band OSC interface can manage multiple devices, stack and expand capacity;... -
Page 4: Equipment Chassis Introduction
DCP920 SERIES USER MANUAL 2. Equipment Chassis Introduction 2.1 DCP920 Series Equipment Figure 2-1 DCP920 series equipment diagram Table 2-1 DCP920 series device features Description Feature DCP920-D04P: 4 module service slots, 4 LC/UPC transmission slots, 2 1+1 backup power supply slots, and 3 1+1 fan slots. -
Page 5: Equipment Description
DCP920 SERIES USER MANUAL 3.Equipment Description 3.1 Description of the Front Side of the Chassis Figure 3-1 DCP920 series front side device diagram Slot assignment Optical interface Line interface Figure 3-2 slot allocation of DCP920 series Function The functions on the front side of the device are as follows The main control network port provides the main control WEB monitoring function, and the device optical port provides ... -
Page 6: Description Of The Rear Side Of The Chassis
3.2 Description of the Rear Side of the Chassis Figure 3-3 DCP920 series rear device diagram Slot allocation AC POWER AC POWER Figure 3-4 DCP920 series rear panel function allocation Function The functions on the front side of the device are as follows Equipment power supply ... - Page 7 DCP920 SERIES USER MANUAL Switches Table 3-3 DCP920 series switch description Switch type Situation Switch status Method of use Pull the ring, lift up the shrapnel Replacement, Shrapnel switch with your fingers, and pull out the removal main control card...
-
Page 8: Web Introduction
DCP920 SERIES USER MANUAL 4.WEB Introduction 4.1 Login Interface The login bar is composed of account number, password, and login options. There is a language selection bar at the bottom right, and the language can be changed. 4.2 Operation Interface The operation bar is divided into user management panel, function panel, display\setting panel, confirmation panel. - Page 9 DCP920 SERIES USER MANUAL Show\Settings panel It can display the actual device front panel, device information, and setting items. Confirmation panel Every time an option is set, a confirmation panel will pop up, click the green confirmation button to implement, and the red cancel...
-
Page 10: Functional Division
DCP920 SERIES USER MANUAL 4.3 Functional Division System resource System resource display items consist of device information and DCP920 series. Equipment information mainly operates the main functions, such as internal clock, resource allocation, fan control, IP management, and master control card information display. - Page 11 DCP920 SERIES USER MANUAL DCP920 series Mainly for data display, display the optical module electrolight, temperature, wavelength, etc., but also display the equipment electrolight, dispersion compensation value of the main data. System configuration It consists of the power configuration and the dispersion configuration, both of which are the setting panel.
- Page 12 DCP920 SERIES USER MANUAL The automatic adjustment of dispersion needs to set the length of the optical cable in advance, the length is the length of the optical cable measured in advance, the fixed dispersion is usually 40 by default, the default value of the factory dispersion range is 800, the default value of the factory dispersion slot is 3, and the remote IP is the IP of the peer device Master control IP address, after setting, use the adjustment enable to adjust.
- Page 13 DCP920 SERIES USER MANUAL Warning records It consists of event type, date and time, search button, download button, delete button, and data display interface. Select the event type you want to know, select the time interval you want to know, and click the search button to query the relevant search results.
