Summary of Contents for FS FS-BOX-V3

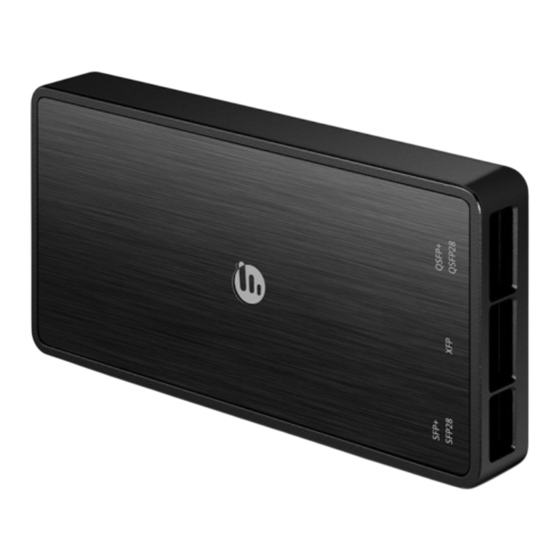

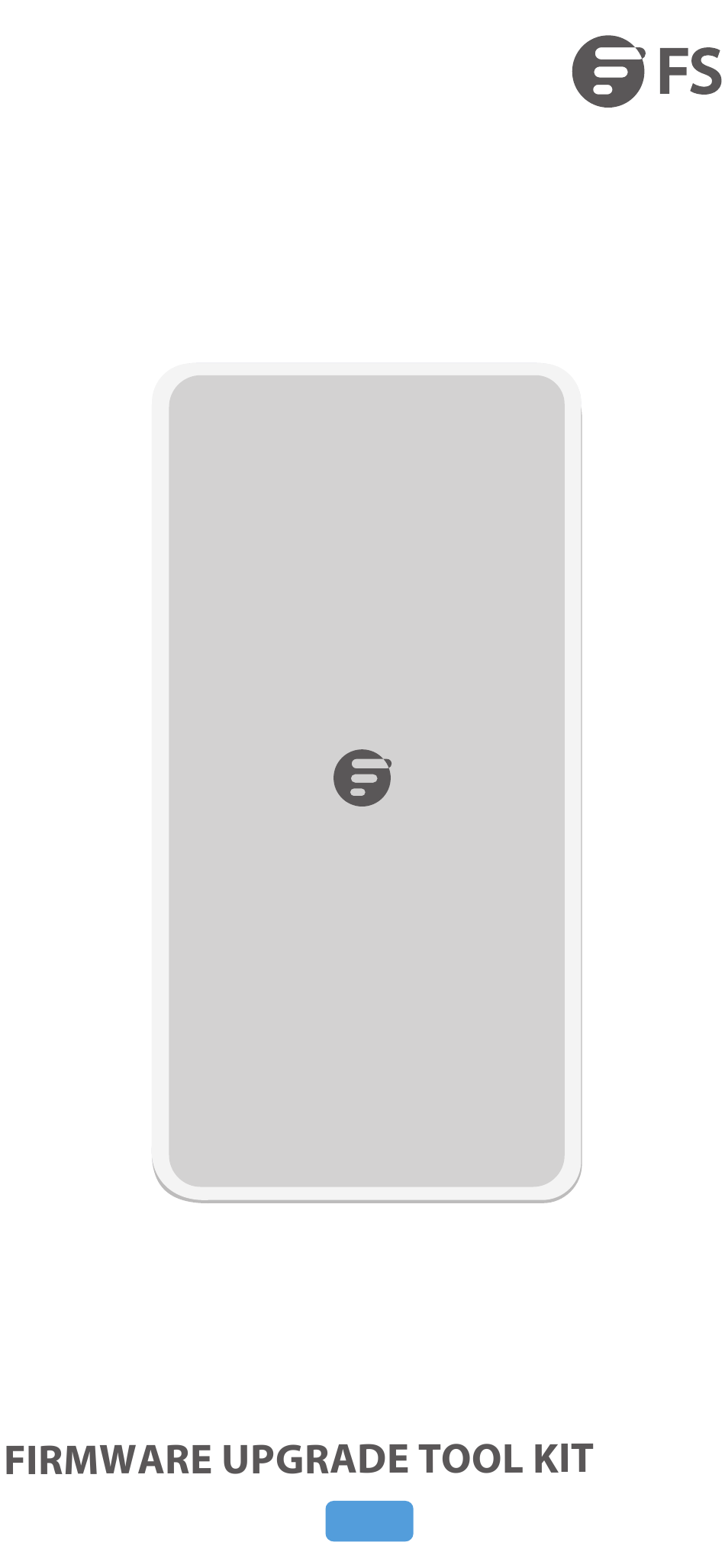

- Page 1 SFP+ QSFP+ SFP28 QSFP28 FS-BOX-V3 Quick Start Guide V3.0...
- Page 2 With its instant online platform fsbox.com and a wide range of con guration choices, FS Box V3 could help engineers con gure in a timely and e ective way. SFP+/SFP28...
-
Page 3: Login Operation
Operation Instructions Login Operation Step 1: Go to fsbox.com. Step 2: Log in with your FS accoumt. Sign in Email address Passwords Forgot password Login Create an account Step 3: Download and install the driver. Online Con guration Diagnosing Con guration... - Page 4 Install MacOS Driver Step 1: After downloading the driver, double-click the driver le FSInstall_ Mac_Beta.dmg. Step 2: Long click the FS Box and drag to the Application folder. SFP+ QSFP+ SFP28 QSFP28 FS Box Application Step 3: Find the FS Box application on the Launchpad, then double-click it and a system pop-up prompt will appear, click Open.
- Page 5 Install Windows driver Step 1: After downloading the driver, double-click the driver le FSInstaller for installation. Step 2: FS service will be automatically activated when the driver is installed, and you can check the FS logo in the noti cation bar.
- Page 6 If you only need to recon gure the compatibility of optics, please operate as follow. Step 1: Connect FS Box to your computer and insert your transceiver into corresponding port of FS Box. After successful insertion, the indicator of FS Box will be blinking.
- Page 7 Brand Juniper F123456793 QSFP28-LR4-100G P/N* QSFP28-LR4-100G Brand* Please choose Cisco Juniper Arista DELL (Force 10) Intel Brocade Huawei Netgear Extreme Alcatel-Lucent Generic Mellanox If you need to change more brands for compatibility, please go to 'Box Pro' for custom application Revise S/N Serial number Please lling...
- Page 8 If you need to con gure channels for tunable transceivers, please operate as follow. Step 1: Connect FS Box to your computer and insert your tunable transceiver into the corresponding port of FS Box. The platform can quickly identify it. Then choose the P/N of the transceiver, and click the eidt icon under the wavelength.
- Page 9 Step 2: Choose the wavelength and click Apply. Changing wavelength Wavelength: CH21 (1560.61nm) Tunable wavelength: CH19.5 (1561.83nm) Cancel Apply Changing wavelength Wavelength: CH19.5 (1561.83nm) Tunable wavelength: Please choose Changed Cancel Apply √...
- Page 10 If you need to solve compatibility issues with your problematic optics after the sale, please operate as follow. Step 1: Connect FS Box to your computer and insert an identical transceiver that works well into the corresponding port of FS Box.
- Page 11 Brand Juniper A1930005081 QSFP-IR4-40G Available FS Transceiver Informaion P/N* QSFP-IR4-40G Compatible Brand* Juniper S/N* A1930005081 Device Model Number JU EX4300-48P Remark Please lling Save the information to my Con guration Start Diagnosing...
- Page 12 Step 3: Remove the identical transceiver and insert your problematic FS transceiver after diagnosing succeeds.
- Page 13 Step 4: Click Start Matching after the transceiver is replaced. Brand Y203000429 Juniper QSFP-IR4-40G Available FS Transceiver Informaion Problematic FS Transceiver Information P/N* QSFP-IR4-40G Revise S/N Batch Matching Start Matching Step 5: Matching succeeds, then pull out the transceiver.
- Page 14 Box Pro Service If you need to recon gure part number of your optics or need to custom compatibility, please operate as follow. Application Steps Step 1: Enter Box Pro service and click Request Con guration. Transceiver information Available Con guration Batch Con guration Request Con guration Please lling...
- Page 15 Step 3: Fill the con guration details you need to custom and click Submit. You will receive the auditing result of your application in 1 to 3 business days. Apply return Application Information Description：Cisco QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO DOM Transceiver Module Product ID：#36157 P/N：QSFP-SR4-40G Qty：1...
- Page 16 Date】2020-09-07 12:32:43 Unaudited 【Application Cancel Con guration Steps Step 1: Connect FS Box to your computer and insert corresponding transceiver into corresponding port. Step 2: Locate the application which is approved and click Con guration. Available Con guration Request Con guration...
- Page 17 Transceiver information Available Con guration Request Con guration Batch Con guration Please lling Application No/Date: W1600398462915 / 2020-09-18 03:08:47 Order No: FS190813415903 Product ID P/N New S/N Application Note Brand Vendor Name Attribute Action #11552 SFP-10GSR-85 Cisco 850nm PO001234567891 this is application note Con guration Step 3: Click Start Con guration, then insert and remove your transceivers one by one.
- Page 18 Step 1: Connect FS Box to your computer and insert corresponding transceiver into corresponding port. Step 2: Select the applications which are approved and click Batch Con guration. Transceiver information Available Con guration Request Con guration Batch Con guration Please lling...
-
Page 19: Indicator Light Status
DDM Information Connect FS Box and insert your transceiver, and then you can click “DDM Information” in the top right corner of the page to check the status of the transceiver. It will show voltage, temperature and bias-current values in combination with time based continuous chart for transmit and receive levels.
