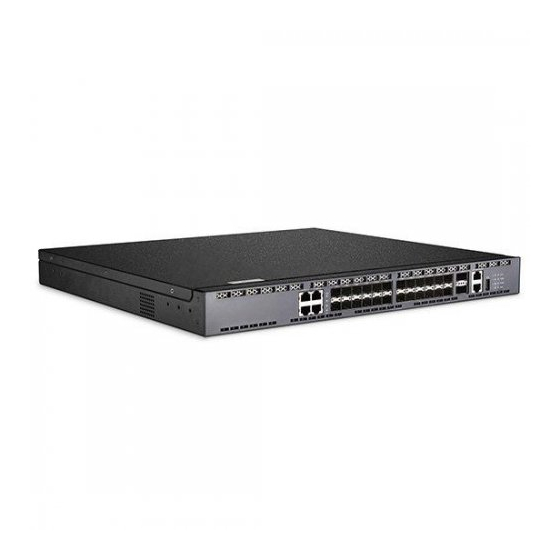

FS S5900-24S4T2Q Configuration Manual
Hide thumbs
Also See for S5900-24S4T2Q:
- Security configuration manual (30 pages) ,
- Manual (22 pages) ,
- Configuration (11 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for FS S5900-24S4T2Q
Summary of Contents for FS S5900-24S4T2Q
- Page 1 Reset and Recovery System Configuration Guide Model: S5900-24S4T2Q...
- Page 2 S5900-24S4T2Q RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE Contents 1. Configuration Considerations................................1 2. Network Topology....................................1 3. Operation Steps.......................................1 3.1 Connection Equipment................................1 3.2 Download Configuration Software............................1 3.3 Switch on and Use Login Software.............................1 3.4 Restoration System..................................2 3.5 Switch to Factory Reset................................3...
- Page 3 S5900-24S4T2Q RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE 1. Configuration Considerations Table 1 products and versions for example Series Product Support version S59 series S5900-24S4T2Q 2. Network Topology 3. Operation Steps 3.1 Connection Equipment #According to the way of networking topo to connect PC and switch to network cable and Console. One end of the RJ-45 network cable is connected to the PC NIC, and the other end is connected to the SW's network port.
- Page 4 S5900-24S4T2Q RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE NOTE: COM Number can be viewed through device manager. (right click on my computer.>manage>device manager>port (COM and LPT） If it displays an unrecognized USB device, please download and install the corresponding driver. 3.4 Restoration System Please use Ctrl + P to enter the monitor # interface when restarting the switch, then configure the switch IP address.
- Page 5 * Then start upgrading the system: run copy tftp flash Monitor#copy tftp flash //From ftp to flash Source file name[ ]? FS-S5900-24S4T2Q-2.2.0.bin //Firmware file name Remote-server ip address[ ]? 192.168.1.2 //TFTP Server IP address Destination file name [FS-S5900-24S4T2Q-2.2.0.bin] ? //Switch.bin When prompted: TFTP: successfulfully sent ...
- Page 6 S3910 SERIES SWITCHES DATASHEET www.fs.com...
