D E G E L M A N
I N D U S T R I E S
B O X
8 3 0 - 2 7 2
I N D U S T R I A L
R E G I N A ,
S K ,
C A N A D A ,
F A X 3 0 6 . 5 4 3 . 2 1 4 0
P H 3 0 6 . 5 4 3 . 4 4 4 7
1 . 8 0 0 . 6 6 7 . 3 5 4 5
D E G E L M A N . C O M
L P
D R I V E ,
S 4 P
3 B 1

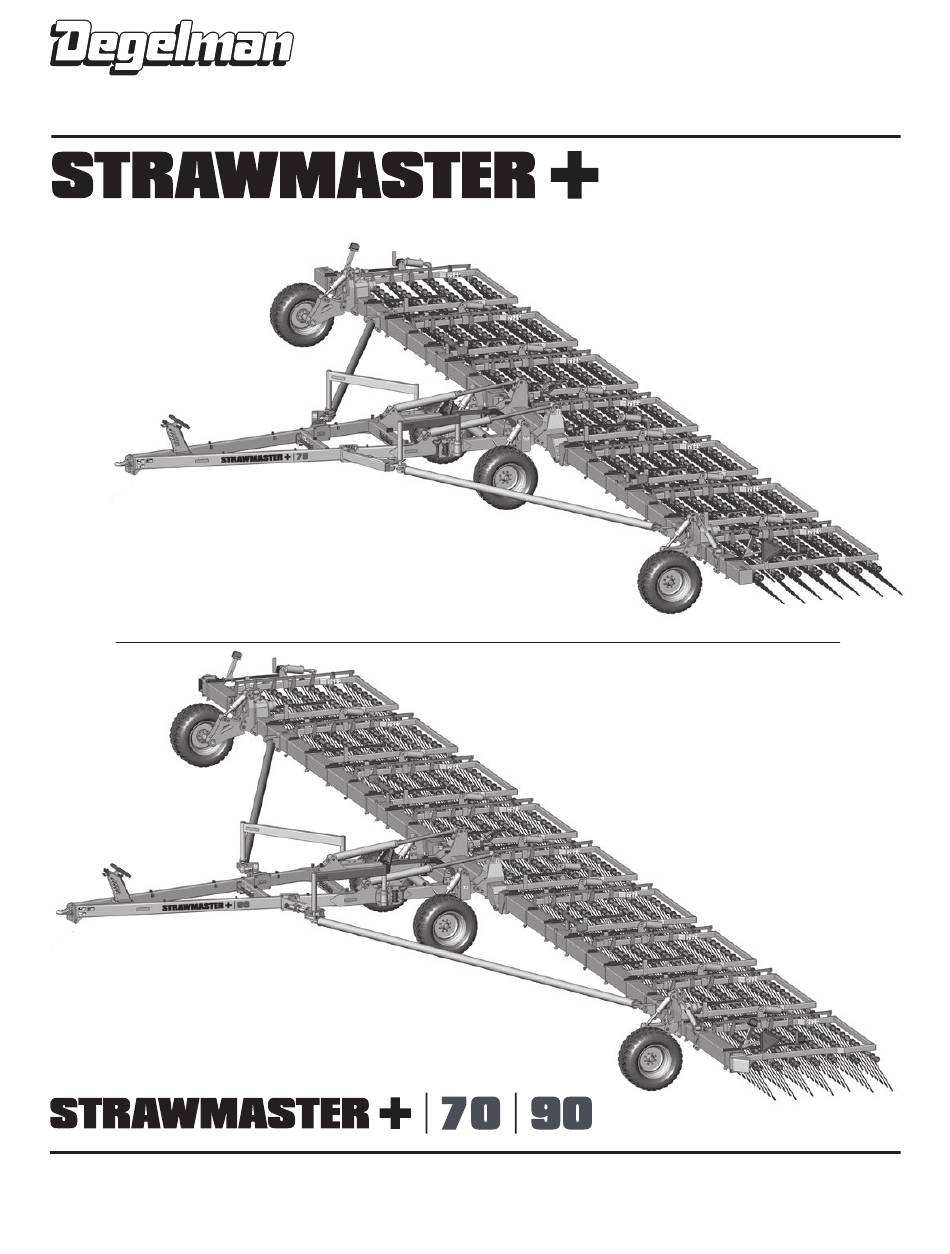

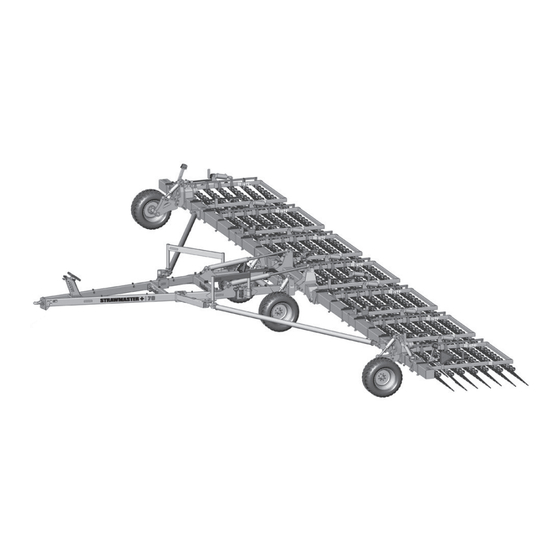

OPERATOR & PARTS
MANUAL
143467 v1.0
STRAWMASTER
Serial Numbers 9075 and up
+
70/90

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9075 and is the answer not in the manual?

Questions and answers

Related Manuals for Degelman 9075

Summary of Contents for Degelman 9075

  • Page 1 F A X 3 0 6 . 5 4 3 . 2 1 4 0 P H 3 0 6 . 5 4 3 . 4 4 4 7 Serial Numbers 9075 and up 1 . 8 0 0 . 6 6 7 . 3 5 4 5...
  • Page 3 QUICK-START GUIDE WARRANTY STRAWMASTER REMEMBER! You must complete Product * Refer to operators manual for complete safety and operation info. Registration to be eligible for Warranty. WHEELS......Connect Hydraulics Wheel Height Cylinders TRANSPORT..... Transport Cylinders TINE ANGLE ..(Option) Harrow Section Cylinders LATCH &...
  • Page 4 4) Install all frame transport pins (2), cylinder lock bars (2), and endwheel transport bars (2). Endwheel transport bars MUST be installed during transport. IMPORTANT: 5) Ensure SMV sign and re ectors are clean and lights are working. Follow all local transport laws when transporting. © 2023 Degelman Industries LP...

  • Page 5: Table Of Contents

    * Reference Sheet Quick-Start Guide OPERATORS SECTION - TABLE OF CONTENTS Introduction Safety Operation Pre-Operation Checklist Hook-Up Transport to Field Position Indicator Overview Settings & Adjustments Service & Maintenance Maintenance Checklist & Specifications Maintenance Free Pins & Bushings Repair - Hyd Cylinder Repair IMPORTANT: INSTALL DRY Repair - Pressed Bushing Setting - Hydraulic Lock-Out Valve...

  • Page 7: Introduction

    Use this manual as your first source of information about this machine. TO THE NEW OPERATOR OR OWNER - Safe, efficient and trouble free operation of your Degelman Strawmaster+ requires that you and anyone else who will be operating or maintaining it, read and understand the Safety, Operation, Maintenance and Troubleshooting information contained within this manual.

  • Page 8: Safety

    Safety Why is SAFETY important to YOU? 3 BIG Reasons: •Accidents Can Disable and Kill •Accidents Are Costly •Accidents Can Be Avoided SAFETY ALERT SYMBOL The Safety Alert Symbol means: he Safety Alert Symbol identifies important safety messages applied to the PRO-TILL and in this ATTENTION! manual.
  • Page 9 Safety SAFETY GENERAL SAFETY YOU are responsible for the safe operation and 1. Read and understand the Operator’s maintenance of your equipment. Manual and all safety signs before operating, maintaining or adjusting. YOU must ensure that you and anyone else who is going to operate, maintain or work around 2.

  • Page 10: Operation

    Operation TO THE NEW OPERATOR OR OWNER BRIEF OVERVIEW OF OPERATION The Degelman Strawmaster+ is designed for • Operating speed will depend on tractor effective straw management, weed control, horsepower, environmental conditions and each herbicide application, raking flax residue while particular operation.

  • Page 11: Pre-Operation Checklist

    Operation BREAK-IN PRE-OPERATION CHECKLIST Although there are no operational restrictions on It is important for both personal safety and the Strawmaster+ when it is new, there are some maintaining the good mechanical condition of mechanical checks that must be done to ensure the machine that this pre-operational checklist be the long term integrity of the unit.

  • Page 12: Hook-Up

    Operation TRANSPORT SAFETY HOOK-UP / UNHOOKING The Strawmaster+ should always be parked on a 1. Check with local authorities regarding machine level, dry area that is free of debris and foreign transport on public roads. Obey all applicable objects. Follow this procedure to hook-up: laws and regulations.

  • Page 13: Transport To Field Position

    Operation TRANSPORT TO FIELD POSITION Note: Ensure there is plenty of room behind and 7) 7) to the sides of the Strawmaster before backing into field position. 7) 7) 4) 4) FULLY ROTATE end wheels BEFORE latching truss arm clamps. 1) 1) 3) 3) 1) 1)

  • Page 14: Indicator Overview

    Operation - Indicator Overview Tine Angle Indicator The Tine Angle Indicator is an overall visual indicator of the current setting the harrow section tine angles are set at. If you have the Hydraulic Tine Angle option, this indicator will adjust in real-time as you activate the hydraulics from the tractor.

  • Page 15: Settings & Adjustments

    Operation - Suggested Tine Angle Settings BREAKING & SPREADING STRAW TINE ANGLE ADJUSTMENT Strawmaster+ may have either Manual or Hydraulic • For best results operate at Tine Adjustment. Tine angle adjustment should be 10 to 12 mph. made with the machine in field position. •...
  • Page 16 Operation - Adjustments: Rephasing Cylinders Overview & Principles of Rephasing Troubleshooting A Rephasing Cylinder System enables a pair (or Series rephasing cylinder systems (Master and multiple) cylinders to extend and retract in very near Slave(s)) can exhibit undesirable behaviors such as unison.

  • Page 17: Service & Maintenance

    Service & Maintenance MAINTENANCE SAFETY MAINTENANCE CHECKLIST • Review the Operator’s Manual and all safety items After reviewing the Maintenance and Hydraulic before working with, maintaining or operating the Safety Information, use the Maintenance Checklist Strawmaster provided for regular service intervals and keep a record of all scheduled maintenance: •...
  • Page 18 Service & Maintenance HARDWARE SPECIFICATIONS HYDRAULIC SAFETY Note: Unless stated otherwise, hardware is typically: • Make sure that all components in the hydraulic Hex, Plated GR5 UNC or P8.8 (metric) system are kept in good condition and are clean. • Replace any worn, cut, abraded, fl attened or TORQUE SPECIFICATIONS crimped hoses and metal lines.
  • Page 19 Service & Maintenance HYDRAULIC FITTING INSTALLATION Note: A DASH size refers to a diameter of a hose (inside) or of a tube (outside) measured in 1/16” increments. The following info is to help you identify and properly For example, a Hose specifi ed as dash 8 or -8 would install some of our standard hydraulic fi...

  • Page 20: Repair - Hyd Cylinder Repair

    Service & Maintenance HYDRAULIC CYLINDER REPAIR REPAIRING A THREADED HEAD CYLINDER PREPARATION Set Screw Style When cylinder repair is required, clean off unit, Barrel Set Screw disconnect hoses and plug ports before removing Gland cylinder. When removed, open the cylinder ports and drain the cylinder's hydraulic fl...

  • Page 21: Setting Hydraulic Lock-Out Valve

    Service & Maintenance REPLACING A PRESSED BUSHING SETTING HYDRAULIC LOCK-OUT VALVE NOTE: You may need the following tools: The purpose of the hydraulic lock-out valve is to Press, hammer, punch, pry-bar, "Step-Tool" prevent the accidental opening of the truss latches when the machine is in use.
  • Page 22 Service & Maintenance WHEEL HUB REPAIR WHEEL NUT & WHEEL BOLT TORQUE TORQUE BOLT PATTERNS IMPORTANT Be sure DISASSEMBLY to block up unit securely before removing tires. 1. Remove dust cap. COMMON 2. Remove cotter pin from nut. HUB & SPINDLE 5 BOLT PATTERN 6 BOLT PATTERN 8 BOLT PATTERN...
  • Page 23 Service & Maintenance - Tine Replacement TINE REPLACEMENT Note: Tines must be replaced when worn down DISASSEMBLY: to 20 in. or less in length. Tines may be replaced Follow this procedure one pipe row at a time so while the machine is in transport position, or field pipes do not get mixed up, or number each pipe position.

  • Page 24: Troubleshooting

    Troubleshooting GENERAL TROUBLESHOOTING In the following section, we have listed some of the problems, causes, and solutions that you may encounter. If you encounter a problem that is difficult to solve, even after having read through this troubleshooting section, please call your local dealer or distributor. Before you call, have this manual and the serial number from your unit ready.
  • Page 25 -19- 143467 - SM HARROW (26-September-2023)

  • Page 26: Front Trailer Overview

    Front Trailer Overview Front Trailer Assembly Overview (90' Model Configuration Shown) Spring Bar Assembly 90' Overview (7 Row shown) Exploded Front Trailer Component Overview Center Valve Beam Push Arm Cross Transport Joint Cylinders Model Trailer Height Center Beam Indicator Torsion Indicator Swing Arm 70' Model Latch Arm...

  • Page 27: Wing Assembly Overview

    Wing Overview LH Wing Assembly Overview 90' Overview (7 Row shown) Exploded LH Wing Component Overview (70' - 7 Row Model Shown) Harrow Sections (7 Row shown) Light Mounts Sign Truss Mount Holder Mount Jack Mount Spring Bar Hose Clamp Assemblies Mount Brackets Jack...

  • Page 28: Front Trailer Components

    132030 - Jack, 142761 - Decal, Manual (1) Sidewind (1) Lock Circuit (1) 142963 - Decal, Neg 142008 - 142750 - Tongue Weight (1) Degelman (1) 142753 - Decal, Hoses 142964 - Decal, Decal Decal, Pinch Label (1) Machine Point (2)

  • Page 29: Latch & Swing Arm Components

    Latch & Swing Arm Components Latch Arm Components 90' Latch Assembly 70' Latch Assembly Overview Overview NOTE: The components for both 70' & 90' Latch Assemblies are identical, with the exceptions of the 'Latch Arms' and 'Latch Hooks'. Exploded Latch Components (LH 90' exploded assembly shown) 117414 - Lock Nut, 3/4 GRC Unitorque (12) 118775 - Flat Washer, 3/4 F436 (24)
  • Page 30 Rock Shaft & Wheel Components Rock Shaft Components Cast Bearing Assembly IMPORTANT: Torque to 117225 - Bushing, 2-1/2 OD x 2 (4) Components (2) 550 lb . ft (750 N . m) 133135 - Wiper Seal, 2-1/2 OD (4) 118178 - Bolt, 1 123066 - Cylinder, Monarch x 11 - GR8 (2) - 4-1/4 x 8 x 2 (2)

  • Page 31: Center & Wing Beam Components

    Center Beam & Transport Cylinder Components Center Beam Components 118024 - Bolt, 5/8 x 1-1/2 (2) Hose Clamp Locations 118508 - Lock Washer, 5/8 (2) Differ Between Models 249945 - Pin Head (2) 117462 - Flat washer, 5/8 x 2 (2) 7 Row Model Shown 249960 - Pin Shaft, (4 Row and 5 Row...
  • Page 32 70' Wing Beam & Truss Overview 70' Beam Exploded Overview (Individual component breakdowns may be located on other pages) Tine Angle Indicator (1) (Refer to Harrow Sections for RH Wing RH Wing Bulkhead Bulkhead Tine Stop Info) 249730 - Wing Beam Assembly, 70 (2) 142557 - Amber...
  • Page 33 90' Wing Beam & Truss Overview 90' Beam Exploded Overview (Individual component breakdowns may be located on other pages) Tine Pipe Protector Tine Angle Indicator (1) (Refer to Harrow Sections for Tine Stop Info) RH Wing RH Wing Bulkhead Bulkhead 249725 - Wing Beam Assembly, 142557 -...
  • Page 34 Wing Beam Bracket Components 243061 - Bar, Back-up (1) Spring Bar Mount Hose Clamp Mount 118775 - Flat Washer, 117414 - Lock Nut, 249376 - Clamp Bracket (1) 3/4 F436 (2) 3/4 Unitorque (1) 118011 - Bolt, 1/2 x 118056 - IMPORTANT: Torque 1-1/2 (2) Bolt, 3/4 x...

  • Page 35: End Wheel Components

    End Wheel Assembly Components End Wheel Overview (LH Shown - RH is Mirrored) End Wheel Components 249310 - Transport Wheel Holder (2) 249348 - Collar (2) 118911 - Lock Nut, 1 (2) top mounts with... 118113 - Bolt, 1 x 9 (2) 118048 - Bolt, 3/4 x 2-1/2 GR8 (4) 118336 - Grease 118775 - Flat Washer, 3/4 F436 (8)

  • Page 36: Harrow Section Layout & Components

    Harrow Section Layout & Manual Tine Adjustment HARROW SECTION LAYOUT OVERVIEW TINE ANGLE ADJUSTMENT Hydraulic Adjustment Manual Adjustment (Available) 132065 - Jack, Ratchet (7 or 9) 132066 - Jack Handle, 8” (1) 118849 - Cotter Pin, 10' 10' 10' 10' 10' 10' 10' 1/4 x 2-1/2 (1) (3-Wing) (Center)
  • Page 37 Harrow Section Components - 7 Row 10’ WING HARROW SECTION OVERVIEW - 7 ROW 10’ CENTER HARROW SECTION OVERVIEW - 7 ROW 244771 - Wing 244830 - Center Harrow Section Harrow Section Frame, 10’ - 7 Row Frame, 10’ - 7 Row - Center Section only - 249380 - Bolt-on Cylinder Lug (1)
  • Page 38 Harrow Section Components - 5 Row 10’ WING HARROW SECTION OVERVIEW - 5 ROW 10’ CENTER HARROW SECTION OVERVIEW - 5 ROW 243035 - Wing 244841 - Center Harrow Section Harrow Section Frame, 10’ - 5 Row Frame, 10’ - 5 Row 10’...
  • Page 39 Harrow Section Components - 4 Row 10’ WING HARROW SECTION OVERVIEW - 4 ROW 10’ CENTER HARROW SECTION OVERVIEW - 4 ROW 247502 - Wing 244896 - Center Harrow Section Harrow Section Frame, 10’ - 4 Row Frame, 10’ - 4 Row 10’...
  • Page 40 Hydraulic Option - Tine Angle (70' Models) Hydraulic Fittings Required 141581 - Coupler Tip, 141581 - Coupler Tip, 3/4 ORB F 3/4 ORB-F (2) 141676 - Connector, 3/4 ORB M x M 141676 - Connector, 141686 - Coupler, Brown (+) 3/4 ORB M x M (2) 141687 - Coupler, Brown (-) 141686 - Coupler,...
  • Page 41 Hydraulic Option - Tine Angle (90' Models) Hydraulic Fittings Required 141581 - Coupler Tip, 141581 - Coupler Tip, 3/4 ORB F 3/4 ORB-F (2) 141676 - Connector, 3/4 ORB M x M 141676 - Connector, 141686 - Coupler, Brown (+) 3/4 ORB M x M (2) 141687 - Coupler, Brown (-) 141686 - Coupler,...

  • Page 42: Hydraulic Routing - Latch & End Wheel

    Hydraulic Layout - Latch & Endwheel Steering (Models with Hydraulic Lock-out) 141581 - Coupler Tip, Hydraulic Fittings Required 3/4 ORB-F (2) 141581 - Coupler Tip, 3/4 ORB F 141676 - Connector, 3/4 ORB M x M 141676 - Connector, 3/4 ORB M x M (2) 141688 - Coupler, Black (+) 141689 - Coupler, 141689 - Coupler, Black (-)
  • Page 43 Hydraulic Layout - Latch & Endwheel Steering (Models with Hydraulic Lock-out) Hydraulic Latch Valve Overview LH Latch Valve (90' shown) RH Latch Assembly (90' shown) Hydraulic Lock-Out Valve Overview Valve Push Arm Mounting 249379 - Clamp Plate (1) Components 118011 - Bolt, 1/2 x 1-1/2 (2) 118587 - Flat Washer, 1/2 F436 (4)
  • Page 44 Hydraulic Layout - Wheels 141581 - Coupler Tip, 3/4 ORB-F (2) Hydraulic Fittings Required 141581 - Coupler Tip, 3/4 ORB F 141676 - Connector, 141676 - Connector, 3/4 ORB M x M 3/4 ORB M x M (2) 141684 - Coupler, Green (+) 141685 - Coupler, –...

  • Page 45: Hydraulic Routing - Wheel Height

    Hydraulic Layout - Transport Hydraulic Fittings Required 141581 - Coupler Tip, 141581 - Coupler Tip, 3/4 ORB F 3/4 ORB-F (2) 141676 - Connector, 3/4 ORB M x M 141676 - Connector, 141682 - Coupler, Blue (+) 3/4 ORB M x M (2) 141683 - Coupler, Blue (+) 141682- Coupler, 141703 - Adaptor, 1/2 ORB M x ORFS M...

  • Page 46: Hydraulic Routing - Transport

    Electrical Layout / Light Components Wire Harness - w/plugs (1) 249481 - SM+ 70' 249480 - SM+ 90' Follow Hose Routing & attach with Zip Ties LH Wing Only 70' Qty (1) 90' Qty (2) 118735 - Screw, 1/4-20 x 3/4 129042 - Clamp, Rubber Cushion 129127 - Lamp,...
  • Page 47 Re-torque of fastening hardware, Hydraulic fluid purities, drive train alignments, and clutch operation) 3. If parts not made or supplied by Degelman have been used in the connection with the unit, if, in the sole judgement of Degelman such use affects its performance, safety, stability or reliability.

  • Page 48: Warranty

    It is the retail customer’s responsibility to deliver the product to the authorized Degelman dealer, from whom he purchased it, for service or replacement of defective parts, which are covered by warranty. Repairs to be submitted for warranty consideration must be made within forty-five days of failure.

This manual is also suitable for:

Strawmaster + 90Strawmaster + 70
