And/or replacing burner tube(s)
In units with "06" or "08" in model number
WARNING: STOVE MUST BE OUT (
Burner tube replacement
There are three different burner tubes in the top of the stove firebox.
To replace a tube, first be sure that you order the correct tube you need to replace (front, middle, or
rear – see www.heatredefined.com and/or owner's manual).
Then, using a 5/16" socket or open end wrench, remove the screw located on the left side of the tube.
Be sure to keep the screw. Push the tube to the right then remove the tube (pulling the tube back to the
left after that side has been removed from the hole). To replace, reverse the above procedure.

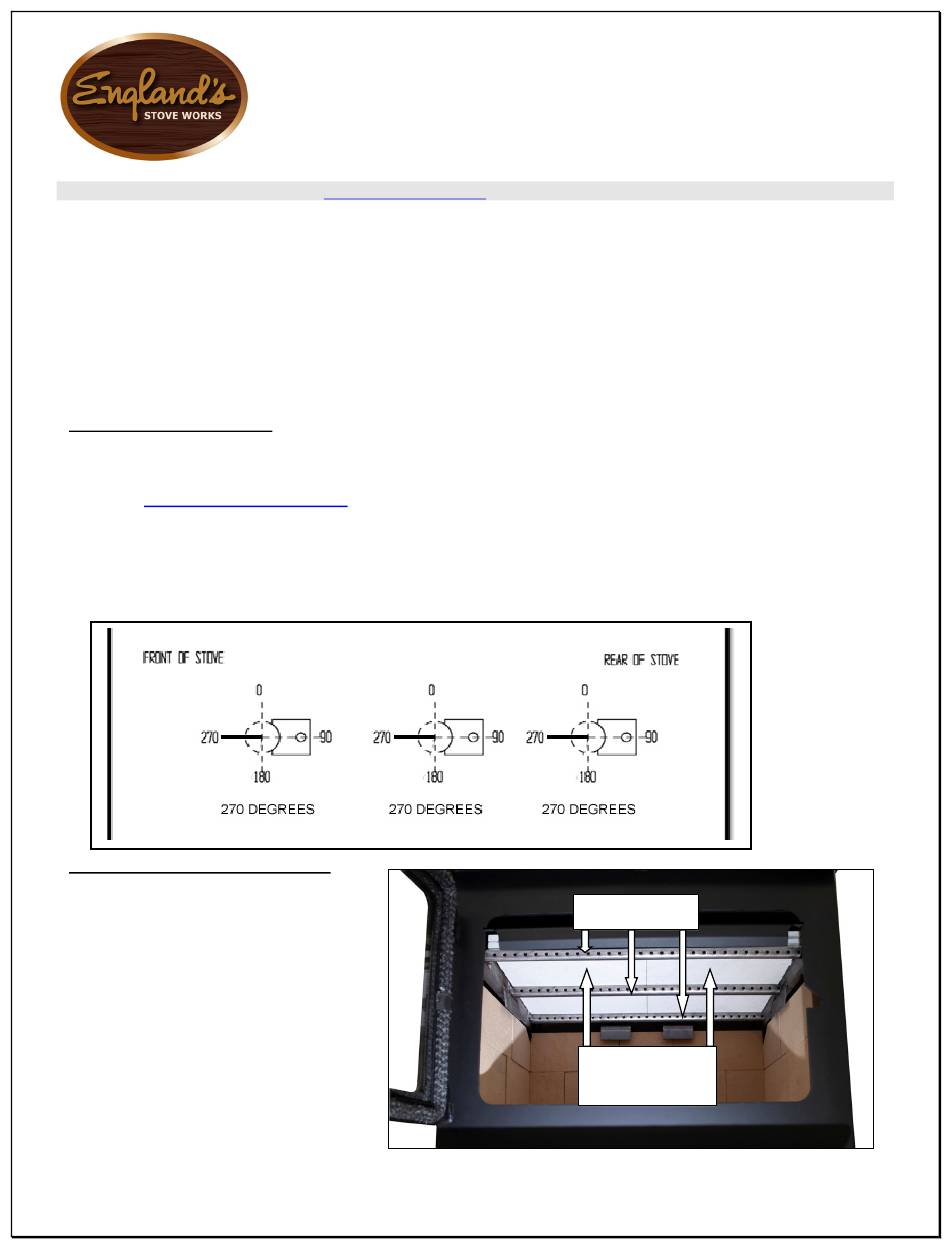

Make sure to install the tubes in the correct order. (Front to Back, as shown below)
Ceramic fiberboard replacement
There are four fiber boards
located in the top of this stove, in
two layers. While the bottom layer is
oriented 'North/South' as shown, the
top layer is oriented 'East/West'. To
replace a cracked or broken board,
first remove the front burner tube.
Then, remove the board you need to
replace. Install the new board (the
boards should sit flush together side
by side). Replace the tube previously
removed.
