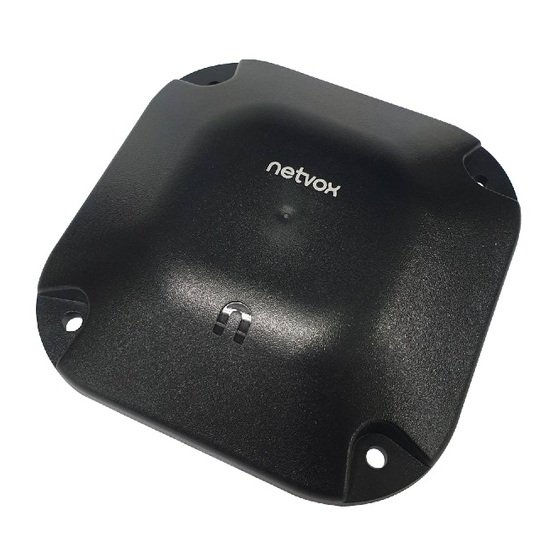

R719A
Wireless Surface-Mounted Parking Sensor
Wireless Surface-Mounted
Parking Sensor
R719A
User Manual
Copyright© Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall
not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without
prior notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for netvox R719A
Summary of Contents for netvox R719A
- Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ..........................2 2. Appearance ..........................2 3. Features ............................ 3 4. Set up Instruction ........................3 5. Data Report ..........................5 5.1 Example of ReportDataCmd ....................5 5.2 Example of Report Configuration ..................7 5.3 Geomagnetic Threshold Configuration ................8 5.4 Example for MinTime/MaxTime logic ................ -
Page 3: Introduction
1. Introduction The R719A is a parking monitoring device which is the Class A device based on the LoRaWAN protocol of Netvox. It can monitor whether there is a parking space available in the parking lot. It is compatible with the LoRaWAN protocol. -
Page 4: Features
⚫ Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne ⚫ Improved power management for longer battery life Note: Please refer to http://www.netvox.com.tw/electric/electric_calc.html. At this website, users can find battery life for various models at different configurations. 1. Actual range may vary depending on the environment. - Page 5 Reed Switch Function The magnet close to the top Restore to factory setting / Turn off cover for 10 seconds The magnet close to the top The device is in the network: sends a report cover shortly Sleeping Mode Sleeping period: Min Interval. The device is on and in the When the reportchange exceeds setting value: send a data report according to Min Interval.
-
Page 6: Data Report
The device report interval will be programmed based on the default firmware which may vary. The interval between two reports must be ReportMinTime. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://cmddoc.netvoxcloud.com/cmddoc to resolve uplink data. - Page 7 Example of Uplink: 0159012401000000000000 byte (01): Version byte (59): DeviceType 0x59 — R719A byte (01): ReportType byte (24): 3.6 V — 24(Hex) = 36 (Dec), 36*0.1v = 3.6v byte (01): CarOnOff — on byte (00): Reserved For Netvox Internal Use...
-
Page 8: Example Of Report Configuration
FPort: 0x07 Bytes Var (Fix=8 Bytes) CmdID DeviceType NetvoxPayLoadData CmdID– 1 byte DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype.doc NetvoxPayLoadData– var bytes (Max=9bytes) Device Description Device NetvoxPayLoadData Type Config MinTime... -
Page 9: Geomagnetic Threshold Configuration
Type SetDetect 0x03 DetectThreshold(2bytes) Reserved (7Bytes,Fixed 0x00) ThresholdReq SetDetect 0x83 Status(0x00_success) Reserved (8Bytes,Fixed 0x00) ThresholdRsp R719A 0x59 GetDetect 0x04 Reserved (9Bytes,Fixed 0x00) ThresholdReq GetDetect 0x84 DetectThreshold(2bytes) Reserved (7Bytes,Fixed 0x00) ThresholdRsp (1) Configure the device geomagnetic threshold parameter to 50 (default is 40) - Page 10 MaxTime Sleeping(MinTime) sleeping sleeping sleeping Wakes up and collects data Wakes up and collects data Wakes up and collects data REPORTS 3.6V REPORT 3.6V 3.6V Does not report Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V. MaxTime Wakes up and collects data Users push the button,...
-
Page 11: Installation
6. Installation 1. R719A is installed in the middle of the parking space with 4 2. Place a magnet above the reed switch (the U-shaped part screws ( purchased by users). of the device) for 3 seconds to turn it on, connect to the... -
Page 12: Information About Battery Installation
7. Information about Battery Installation Warning: 1. When replacing the battery, it must be operated by professionals. 2. Please use two ER18505 batteries for the device, and a single battery is 3.6V. 3. Please note that the positive and negative poles of the battery are not reversed. Step 1: Unscrew the six screws of the rear lock cover on the back of the device with a screwdriver as the red area in Figure 1. - Page 13 Step 3: Put the battery into the battery slot of the device. The side of the battery slot marked with is the positive pole, and the side marked with is the negative pole (with a spring). The side with of the battery is the positive electrode, and the side with is the negative electrode as Figure 3.
-
Page 14: Installation Methods
Fully Buried Installation Ground Note: To install the R719A on concrete or asphalt, users need to screw the M6 hex expansion screws for direct installation and drilling. Users could use the resin to fill the holes after drilling. 7.2. Device Interference Source 1. -
Page 15: Precautions For Battery Use
7.3 Precautions For Battery Use If the battery needs to be replaced within 10 minutes after the device is turned on, users need to the magnet approach to the top cover for 10 seconds to restore the factory settings after replacing the battery. (The hardware has its own anti-battery passivation power supply to actively eliminate the battery hysteresis.) Then, turn on the device, and it can work normally.
