eNet radio transmitter modules
eNet radio transmitter module 1-gang
Art. No. : FM4001M
eNet radio transmitter module 2-gang
Art. No. : FM4002M
eNet radio transmitter module 3-gang
Art. No. : FM4003M
eNet radio transmitter module 4-gang
Art. No. : FM4004M
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Keep button cells out of reach of children! If button cells are swallowed, get medical help
immediately.
Risk of explosion! Do not throw batteries into fire.
Risk of explosion! Do not recharge batteries.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
These instructions are an integral part of the product, and must remain with the end
customer.

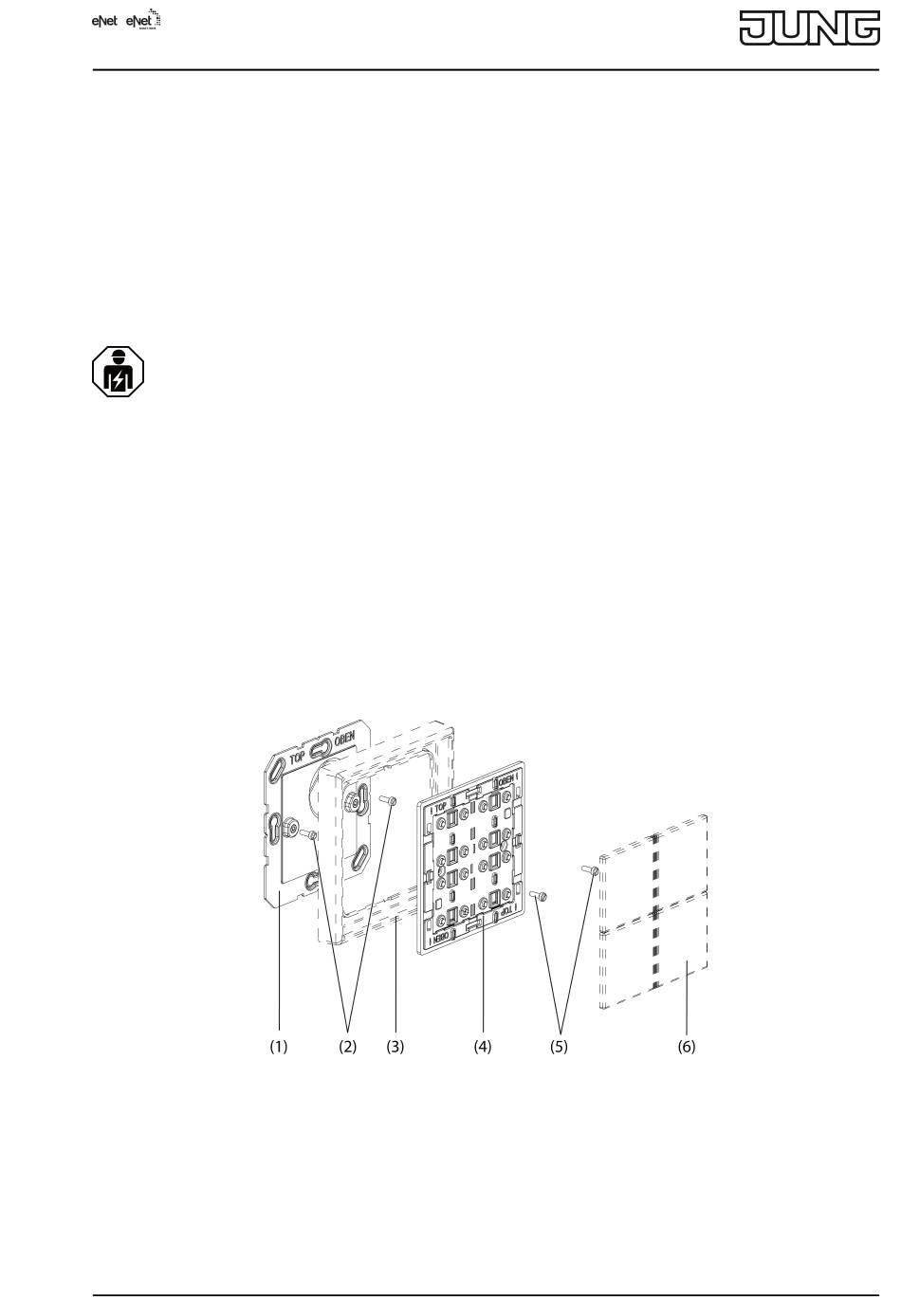

2 Device components
(1) Base plate
(2) Fastening screws for the base plate
(3) Design frame
(4) Wall transmitter module with adapter frame (see adapter frame assembly instructions)
(5) Fastening screws for the wall transmitter module
(6) Covers
32579233
J082579233
Figure 1: 4-gang radio wall transmitter module
1/10
22.03.2017
Advertisement
Table of Contents
Related Manuals for Jung FM4002M
Summary of Contents for Jung FM4002M
- Page 1 1-gang Art. No. : FM4001M eNet radio transmitter module 2-gang Art. No. : FM4002M eNet radio transmitter module 3-gang Art. No. : FM4003M eNet radio transmitter module 4-gang Art. No. : FM4004M...
-
Page 2: Operation
eNet radio transmitter modules 3 Function Intended use Radio sensor for transmission of switching, dimming, blind movement and scene commands Operation with radio actuators from the eNet system Product characteristics Display of the actuator status for status poll by a green LED per channel Display of the transmission status by a red LED Switch-on brightness of dimmer actuators can be saved. - Page 3 eNet radio transmitter modules Channel assignment of the wall transmitter Figure 2: Channel assignment of wall transmitter module 1-gang, 2-gang, 3-gang and 4-gang Operating light Switching: Press button for less than 0.4 seconds. Dimming: Press the button for longer than 0.4 seconds. The dimming process ends when the button is released.
- Page 4 eNet radio transmitter modules Set required switch-on brightness. Press button over entire surface for longer than 4 seconds. The light is briefly switched off and switched on again to the switch-on brightness. Switch- on brightness is saved. Polling sum status The buttons of a channel are set as channel buttons.
- Page 5 eNet radio transmitter modules Figure 3: Cutting the adhesive pads for multiple combinations i If necessary, after mounting the wall transmitter in the CD program, carefully remove the excess adhesive film in the corners. 5.2 Commissioning DANGER! Insert battery WARNING! Risk of chemical burns.
- Page 6 eNet radio transmitter modules Figure 4: Activating programming mode for channel buttons Press the top left and bottom right buttons simultaneously for longer than 4 seconds (figure 4). Red LED flashes slowly. The radio sensor is in programming mode for approx. 1 minute. Switch the actuator to programming mode (see actuator instructions).
- Page 7 eNet radio transmitter modules Figure 5: Activating programming mode for scene buttons Press the top right and bottom left buttons simultaneously for 4 seconds (figure 5). The red LED flashes slowly. The function sensor is in programming mode. Switch radio actuator to programming mode (see radio actuator instructions). Press the scene button briefly.
-
Page 8: Technical Data
eNet radio transmitter modules Press the top left and bottom right buttons simultaneously for longer than 20 seconds (figure 4). The red status LED flashes after 4 seconds. After 20 seconds the LED flashes faster. Press the desired button briefly. The red LED flashes more slowly. -
Page 9: Troubleshooting
eNet radio transmitter modules Operating mode App use, lock-out protection, Setting the type of scene used forced operation, wind alarm, for a scene button. Setting is sun protection, twilight always made in pairs. Basic setting: App use Advanced settings Parameter name Setting options, Basic Explanations setting... -
Page 10: Warranty
Art. No. ..404TSA.. 6.5 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type Art. No. FM4001M / FM4002M / FM4003M / FM4004M corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
