Radio Management
Flat wall-mounted radio transmitter
Flat wall-mounted radio transmitter 1-channel
Art.-No.: ..41F..
Flat wall-mounted radio transmitter 2-channel
Art.-No.: ..42F..
Flat wall-mounted radio transmitter 4-channel
Art.-No.: ..44F..
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Keep button cells out of reach of children! If button cells are swallowed, get medical help
immediately.
Risk of explosion! Do not throw batteries into fire.
Risk of explosion! Do not recharge batteries.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
These instructions are an integral part of the product, and must remain with the end
customer.

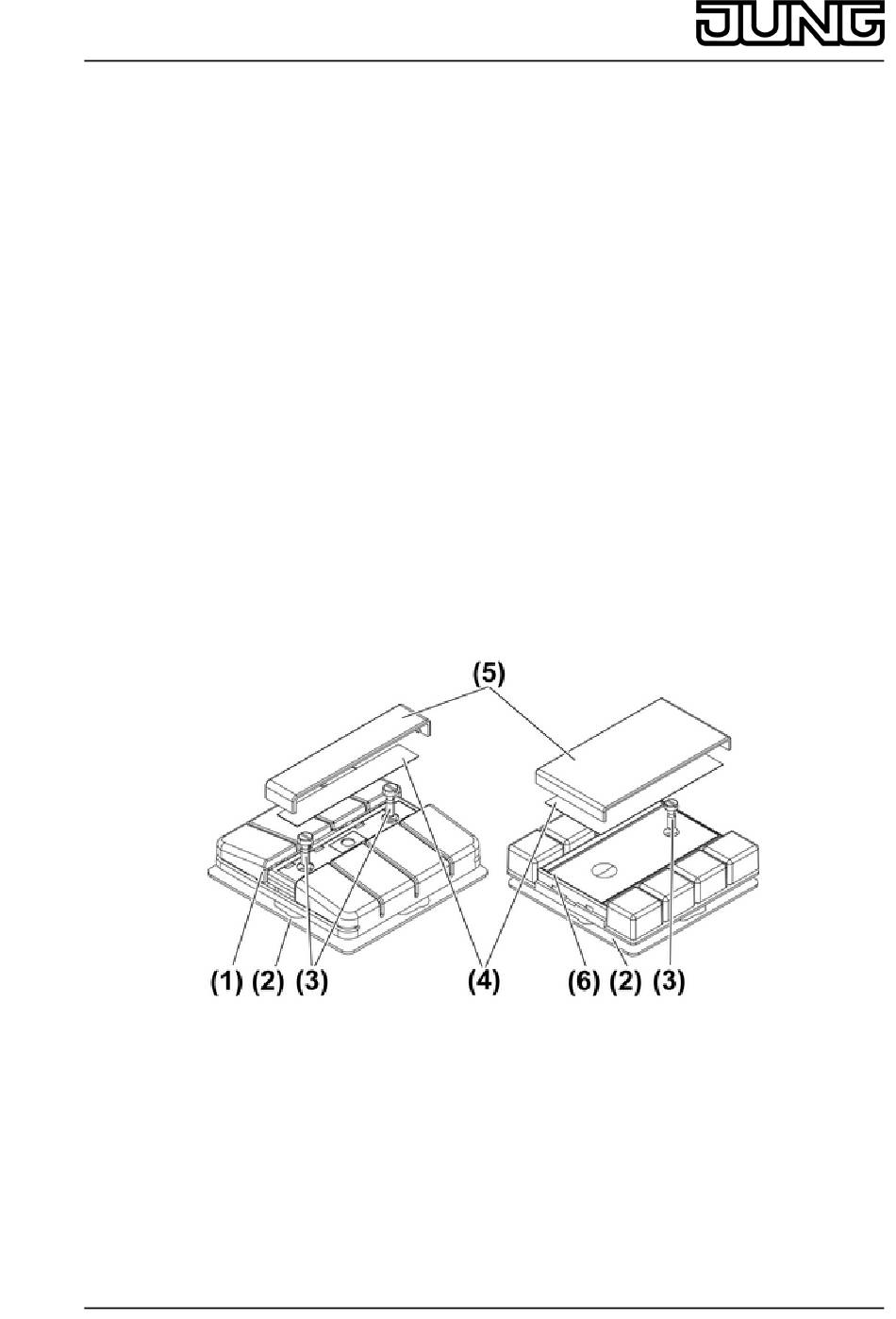

2 Device components
(1) Wall transmitter, CD range
(2) Base plate
(3) Fastening screws
(4) Inscription panel
(5) Inscription panel cover
(6) Wall transmitter, LS range
32532713
J:0082532713
Figure 1
1/8
09.12.2010
