Jung FUS22UP Operating Instructions Manual

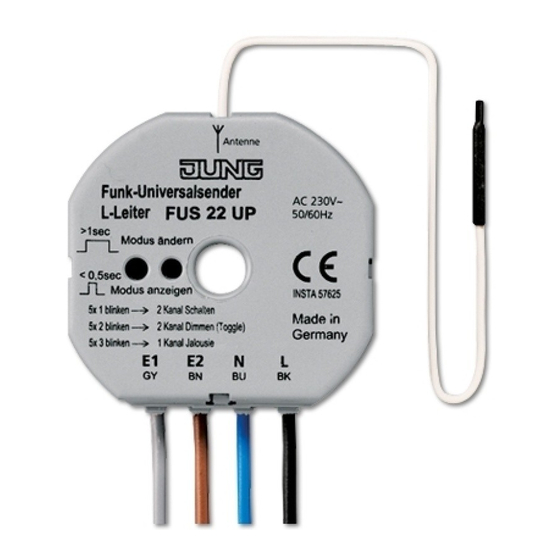

Universal radio transmitter, l conductor
Hide thumbs Also See for FUS22UP:

Advertisement

Quick Links

Download this manual
Radio Management
Universal radio transmitter, L conductor
Universal radio transmitter, L conductor
Art. No. : FUS22UP
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. In so doing, take all the circuit breakers into account, which support dangerous
voltages to the device and or load.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
Do not connect any motors in parallel with the transmitter. Device can be damaged.
Do not shorten, extend or strip the antenna. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Radio-Transmitter
(2) LED
(3) Operating mode button
(4) Antenna
3 Function
System information
By statute, the transmitting power, the reception characteristics and the antenna cannot be
changed.
The range of a radio system from the transmitter to the receiver depends on various
circumstances.
82547943
J0082547943
Figure 1
1/10
04.08.2016

Advertisement

loading
Need help?

Need help?

Do you have a question about the FUS22UP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jung FUS22UP

Summary of Contents for Jung FUS22UP

  • Page 1 Radio Management Universal radio transmitter, L conductor Universal radio transmitter, L conductor Art. No. : FUS22UP Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.

  • Page 2: Operation

    Radio Management Universal radio transmitter, L conductor The range of the system can be optimised by selecting the optimal installation location, taking into account the structural circumstances. Figure 2: Reduced range due to structural obstacles Example of penetration of various materials: Material Penetration Wood, Plaster, Plasterboard...
  • Page 3 Radio Management Universal radio transmitter, L conductor less than 1 second Switch on/off longer than 1 second Dim brighter/darker i Pressing the installation button causes the telegram type in the radio transmitter to change- over. Therefore after local control on the radio receiver or control by another radio transmitter the installation button may have to be pressed twice in order to achieve the desired response.
  • Page 4 Radio Management Universal radio transmitter, L conductor Connecting and mounting the devices Figure 3 Figure 4: Push-button connection diagram, operating modes A, B, C 82547943 4/10 04.08.2016 J0082547943...
  • Page 5 Radio Management Universal radio transmitter, L conductor Figure 5: Switch connection diagram, operating mode B Figure 6: Blind switch connection diagram, operating mode D 82547943 5/10 04.08.2016 J0082547943...
  • Page 6 Radio Management Universal radio transmitter, L conductor Figure 7: Blind control connection diagram, operating mode D i For mounting outside of an appliance box, e.g. installation in surface-mounted junction boxes, ensure sufficient protection against electric shock. i The radio transmitter may not be connected in parallel with a blind motor. Maintain distance from large-area metal objects, e.g.
  • Page 7 Radio Management Universal radio transmitter, L conductor Using the lamp terminals Figure 8: Stripping length Strip 9 - 11 mm of the cable (figure 8). Figure 9: Connection of the fine-wire cable Push the terminal together on the side with the square opening and connect a fine-wire cable (figure 9).
  • Page 8 Radio Management Universal radio transmitter, L conductor Push the single-stranded cable into the round opening on the installation side up to the stop (figure 10). 5.2 Commissioning DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. Before working on the device, cover up live parts in the working environment.
  • Page 9 Check routing of antenna. Laying the antenna stretched out increases the range. Using a radio repeater. 8 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type Art. No. FUS22UP corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
  • Page 10 Radio Management Universal radio transmitter, L conductor ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82547943 10/10 04.08.2016 J0082547943...
