Jung FMS 4 UP Operation Manual

Jung FMS 4 UP Operation Manual

Radio multifunction transmitter
Hide thumbs

Advertisement

Quick Links

Download this manual
Radio Management
Radio multifunction transmitter
Radio multifunction transmitter
Art.-No.: FMS 4 UP
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Keep button cells out of reach of children! If button cells are swallowed, get medical help
immediately.
Risk of explosion! Do not throw batteries into fire.
Risk of explosion! Do not recharge batteries.
Do not shorten, extend or strip the antenna. Device can be damaged.
Insulate wires which are not required and do not connect them to parts carrying voltage.
Otherwise the device could be destroyed.
These instructions are an integral part of the product, and must remain with the end
customer.

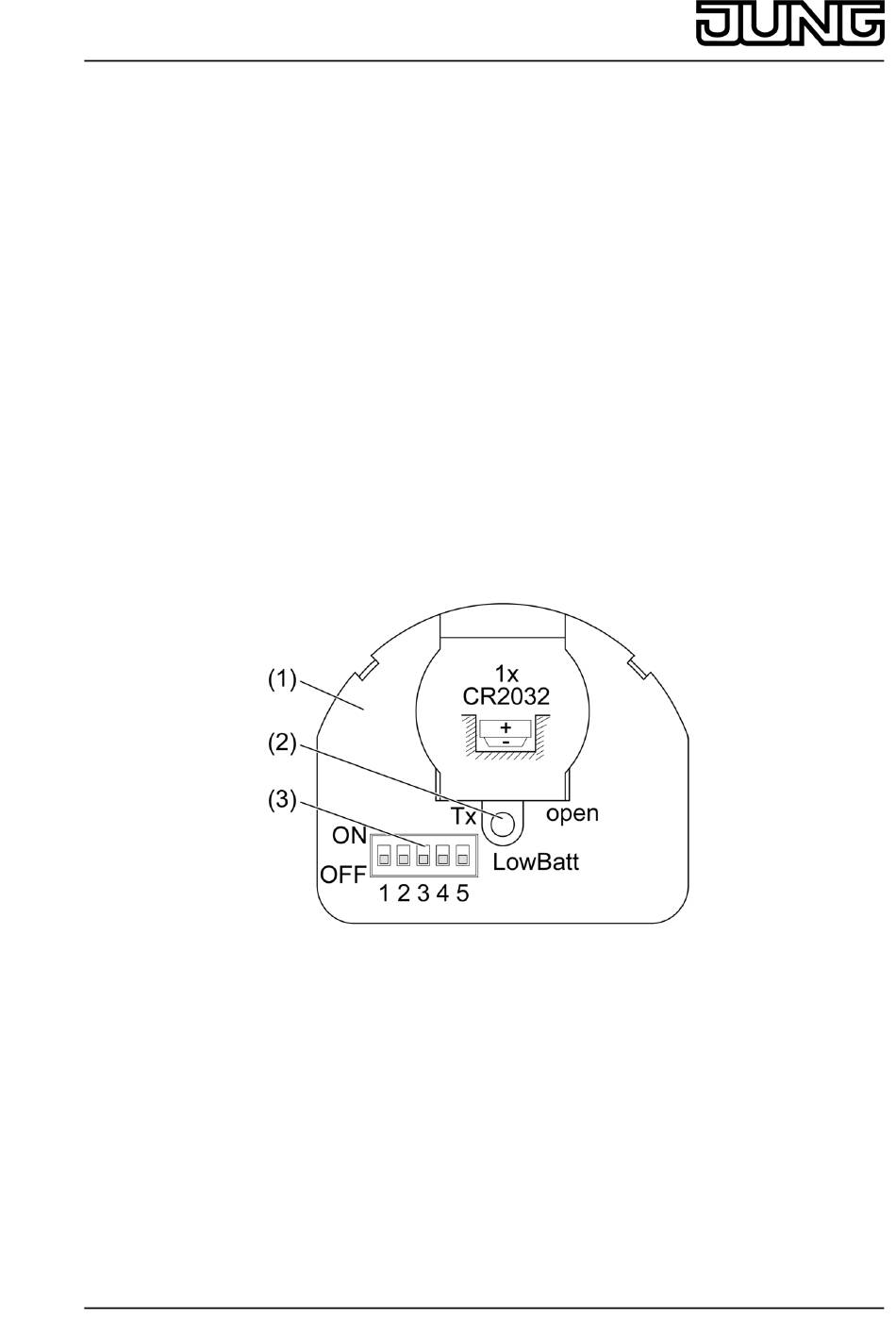

2 Device components
(1) Transmitter
(2) Red LED
(3) Microswitch
3 Function
System information
By statute, the reception characteristics and the antenna cannot be changed.
The device may be operated in all EU and EFTA countries.
The declaration of conformity can be viewed on our website.
The range of a radio system from the transmitter to the receiver depends on various
circumstances.
32535013
J:0082535013
picture 1
1/11
13.08.2010
