  • Page 1 Operation manual...

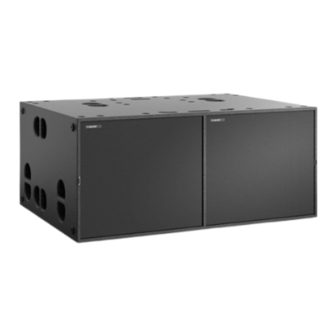

  • Page 2 Because of its extremely stiff yet lightweight membranes the BSX is able to deliver frequen- cies of up to 120 Hz clean and true to its impulses. As a full range sub the BSX is directly combinable with the M, T, C or VERA systems.
  • Page 3 Operation manual BSX Notes on the products Before using the device, carefully read the operating manual and keep it with the BSX loudspe- Read manual before use! aker. General information Operation manual: OM-BSX Version 2.1 en, 07/2023 © by TWAMBO 2023; all rights reserved.
  • Page 4: Table Of Contents

    Possible horizontal system setups ................. 15 4.6.1 Two B18 loudspeaker on BSX loudspeaker ............15 4.6.2 Variant 1: two B18 loudspeaker laid on BSX loudspeaker ......... 16 4.6.3 Variant 2: two B18 loudspeaker laid on BSX loudspeaker ......... 16 4.6.4 Two B30 loudspeaker laid on BSX loudspeaker ..........
  • Page 5: Safety | Intended Use

    1. Safety | Intended use Please adhere to the following safety instructions to avoid risks when operating loudspeakers. The BSX loudspeaker was developed for use in professional sound systems. The loudspea- ker may only be used by trained and qualified personnel.
  • Page 6 Operation manual BSX Ensure that the loudspeaker is not exposed to permanent thermal overloads. Thermal over- loads may cause a fire and result in serious personal injury and property damage. WARNING Note that TWAMBO does not provide a warranty for damage that can be attributed to this type of overload and therefore cannot be held liable for any secondary damage.
  • Page 7: Overview

    Operation manual BSX 2. Overview Components Figure 2.1 - Overview Milling for rubber feet for safely stacking loudspeakers Ergonomic carrying handles (12 pieces) 18 mm multiplex enclosure – polyurea surface finish Rubber feet (8 pieces) Type label Standard connection panel...
  • Page 8: Operation Modes

    The BSX loudspeaker can be operated in two operation modes. The operation mode is selec- ted by choosing the preset in the system amplifier. 2.2.1 Full In full mode, the BSX has a higher upper cutoff frequency. This mode is recommended for operating the BSX with tops only. 2.2.2 Infra Infra operating mode is recommended when using the BSX loudspeaker in a system with addi- tional subwoofers.
  • Page 9: Technical Specifications

    Operation manual BSX 3. Technical specifications Data sheet Drivers 2x 21“ LF Frequency response 27 - 120 Hz Power handling (program/Peak) 2x 3600 / 2x 7200 W Impedance 2x 4 Ω Max. SPL / 1 m 142 dB Dimensions (h x w x d)
  • Page 10: Commissioning

    WARNING Make sure the speakers are securely fastened to prevent personal injury and property damage. WARNING TW AUDiO recommends using only the accessories specified by TW AUDiO for securing and mounting loudspeakers. NOTE Please note that setting up the system setups always requires two, preferably four persons!
  • Page 11: Operation

    Before connecting the loudspeaker to the amplifier, ensure that the right preset has been loaded. NOTE Using a wrong, out dated or a preset not provided by TW AUDiO can lead to destruction of the speaker. Make sure that the amplifier’s specifications meet the requirements. Using an amplifier that doesn’t meet the specifications can destroy the loudspeaker.
  • Page 12: Wind Load

    WARNING Possible vertical system setups Additional loudspeakers can be placed on top of the BSX loudspeaker in standing, vertical operation. Make sure that the existing millings for rubberfeets (Pos.1 - figure 2.1) are used for a safe stacking of the loudspeakers.
  • Page 13: T24(N) Loudspeaker On Bsx Loudspeaker

    Operation manual BSX 4.5.1 T24(N) loudspeaker on BSX loudspeaker Figure 4.5.1 - T24(N) on BSX loudspeaker 4.5.2 B30 loudspeaker on BSX loudspeaker Figure 4.5.2 - B30 on BSX loudspeaker...
  • Page 14: Two Bsx Loudspeakers On Top Of Each Other

    Operation manual BSX 4.5.3 Two BSX loudspeakers on top of each other Figure 4.5.3 - BSX on BSX loudspeaker...
  • Page 15: Possible Horizontal System Setups

    Operation manual BSX Possible horizontal system setups Additional loudspeakers can be placed on top of the BSX loudspeaker in standing, horizontal operation. Make sure that the existing millings for rubberfeets (Pos.1 - figure 2.1) are used for a safe stacking of the loudspeakers.
  • Page 16: Variant 1: Two B18 Loudspeaker Laid On Bsx Loudspeaker

    Operation manual BSX 4.6.2 Variant 1: two B18 loudspeaker laid on BSX loudspeaker Figure 4.6.2 - two B18 loudspeaker on BSX loudspeaker 4.6.3 Variant 2: two B18 loudspeaker laid on BSX loudspeaker Figure 4.6.3 - two B18 loudspeaker on BSX loudspeaker...
  • Page 17: Two B30 Loudspeaker Laid On Bsx Loudspeaker

    Operation manual BSX 4.6.4 Two B30 loudspeaker laid on BSX loudspeaker Figure 4.6.4 - two B30 loudspeaker on BSX loudspeaker 4.6.5 Three B30 loudspeaker on BSX loudspeaker Figure 4.6.5 - three B30 on BSX loudspeaker...
  • Page 18: Variant 1: Two Vera S32 Loudspeaker On Bsx Loudspeaker

    Operation manual BSX 4.6.6 Variant 1: two VERA S32 loudspeaker on BSX loudspeaker Figure 4.6.6 - two VERA S32 loudspeaker on BSX loudspeaker 4.6.7 Variant 2: two VERA S32 loudspeaker on BSX loudspeaker Figure 4.6.7 - two VERA S32 loudspeaker on BSX loudspeaker...
  • Page 19: Two Vera S33 Loudspeaker On Bsx Loudspeaker

    Operation manual BSX 4.6.8 Two VERA S33 loudspeaker on BSX loudspeaker Figure 4.6.8 - two VERA S33 loudspeaker on BSX loudspeaker 4.6.9 One VERA S33 loudspeaker on BSX loudspeaker Figure 4.6.9 - VERA S33 on BSX loudspeaker...
  • Page 20: Bsx Loudspeaker Laid On Bsx Loudspeaker

    Operation manual BSX 4.6.10 BSX loudspeaker laid on BSX loudspeaker Figure 4.6.10 - BSX on BSX loudspeaker...
  • Page 21: Variant 1: Two Bsx Loudspeaker Placed On Bsx Loudspeaker

    Operation manual BSX 4.6.11 Variant 1: two BSX loudspeaker placed on BSX loudspeaker Figure 4.6.11 - two BSX loudspeaker on BSX loudspeaker 4.6.12 Variant 2: two BSX loudspeaker placed on BSX loudspeaker Figure 4.6.12 - two BSX loudspeaker on BSX loudspeaker...
  • Page 22: One Vera L24 Loudspeaker On Bsx Loudspeaker

    Operation manual BSX 4.6.13 One VERA L24 loudspeaker on BSX loudspeaker Figure 4.6.13 - VERA L24 loudspeaker on BSX loudspeaker...
  • Page 23: Transport And Storage

    Operation manual BSX 5. Transport and Storage Due to the BSX loudspeaker weighing over 100 kg [220.46 lbs.], four persons are required to handle and transport the unit. To transport the unit with a single person, TW AUDiO recommends the storage on the back rollers.
  • Page 24: Ce Conformity Declaration

    Operation manual BSX 6. CE Conformity Declaration Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and con- struction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives.
  • Page 25: Disposal

    Operation manual BSX 7. Disposal It is prohibited to dispose of used electrical equipment with household refuse. All TWAMBO GmbH products are so-called B2B-products. This means that they are sold by a commercial business to a commercial business. TWAMBO products that bear the trash can symbol shown here may only be disposed of by TWAMBO.
  • Page 26 Operation manual BSX TWAMBO GmbH Karl-Hofer-Str. 42 14163 Berlin Germany Phone: + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
