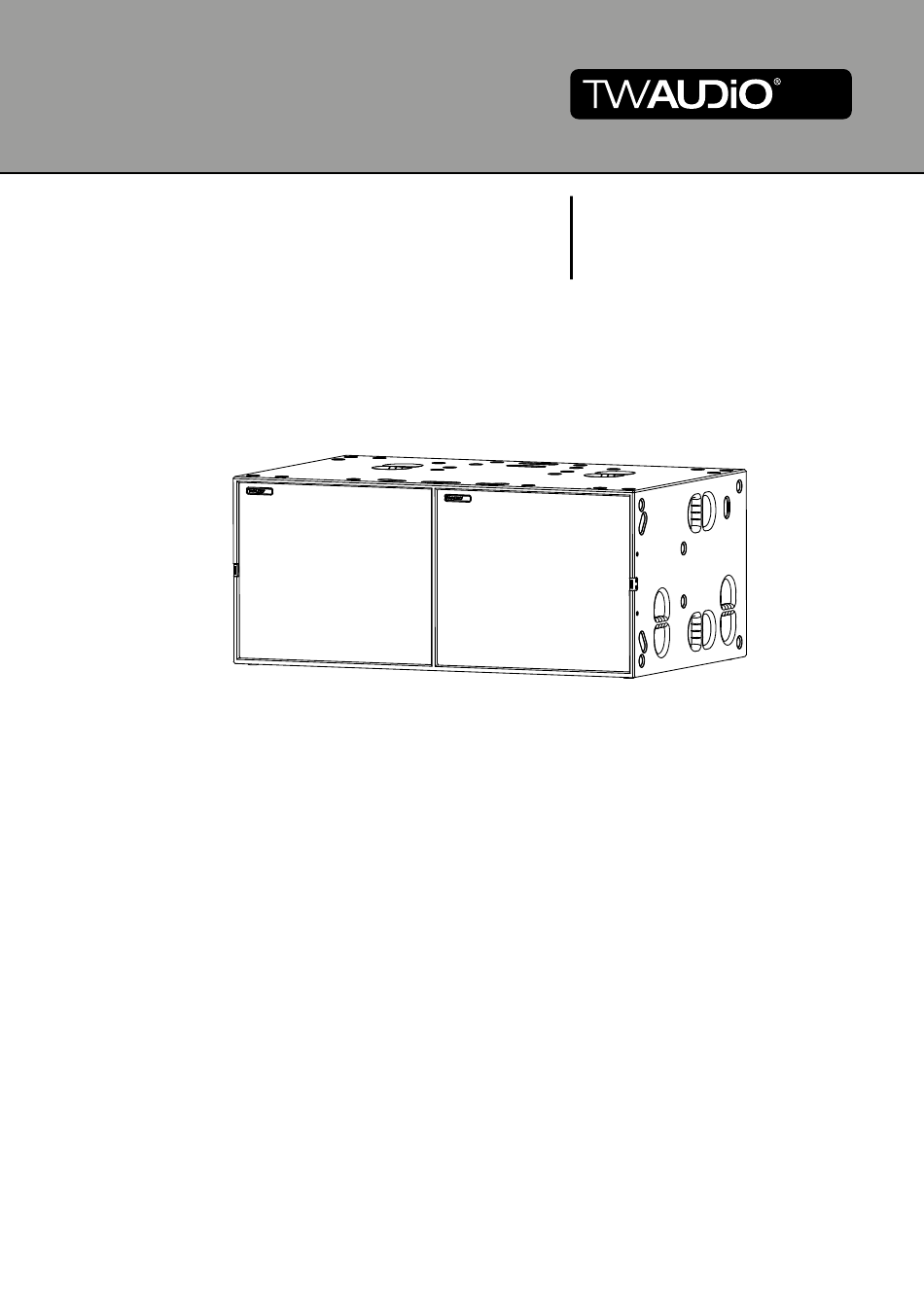

- Page 1 Operation manual...
- Page 2 Because of its extremely stiff yet lightweight membranes the BSX is able to deliver frequen- cies of up to 120 Hz clean and true to its impulses. As a full range sub the BSX is directly combinable with the M, T, C or VERA systems.
- Page 3 Operation manual BSX Notes on the products Before using the device, carefully read the operating manual and keep it with the BSX loudspe- Read manual before use! aker. General information Operation manual: OM-BSX Version 1.1 en, 02/2019 © by TW AUDiO 2019; all rights reserved.
-
Page 4: Table Of Contents
Operation manual BSX Content 1. Safety | Intended use ...................... 5 2. Overview ........................7 Components ......................7 Operation modes ..................... 8 2.2.1 Full ........................8 2.2.2 Infra ........................8 3. Technical specifications ....................9 Data sheet ....................... 9 Connection diagram ....................9 4. -
Page 5: Safety | Intended Use
1. Safety | Intended use Please adhere to the following safety instructions to avoid risks when operating loudspeakers. The BSX loudspeaker was developed for use in professional sound systems. The loudspea- ker may only be used by trained and qualified personnel. - Page 6 WARNING Note that TW AUDiO does not provide a warranty for damage that can be attributed to this type of overload and therefore cannot be held liable for any secondary damage.
-
Page 7: Overview

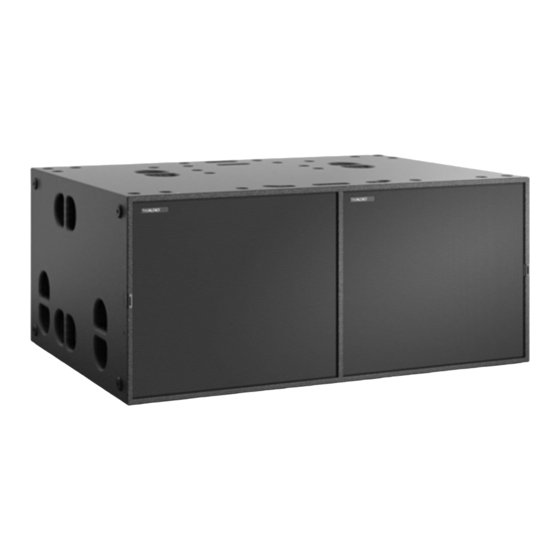

Operation manual BSX 2. Overview Components Figure 2.1 - Overview Milling for rubber feet for safely stacking loudspeakers Ergonomic carrying handles (12 pieces) 18 mm multiplex enclosure – polyurea surface finish Rubber feet (8 pieces) Type label Standard connection panel... -
Page 8: Operation Modes
The BSX loudspeaker can be operated in two operation modes. The operation mode is selec- ted by choosing the preset in the system amplifier. 2.2.1 Full In full mode, the BSX has a higher upper cutoff frequency. This mode is recommended for operating the BSX with tops only. 2.2.2 Infra Infra operating mode is recommended when using the BSX loudspeaker in a system with addi- tional subwoofers. -
Page 9: Technical Specifications
Operation manual BSX 3. Technical specifications Data sheet Drivers 2x 21“ LF Frequency response 27 - 120 Hz Power handling (program/Peak) 2x 3600 / 2x 7200 W Impedance 2x 4 Ω Max. SPL / 1 m 142 dB Dimensions (h x w x d) -
Page 10: Commissioning
Operation manual BSX 4. Commissioning Setup The BSX loudspeaker is designed for standing, vertikal and horizontal operation. Make sure that all system structures are located on a firm, level surface and that the surface can bear the total weight! WARNING Make sure the speakers are securely fastened to prevent personal injury and property damage. -
Page 11: Operation
NOTE Using the wrong preset or a preset not provided by TW AUDiO preset can destroy the speaker. Make sure that the amplifier’s specifications meet the requirements. Using an amplifier that doesn’t meet the specifications can destroy the loudspeaker. -
Page 12: Connecting The Cable
(1/2) are correct. Incorrect connection can lead to a significant change in the loudspeaker’s sound characteristics and may damage the driver. The pin connections of the BSX loudspeaker can be found in section 3.2 (“Connection dia- gram”) on page 9. -
Page 13: Transport And Storage
Operation manual BSX 5. Transport and Storage Due to the BSX loudspeaker weighing over 100 kg [220.46 lbs.], four persons are required to handle and transport the unit. To transport the unit with a single person, TW AUDiO recommends the storage on the back rollers. -
Page 14: Ce Conformity Declaration
Operation manual BSX 6. CE Conformity Declaration Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and construction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives. -
Page 15: Disposal
It is prohibited to dispose of used electrical equipment with household refuse. All TW AUDiO GmbH products are so-called B2B-products. This means that they are sold by a commercial business to a commercial business. TW AUDiO products that bear the trash can symbol shown here may only be disposed of by TW AUDiO. - Page 16 Operation manual BSX TW AUDiO GmbH Osterholzallee 140 71636 Ludwigsburg Germany Phone : + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
