Summary of Contents for TW Audio T20

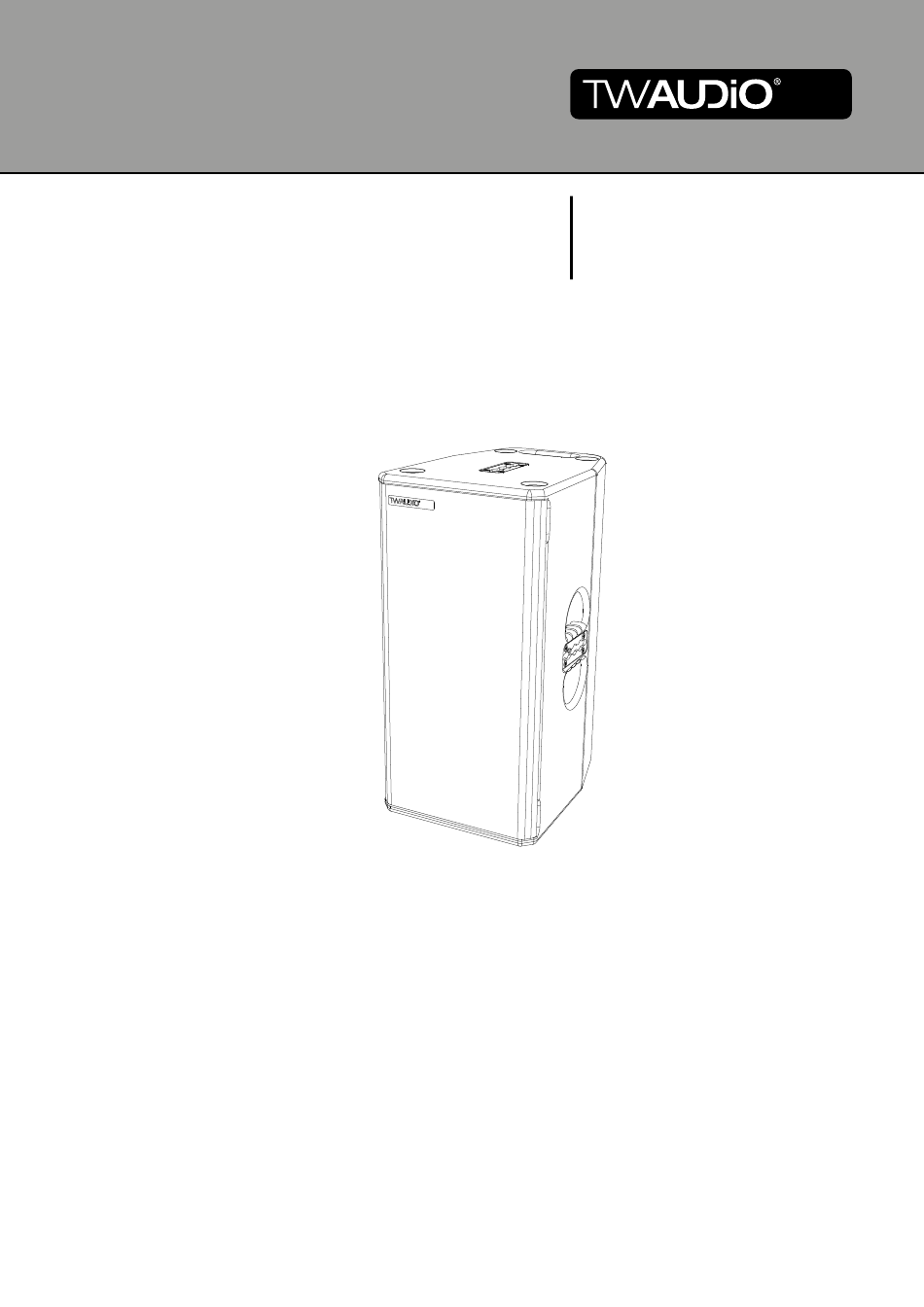

  • Page 1 Operation manual...

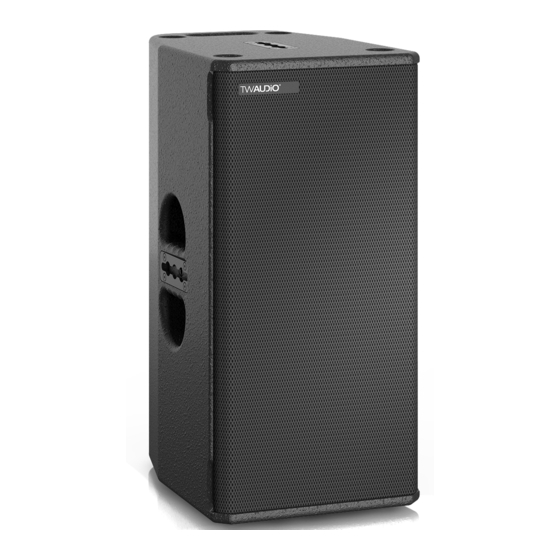

  • Page 2 Thank you for choosing a high-quality product “MADE IN GERMANY” from TW AUDiO. The T20 has been finely honed to meet the high expectations of our customers. A slim, com- pact top measuring 30 cm (11.8“) wide and comprising two 10“ woofers and a 1.4“ mid-high section, the T20 boasts a symmetrical design that makes it ideal for use both horizontally and vertically.
  • Page 3 This symbol in combination with the signal word “Tip” identifies additional information or notes that will simplify working with TW AUDiO products on the basis of practical experience. Notes on the products Before using the device, carefully read the operating manual and keep it with the T20 loudspe- Read manual aker.
  • Page 4: Table Of Contents

    Operation manual T20 Content 1. Safety | Intended use ...................... 5 2. Overview ........................7 Components ......................7 Variants ........................8 3. Technical specifications ....................10 Data sheet ......................10 Connection diagram ....................10 4. Commissioning ......................11 Setup ........................11 Rotating and changing the HF horn ...............
  • Page 5: Safety | Intended Use

    1. Safety | Intended use Please adhere to the following safety instructions to avoid risks when operating loudspeakers. The T20 loudspeaker was developed for use in professional sound systems. The loudspea- ker may only be used by trained and qualified personnel.
  • Page 6 WARNING Note that TW AUDiO does not provide a warranty for damage that can be attributed to this type of overload and therefore cannot be held liable for any secondary damage.
  • Page 7: Overview

    Operation manual T20 2. Overview Components Figure 2.1 - Overview Front grill magnetic holder (4 pieces) Phase plug 10“ cone drivers Exchangeable horn with 1.4“ compression driver Front grill 12 mm multiplex housing – Warnex texture paint surface finish Rigging plate for attaching accessory parts...
  • Page 8: Variants

    Operation manual T20 Variants The T20 loudspeaker is available in a 90° × 50° variant and in a 60° × 40° variant. The spe- cified degree values refer to the horizontal and vertical radiation characteristics of the horn. Different interchangeable horn cones can be installed for this purpose. The variant of the T20 loudspeaker can be identified on the outside of the horn cone (see figure 2.2.1).
  • Page 9 Operation manual T20 The modular design of the high frequency unit allows a quick change between the different characteristics of dispersion. The entire high frequency unit consists of the horn cone (1), the horn base (2), the driver plate and the compression driver.
  • Page 10: Technical Specifications

    Operation manual T20 3. Technical specifications Data sheet Drivers 2x 10“ LF / 1x 1,4“ HF Frequency response 60 - 18000 Hz Power handling (program/Peak) 1000 / 2000 W Impedance 8 Ω Coverage angles (h x v) 90° x 50° or 60° x 40°...
  • Page 11: Commissioning

    TW AUDiO recommends using only the accessories specified by TW AUDiO for securing and mounting loudspeakers. NOTE Please note that when operating the T20 loudspeaker without front grill, the HF horn must additionally be secured against falling out! (Sticking) WARNING...
  • Page 12: Rotating And Changing The Hf Horn

    Rotating and changing the HF horn By default, the HF horn of the T20 loudspeaker is oriented so that the horizontal beam angle is 90° and the vertical beam angle is 50°. In some situations it may be advantageous to change the emission characteristics in the HF range.
  • Page 13: Changing The Hf Horn

    4.2.2 Changing the HF horn 1. Place the T20 loudspeaker on its back, with the speaker grill facing up. Make sure to place the speaker on a clean, non-slippery surface. 2. On the lateral notches, pull the front grill away from the loudspeaker. The front grill secured with a magnetic holder for tool-free assembly.
  • Page 14: Operation

    NOTE Using the wrong preset or a preset not provided by TW AUDiO preset can destroy the speaker. Make sure that the amplifier’s specifications meet the requirements. Using an amplifier that doesn’t meet the specifications can destroy the loudspeaker.
  • Page 15: Transport And Storage

    Operation manual T20 5. Transport and Storage Due to the T20 loudspeaker weighing over 20 kg [44 lbs.], two persons are required to handle and transport the unit. To enable a single person to transport two T20 loudspeakers, TW AUDiO recommends using the CaseT20.
  • Page 16: Ce Conformity Declaration

    Operation manual T20 6. CE Conformity Declaration Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and con- struction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives.
  • Page 17: Disposal

    It is prohibited to dispose of used electrical equipment with household refuse. All TW AUDiO GmbH products are so-called B2B-products. This means that they are sold by a commercial business to a commercial business. TW AUDiO products that bear the trash can symbol shown here may only be disposed of by TW AUDiO.
  • Page 18 Operation manual T20 TW AUDiO GmbH Osterholzallee 140 71636 Ludwigsburg Germany Phone : + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
