- Page 1 Operating Manual...
- Page 2 If you lend your product to another party, inform that party of the safety-related operating procedures and hand over this operating manual. If you therefore require additional cop- ies of this operating manual, they can be obtained free of charge from TW AUDiO or downloaded from: www.twaudio.de...
- Page 3 TW AUDiO also shall not assume liability for any secondary damage (property damage and/or personal injury) nor for the failure to comply with this operating manual. TW AUDiO reserves the right to make changes that take into account the latest engi- neering advancements.
-
Page 4: Table Of Contents
Operating Manual for BSX Content Safety | Intended use .....................1 Overview ........................3 Components ........................3 Operation modes ........................ 4 Technical data ........................5 Data sheet .......................... 5 Wiring diagram ........................5 Setting up the loudspeaker ..................6 Setup ..........................6 Connecting cables ......................6 Operation .......................... -
Page 5: Safety | Intended Use
Note the operation modes described in this operating manual. Other uses are not permissible. TW AUDiO GmbH shall not be held liable for any damage that ensues from unintended use. Loudspeakers generate an electromagnetic field. Persons with pacemakers are not per- mitted to remain in the immediate vicinity of loudspeakers as the electromagnetic fields can cause pacemakers to malfunction. - Page 6 WARNING Note that TW AUDiO does not provide a warranty for damage that can be attributed to this type of overload and therefore cannot be held liable for any secondary damage.
-
Page 7: Overview

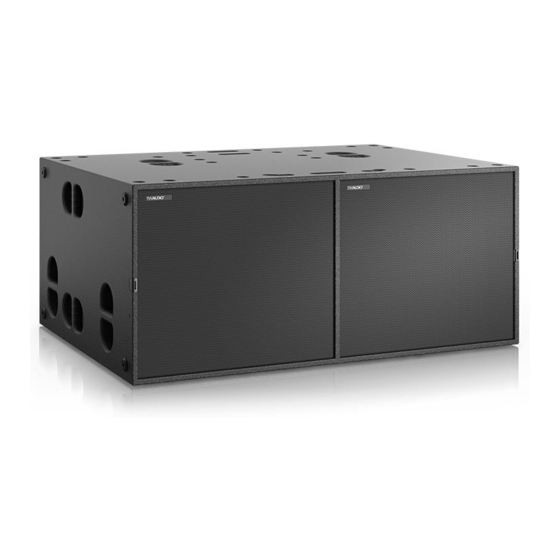

Operating Manual for BSX 2. Overview 2.1 Components Figure 2.1 - Overview Milling for rubber feet for safely stacking loudspeakers Ergonomic carrying handles (12 pieces) 18 mm multiplex enclosure – polyurea surface finish Rubber feet (8 pieces) Type label Standard connection panel... -
Page 8: Operation Modes
2.2.2. Infra Operation in Infra Preset is recommended if the BSX loudspeaker is used as an addi- tional bass loudspeaker in the system for extending the lower limit frequency. In Infra op- eration, the upper limit frequency of the loudspeaker is significantly lower than in opera- tion with Full Preset. -
Page 9: Technical Data
Operating Manual for BSX 3. Technical data 3.1 Data sheet 2x 21" LF Components 27 - 120Hz Frequency response Power handling, program/ 2x 3600 W / 2x 7200 W peak 2x 4Ω Impedance 142 dB SPL max./1 m 606 x 1406 x 900 mm [23,86 x 55,35 x 35,43 in]... -
Page 10: Setting Up The Loudspeaker
The correct presets need to be selected for the cable connections. Please note that the parallel operation of several BSX loudspeakers is not recom- mended by TW AUDiO due to the low impedance. This can cause damage to the loud- speaker and amplifier. -
Page 11: Transport And Storage
Operating Manual for BSX 5. Transport and storage As the BSX loudspeaker weighs over 100 kg [220 lbs], four people are needed to move and transport the unit. NOTE To transport the unit with a single person, TW AUDiO recommends using the wheels on the rear of the unit. -
Page 12: Ce Conformity Declaration
Operating Manual for BSX 6. CE Conformity Declaration Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and construction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives. -
Page 13: Disposal
TW AUDiO products that bear the trash can symbol shown here are only permitted to be disposed of by TW AUDiO. The loudspeaker owner is legally responsible for the disposal of used devices that do not bear this symbol. - Page 14 TW AUDiO GmbH Osterholzallee 140-2 71636 Ludwigsburg, Germany Germany P: + 49 (0) 71 41-48 89 89 0 F: + 49 (0) 71 41-48 89 89 99 E: info@twaudio.de W: www.twaudio.de...
