- Page 1 Operating Manual...

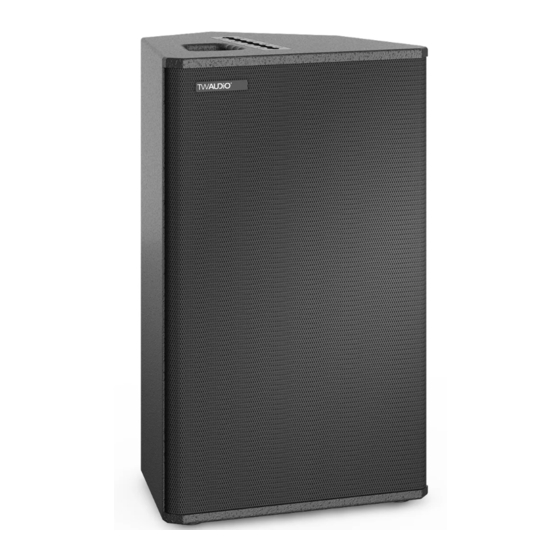

- Page 2 The M10 multifunctional speaker combines the advantages of the compact M8 with the imposing qualities of the high performance M12. The M10 is fitted with the same 1.4" mid-high driver as the M12 and the M15, enabling a deep crossover frequency, thus pro- ducing a sound that enables excellent voice intelligibility and directness.
- Page 3 TW AUDiO also shall not assume liability for any secondary damage (property damage and/or personal injury) nor for the failure to comply with this operating manual. TW AUDiO reserves the right to make changes that take into account the latest engi- neering advancements.
-
Page 4: Table Of Contents
Operating Manual M10 Content Safety | Intended use .....................1 Overview ........................3 Components ........................3 Variants ..........................4 Technical data ........................5 Data sheet .......................... 5 Wiring diagram ........................5 Setting up the loudspeaker ..................6 Setup ..........................6 Rotating the horn ........................ 6 Connecting cables ...................... -
Page 5: Safety | Intended Use
Note the operating modes described in this operating manual. Other uses are not permissible. TW AUDiO GmbH shall not be held liable for any damage that ensues from unintended use. Loudspeakers generate an electromagnetic field. Persons with pacemakers are not per- mitted to remain in the immediate vicinity of loudspeakers as the electromagnetic fields can cause pacemakers to malfunction. - Page 6 Operating Manual M10 Note that TW AUDiO does not provide a warranty for damage that can be attributed to this type of overload and therefore cannot be held liable for any secondary damage. A permanent, magnetic field is present in the immediate vicinity of loudspeakers. Ensure that objects which react sensitively to magnetic fields are not located in the immediate vicinity of the loudspeaker.
-
Page 7: Overview
Operating Manual M10 2. Overview 2.1 Components Figure 2.1 - Overview 15 mm multiplex enclosure – Warnex surface finish Ergonomic carrying handle (top and bottom) Top rigging track ® Connection panels with one SpeakON connector each at the top and bottom and two connectors on the back Rotable horn with 1.4"... -
Page 8: Variants
Operating Manual M10 2.2 Variants The M10 loudspeaker is available in right and left variants. These versions differ in the side on which the slanted wedge is located on the enclosure. 1,4" compression driver left version right version Figure 2.2 - Left and right versions... -
Page 9: Technical Data
Operating Manual M10 3. Technical data 3.1 Data sheet 1x 10" LF/ 1x 1.4" HF Components 68 – 19,000 Hz Frequency response Power handling, program/ 600/1200 W peak 8Ω Impedance 75° x 50° Coverage angles (h × v) 127 dB SPL max./1 m... -
Page 10: Setting Up The Loudspeaker
NOTE 4.2 Rotating the horn The horn of the M10 loudspeaker is mounted at the factory in such a way that the hori- zontal coverage is 75° and the vertical coverage is 50°. In some situations, it may be ad- vantageous to switch the coverage of the high frequency range. -
Page 11: Connecting Cables
The pin connections of the M10 loudspeaker can be found in section 3.2 “Wiring dia- gram” on page 5. The two connection sockets on the back of the M10 can be used to link multiple loud- speakers on a single amplifier. Note that parallel connection reduces the total imped- ance (Ω) seen by the amplifier. -
Page 12: Transport And Storage
Operating Manual M10 5. Transport and storage To enable a single person to transport two M10 loudspeakers, TW AUDiO recommends using the CaseM10. NOTE When transporting and storing the unit, it is important to ensure that the surface and front grill of the loudspeaker are not damaged. Moisture can penetrate through exposed wood surfaces and cause the wood to swell. -
Page 13: Ce Conformity Declaration
Operating Manual M10 6. CE Conformity Declaration Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and construction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives. -
Page 14: Disposal
TW AUDiO products that bear the trash can symbol shown here are only permitted to be disposed of by TW AUDiO. The loudspeaker owner is legally responsible for the disposal of used devices that do not bear this symbol. - Page 15 TW AUDiO GmbH Osterholzallee 140-2 71636 Ludwigsburg Germany P: + 49 (0) 71 41-48 89 89 0 F: + 49 (0) 71 41-48 89 89 99 E: info@twaudio.de W: www.twaudio.de...
