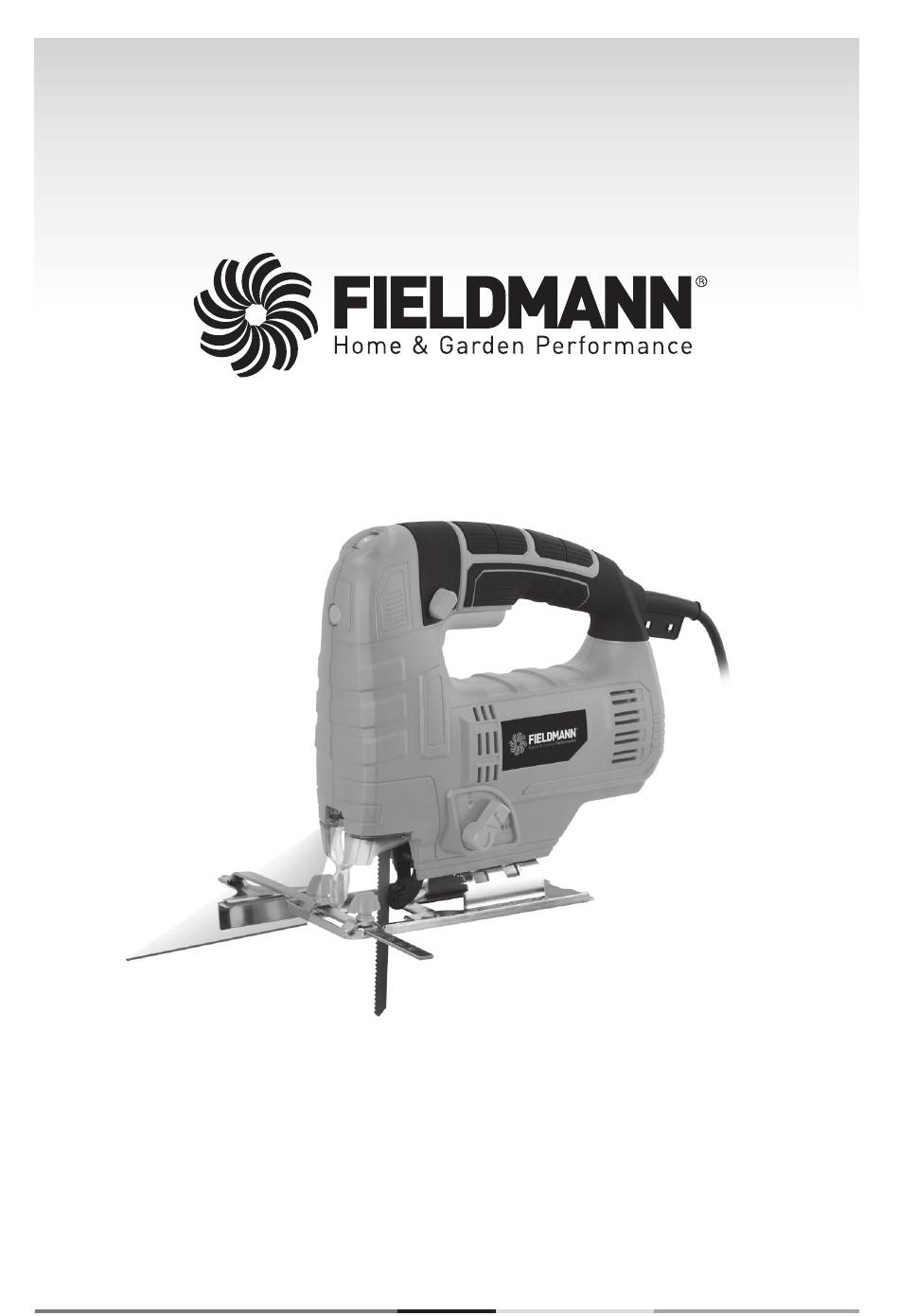

- Page 1 FDP 200711-E FDP 200805-E...
- Page 3 FDP 200711-E FDP 200805-E...
-
Page 4: Table Of Contents

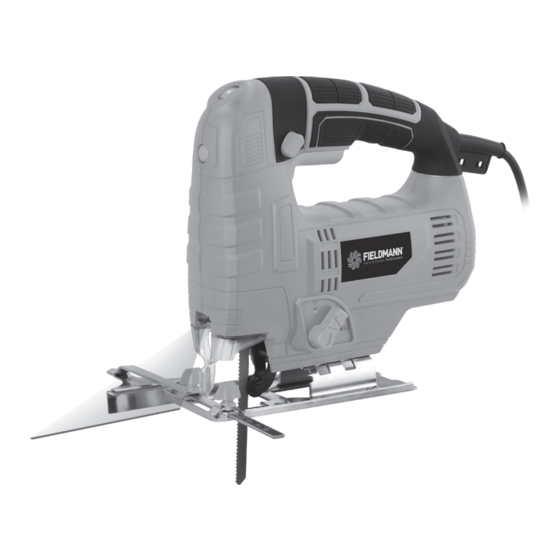

Contents Electrical Jig Saw INSTRUCTION MANUAL Thank you for your purchase of the electrical jig saw. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Manual in a safe place for future reference. CONTENTS PICTORIAL APPENDIX ........................ -
Page 5: General Safety Instructions
Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FDP 200711-E FDP 200805-E... -
Page 6: Symbols
Symbols 2. SYMBOLS The product complies with the applicable standards and regulations. Read the Instruction Manual attentively prior to use. Double-insulated. Useeyes protective equipment Use ears protective equipment Subjected to recycling ELECTRICAL JIG SAW OPERATING INSTRUCTIONS... -
Page 7: Machine Description And Items Delivered
(cordless). Keep all warnings and instructions for further use. Work environment Keep the work area clean and well lit. Untidiness and dark places on the job site are usually causes of accidents. Store tools that are not used. FDP 200711-E FDP 200805-E... - Page 8 General safety instructions Do not use power tools in an environment where there is risk of starting a fire or explosion; this refers to places where there are flammable liquids, gases or dust. Sparks form on the power tool’s commutator, which can cause dust or fume ignition. When using power tools, unauthorized persons, especially children, should be denied entry to the job site! In case you are interrupted, you can lose control of the current activity.
- Page 9 Never work with power tools if they are damaged in any way. If the tool starts emitting abnormal noises or odours, immediately stop working. FDP 200711-E FDP 200805-E...
- Page 10 General safety instructions Do not overload power tools. The power tool will function better and more safely if it operates at speeds for which it was designed. Use correct tools that are designated for the given activity. The correct tool works better and more safely. Do not use power tools that cannot be turned on safely and cannot be turned on and off with a control switch.
-
Page 11: Specific Safety Instructions
Never try to stop the movement of the saw blade, even when the engine is turned off. The saw blade itself is removed very quickly. The blade’s teeth are very sharp. Never aim the saw at another person. Use protective gear against noise, dust and vibrations!!! WARNING! Keep these safety instructions!!! FDP 200711-E FDP 200805-E... -
Page 12: Hearing Protection
Hearing protection | Operation 6. HEARING PROTECTION WARNING! In case the sound pressure level exceeds the value of 85.0 dB(A), wear adequate hearing protection to avoid damage to your hearing! 7. OPERATION Laser beam adjustment Transport, handling and heavy use can affect the precision of the laser beam. The laser beam itself can be easily adjusted. - Page 13 Slide the base plate forwards, incline it at the desired angle (range: 15°, 30°, 45°) Tighten the hexagon bolt using the hexagon key. Operate the same way as for straight cutting, ensuring that the base plate is firmly held flat against the work piece. FDP 200711-E FDP 200805-E...
- Page 14 Operation Straight cutting Ensure the work piece is firmly secured in a vice or workbench. Mark a line on the work piece through which the cut is required. Start up the jig saw and place the front of the base plate onto the work piece. Align the blade with the cutting mark on the work piece.
-
Page 15: Machine Care
In such cases the product shall be repaired and/or adjusted. The warranty shall not apply to standard wear of the product, as well as to faults attributable to overloading, using of inappropriate accessories or improper operation of the product. FDP 200711-E FDP 200805-E... -
Page 16: Declaration Of Conformit
15 December 2004 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive No. 89/336/EEC. Type / model: FDP 200805-E as factory model M1Q-DD20-80 AC 230V, 50Hz, 800W, 0-2800/m , Class II, IP20, LED light, The Directive of the European Parliament and the Council No. -
Page 17: Technical Specifications
Power input ................................ Speed ................................. 0- 00 rpm Cutting depth in wood ..........................Cutting depth in steel ............................10 mm Pendulum positions ……..........................0, I, II, III Bevel angle ................................ 0°- 45° Instructions Manual - language version only. FDP 200711-E FDP 200805-E... -
Page 18: Disposal
Disposal 12. DISPOSAL INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING. Put any used package material to the place determined by the municipality for waste disposal. DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. - Page 19 FDP 200711-E FDP 200805-E...
