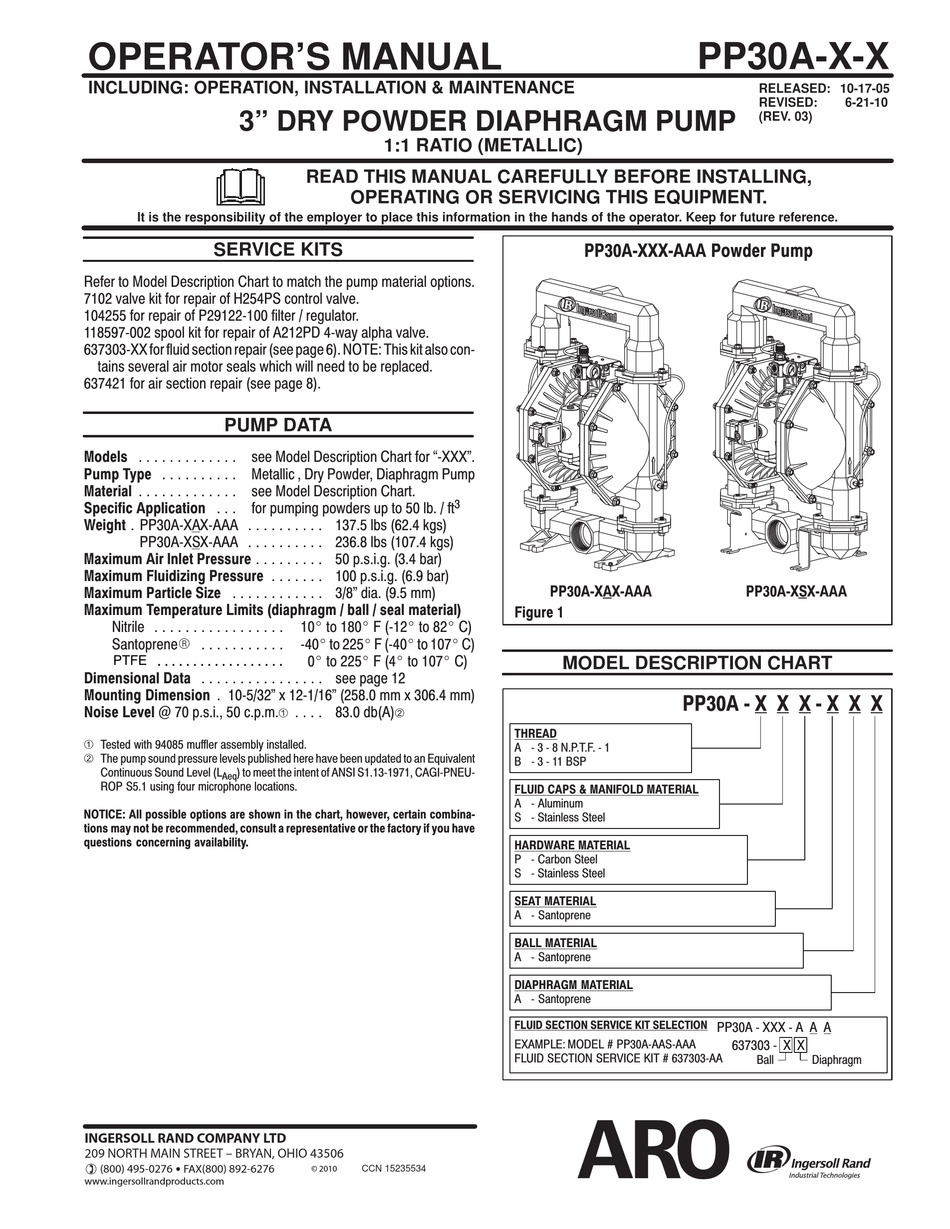

Ingersoll-Rand ARO PP30A Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
3" DRY POWDER DIAPHRAGM PUMP
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
7102 valve kit for repair of H254PS control valve.
104255 for repair of P29122 100 filter / regulator.
118597 002 spool kit for repair of A212PD 4 way alpha valve.
637303 XX for fluid section repair (see page 6). NOTE: This kit also con
tains several air motor seals which will need to be replaced.
637421 for air section repair (see page 8).
PUMP DATA
Models . . . . . . . . . . . . . see Model Description Chart for  XXX".
Pump Type . . . . . . . . . . Metallic , Dry Powder, Diaphragm Pump
Material . . . . . . . . . . . . . see Model Description Chart.
Specific Application . . . for pumping powders up to 50 lb. / ft
Weight PP30A XAX AAA . . . . . . . . . . .
PP30A XSX AAA . . . . . . . . . .
Maximum Air Inlet Pressure . . . . . . . . .
Maximum Fluidizing Pressure
Maximum Particle Size . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
Nitrile . . . . . . . . . . . . . . . . .
SantopreneR . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
PTFE
Dimensional Data . . . . . . . . . . . . . . . .
Mounting Dimension . 10 5/32" x 12 1/16" (258.0 mm x 306.4 mm)
Noise Level @ 70 p.s.i., 50 c.p.m.
À Tested with 94085 muffler assembly installed.
Á The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13 1971, CAGI PNEU
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain combina
tions may not be recommended, consult a representative or the factory if you have
questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
www.ingersollrandproducts.com
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
137.5 lbs (62.4 kgs)
236.8 lbs (107.4 kgs)
50 p.s.i.g. (3.4 bar)
. . . . . . . 100 p.s.i.g. (6.9 bar)
3/8" dia. (9.5 mm)
10_ to 180_ F ( 12_ to 82_ C)
40_ to 225_ F ( 40_ to 107_ C)
0_ to 225_ F (4_ to 107_ C)
see page 12
. . . . 83.0 db(A)
À Á
© 2010 CCN 15235534
PP30A XXX AAA Powder Pump
3
PP30A XAX AAA
Figure 1
MODEL DESCRIPTION CHART
THREAD
A 3 8 N.P.T.F. 1
B 3 11 BSP
FLUID CAPS & MANIFOLD MATERIAL
A Aluminum
S Stainless Steel
HARDWARE MATERIAL
P Carbon Steel
S Stainless Steel
SEAT MATERIAL
A Santoprene
BALL MATERIAL
A Santoprene
DIAPHRAGM MATERIAL
A Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # PP30A AAS AAA
FLUID SECTION SERVICE KIT # 637303 AA
PP30A-X-X
RELEASED: 10-17-05
REVISED: 6-21-10
(REV. 03)
PP30A XSX AAA
PP30A X X X X X X
PP30A XXX A A A
637303 X X
Ball Diaphragm
