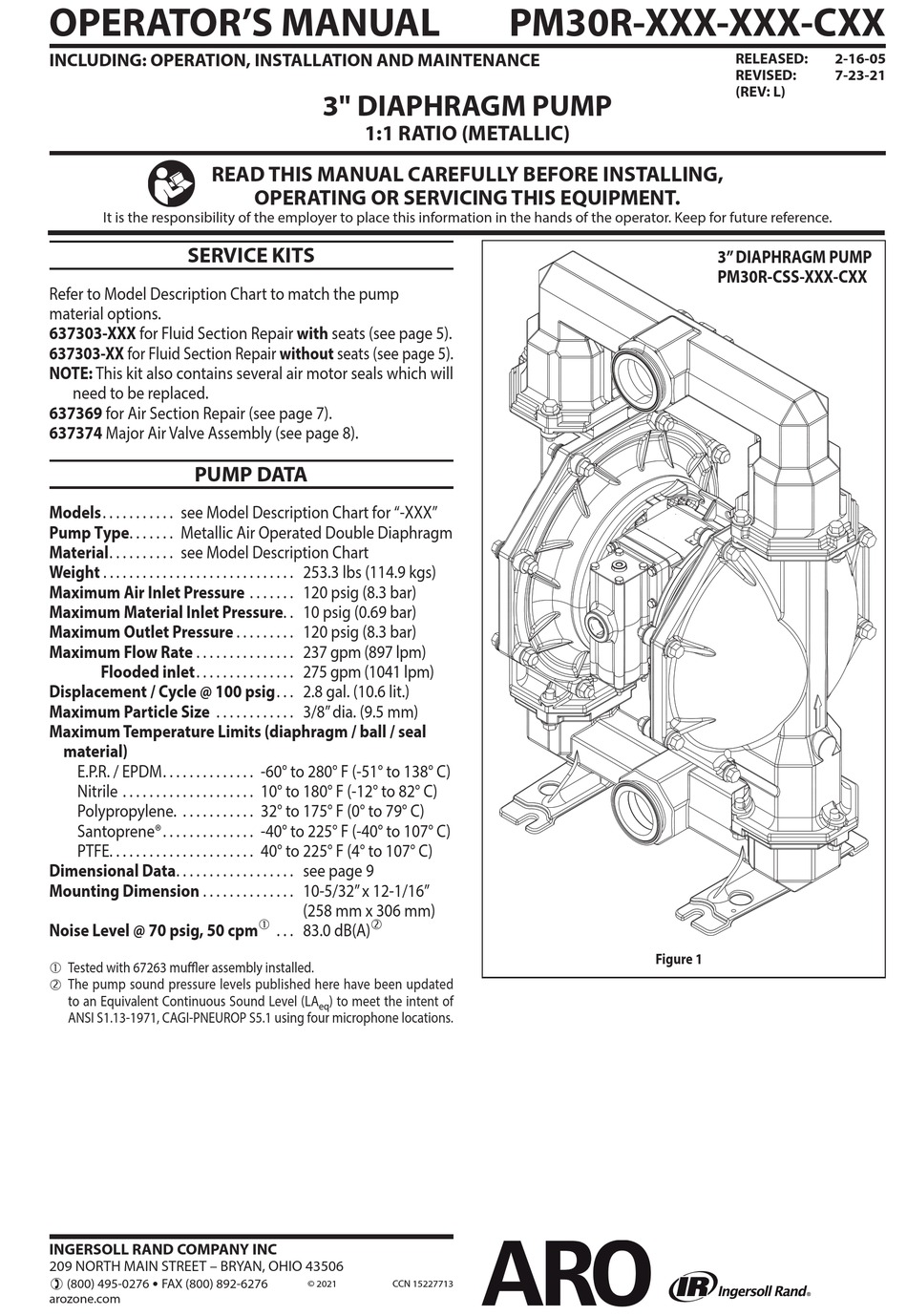

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump
material options.
637303-XXX for Fluid Section Repair with seats (see page 5).
637303-XX for Fluid Section Repair without seats (see page 5).
NOTE: This kit also contains several air motor seals which will
need to be replaced.
637369 for Air Section Repair (see page 7).
637374 Major Air Valve Assembly (see page 8).
PUMP DATA
Models . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253.3 lbs (114.9 kgs)
Maximum Air Inlet Pressure . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate . . . . . . . . . . . . . . . 237 gpm (897 lpm)
Flooded inlet . . . . . . . . . . . . . . . 275 gpm (1041 lpm)
Displacement / Cycle @ 100 psig . . . 2.8 gal. (10.6 lit.)
Maximum Particle Size . . . . . . . . . . . . 3/8" dia. (9.5 mm)
Maximum Temperature Limits (diaphragm / ball / seal
material)
E.P.R. / EPDM . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Nitrile . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Polypropylene. . . . . . . . . . . . 32° to 175° F (0° to 79° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE. . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Dimensional Data . . . . . . . . . . . . . . . . . . see page 9
Mounting Dimension . . . . . . . . . . . . . . 10-5/32" x 12-1/16"
Noise Level @ 70 psig, 50 cpm
Tested with 67263 muffler assembly installed.
The pump sound pressure levels published here have been updated
to an Equivalent Continuous Sound Level (LA
ANSI S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
INGERSOLL RAND COMPANY INC
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
3" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
(258 mm x 306 mm)
. . . 83.0 dB(A)
) to meet the intent of
eq
© 2021
CCN 15227713
PM30R-XXX-XXX-CXX

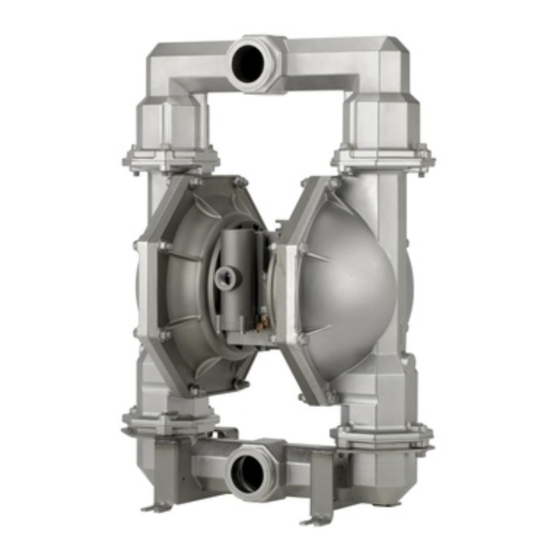

Figure 1
RELEASED:
2-16-05
REVISED:
7-23-21
(REV: L)
3" DIAPHRAGM PUMP
PM30R-CSS-XXX-CXX
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ingersoll-Rand ARO PM30R C Series
Summary of Contents for Ingersoll-Rand ARO PM30R C Series
- Page 1 OPERATOR’S MANUAL PM30R-XXX-XXX-CXX INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE RELEASED: 2-16-05 REVISED: 7-23-21 (REV: L) 3" DIAPHRAGM PUMP 1:1 RATIO (METALLIC) READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference. SERVICE KITS 3”...
-
Page 2: Model Description Chart
MODEL DESCRIPTION CHART Model Code Explanation PM30 Center Section Material R - Polypropylene / Stainless Steel Thread C - Sanitary Flange Fluid Caps and Manifold Material S - Stainless Steel Hardware Material Stainless Steel Seat Material M - Medical Grade Santoprene S - 316 Stainless Steel Ball Material M - Medical Grade Santoprene... -
Page 3: Operating And Safety Precautions
OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE. Obtain Material Safety Data Sheets on all materials EXCESSIVE AIR PRESSURE HAZARDOUS MATERIALS from the supplier for proper handling instructions. STATIC SPARK HAZARDOUS PRESSURE EXPLOSION HAZARD. -
Page 4: General Description
Loctite® is registered trademarks of Henkel Loctite Corporation y ARO® is a registered trademark of Ingersoll-Rand Company y y Santoprene® is a registered trademark of ExxonMobil y 271™ and 242® registered trademarks of Henkel Loctite Corporation y y Lubriplate®... - Page 5 PARTS LIST / PM30R-X-X-CXX FLUID SECTION FLUID SECTION SERVICE KITS (637303-XXX or 637303-XX) For Fluid Kits With Seats: 637303-XXX Fluid Section Service Kits include: Seats (see SEAT Option, refer to -XXX in chart below), Balls (see BALL Option, refer to -XXX in chart below), Diaphragms (see DIAPHRAGM Option, refer to -XXX in chart below), and items: 3, 19, 70, 144, 175, 196 (listed below) plus 174 and 94276 Lubriplate FML-2 grease (page 7).
- Page 6 PARTS LIST / PM30R-X-X-CXX FLUID SECTION COLOR CODE DIAPHRAGM BALL MATERIAL COLOR COLOR SANTOPRENE SANTOPRENE Green (Backup) PTFE White White 26 ,G FOR THE AIR MOTOR SECTION Torque Sequence SEE PAGES 7 and 8 175 k 70 k 175 k 70 k 14 , g 19 = k...
-
Page 7: Pilot Valve Disassembly
PARTS LIST / PM30R-X-X-CXX AIR SECTION Indicates parts included in 637369 Air Section Service Kit shown below and items 70, 144, 175 and 180 shown on page 5. AIR MOTOR PARTS LIST Item Description Qty Part No. Item Description Qty Part No. - Page 8 PARTS LIST / PM30R-X-X-CXX AIR SECTION 169 k 168 k 172 k 171 k PILOT VALVE PART GROUP k 174 k 173 166 k 244 k 243 k 132 k 141 k 173 k .105 174 k Optional 9411 232 k 200 k 232 k 199 k Mu er...
-
Page 9: Troubleshooting
TROUBLESHOOTING Product discharged from exhaust outlet. Low output volume, erratic flow or no flow. Check for diaphragm rupture. Check air supply. Check tightness of (14) cap screw. Check for plugged outlet hose. Check for kinked (restrictive) outlet material hose. Air bubbles in product discharge. Check for kinked (restrictive) or collapsed inlet material Check connections of suction plumbing. - Page 10 Page 10 of 12 PM30R-XXX-XXX-CXX (en)
- Page 11 PM30R-XXX-XXX-CXX (en) Page 11 of 12...
- Page 12 PN 97999-1117 Page 12 of 12 PM30R-XXX-XXX-CXX (en)
