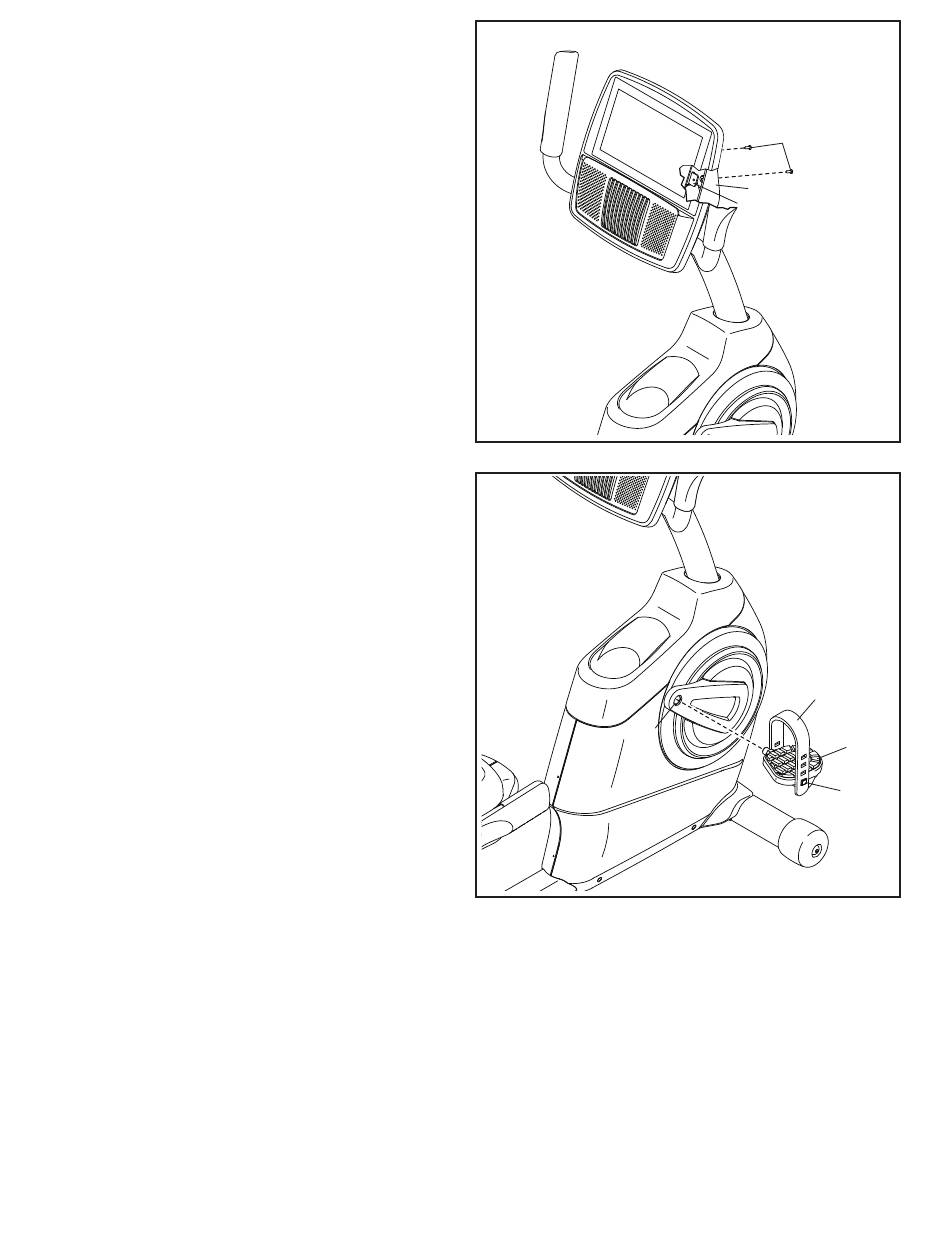

12. Slide the Console Cover (16) upward against the
Handlebar (14). Attach the Console Cover with
two M4 x 16mm Screws (49).
13. Identify the Right Pedal (13). Using your fingers,
turn the Right Pedal about halfway into the Right
Crank Arm (71). Then, use an adjustable wrench
to FIRMLY TIGHTEN the Right Pedal.
Repeat this step with the Left Pedal (not
shown). IMPORTANT: You must turn the Left
Pedal COUNTERCLOCKWISE to attach it.
Next, adjust the right strap (E) to the desired
position, and press the ends of the strap onto
the tabs (F) on the Right Pedal (13). Adjust the
strap on the Left Pedal (not shown) in the
same way.
12
13
71
12
49
16
14
E
13
F
