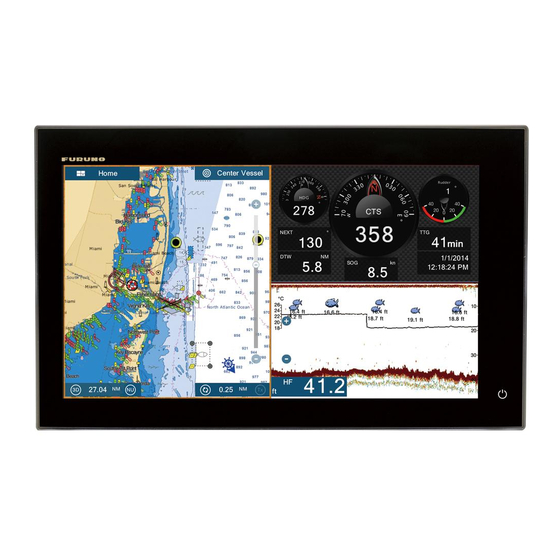

Furuno NavNet TZtouch2 TZTL12F Operator's Manual

Multifunction display

Hide thumbs Also See for NavNet TZtouch2 TZTL12F:

Operator's manual (367 pages)

Setup procedures (19 pages)

Software update procedure (12 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

This guide provides the basic operating procedures for this equipment. For detailed information, see the Operator's

Manual in the supplied CD-ROM. You can get the latest version of the manual by accessing the quick response code

at the back of this guide. Connection of sensors required.

iPhone, iPod and iPad are trademarks of Apple Inc. Android is a trademark of Google Inc. All brand and product

names are trademarks, registered trademarks or service marks of their respctive holders.

The screenshots in this manual are taken from the TZTL12F and TZTL15F. On-screen appearance for the TZT2BB

may differ slightly, depending on the monitor used.

Operational Overview

Home icon, power switch operations

TZTL12F/TZTL15F

Tap

Power off

Power switch

Power off function

only: Powers off this

unit.

Power off linked

function: Powers off

all NavNetTZ touch2

units in network.

Brilliance, Hue

TZTL12F/15F: Adjust display brilliance.

TZT2BB: Adjust power lamp and key backlight brilliance.

Hue:

Brilliance*:

How to select a display

Tap a display icon on the home screen

Tap

Home screen

MULTI FUNCTION DISPLAY

TZTL12F/TZTL15F/TZT2BB

Model

TZT2BB

SWITCH BOX

- Turns on power

- Shows [Quick

Access] window.

TZTL15F

Home icon

Displays the

Display icons

home screen.

(max. 16 on home screen)

"eGuide" provides

an abbreviated

operator's guide.

How to edit a display icon

Long tap a display icon to edit, delete, resize, or

change its location.

Edit

Tap a display icon on the quick page

Swipe downward from top of display

www.furuno.com

Operator's Guide

Lists

Home screen

Tap

Display icon long tapped

Quick page

TZTL15F

Delete

Size

(large or

small)

Tap

Table of Contents

Summary of Contents for Furuno NavNet TZtouch2 TZTL12F

Page 1 Tap a display icon on the quick page Tap a display icon on the quick page TZTL15F Quick page Quick page Quick page Quick page Quick page Swipe downward from top of display Home screen Home screen Home screen Home screen Home screen www.furuno.com...
Page 2: Touch Screen Operations
Touchscreen operations Drag, swipe - Select an item on a menu. - Move the chart. - Select an object to show the corresponding - Scroll the menu. pop-up menu. - Show slide menu, layer menu. Pinch Two finger tap Slider bar Slider bar Slider bar Slider bar...
Page 3: Data Area (Data Box)
Plotter Heading line (yellowish-green solid line) Data area Alarm Message Alarm Message COG vector (broken line) COG vector (broken line) Return own ship to screen center. Position Lost Left: Undo Right: Back Inactive route (expanded) Point Boat icon Boat icon Slide bar Track Inactive route...
Page 4 Points/boundaries Points can be entered on the plotter display (radar and fish finder displays also) to mark important locations such as a good fishing spot. Point attributes (position, symbol type, color, etc.) are recorded to the points list. Also, boundaries can be set at the position desired (net position, area to avoid, etc.) How to enter a point The point is entered on the screen.
Page 5 Routes A route is comprised of a series of waypoints leading to a destination. Routes are saved to the routes list. How to create a new route Tap the next point for the route. Tap the first point for Repeat to enter all points for the route. the route.
Page 6 Radar Guard zone Guard zone Heading line Heading line North mark North mark Move Own ship position to center Data area Slider Range Own ship position Own ship position Fixed range rings How to switch between standby and TX How to switch between standby and TX TX X : TX (lower left side of...
Page 7: How To Set A Guard Zone
How to measure the range, bearing from own ship to a target Goto Goto Goto Target Target Tap a target to show its range and bearing from own ship. How to set a guard zone How to set a guard zone A guard zone alerts you (with aural and visual alarms) when a radar target enters the area you specify.
Page 8: Operation
ARPA Operation ARPA is an anti-collision aid that tracks the movement of other ships to help prevent collision. ARPA not only tracks other ships but also provides their navigation data. Targets can be acquired manually, automatically, or both automatically and manually. How to show, hide ARPA symbols ARPA symbols ON ARPA symbols OFF...
Page 9 CPA/TCPA alarm The CPA/TCPA alarm releases an aural alarm and a visual alarm (message in Status bar) when both the CPA and TCPA of a tracked target are equal to or lower than the CPA/TCPA alarm setting. CPA: Closest point of approach TCPA: Time to closest point of approach How to set the CPA/TCPA alarm How to set the CPA/TCPA alarm...
Page 10: Ais Target Symbols
The proximity AIS target alarm releases aural and visual alarms when the distance between own ship and an AIS target is near the alarm value. Home screen Set the alarm value, then tap [ ]. How to show AIS target data How to show AIS target data FURUNO FURUNO 987654321 987654321 AIS symbol AIS symbol...
Page 11: Fish Finder
Fish Finder Home icon Depth scale Temp graph* Temp. scale* Bottom 29.6 ft 29.8 ft Fish symbol echo Bottom echo Slider Requires appropriate transducer. Requires water temperature sensor. A-scope display Depth Frequency Frequency Note: Names of menu items may be changed depending on the transducer connected. Note: Names of menu items may be changed depending on the transducer connected.
Page 12: How To Select The Operating Mode
How to select the operating mode The fish finder is available in automatic and manual operation. For automatic operation, gain, clutter and matic and manual ope TVG are automatically adjusted. Auto mode Manual mode Manual mode How to change the range How to change the range Pinch screen.
Page 13: Zoom Display
Zoom display Search for bottom fish. 20.5 BL/HF 200 kHz Find bottom contour and hardness. 20.5 BZ/HF 200 kHz Short tail: Soft bottom Long tail: Hard bottom ACCU-FISH /Bottom Discrimination/RezBoost Show the layer menu. Bottom Discrimination RezBoost Show probable bottom hardness Raise the echo resolution (requires RezBoost capable transducer).
Page 14: Instrument Display
Instrument Display With connection of appropriate sensors, the instrument display shows various navigation data. How to enable the instrument display Add an instrument display icon to the home to screen to show the instrument display. Drag After setting, tap [ ]. (Incorporation in 3-way screen is also possible.) How to switch instrument displays (ex.
Page 15: Wireless Lan Settings
Wireless LAN Settings You can connect to the internet with the wireless LAN signal to download weather information and to connect to an iPhone, iPod, iPad, or Android device. Note: This procedure is not available from a monitor connected to the HDMI OUT2 port (TZT2BB only). How to connect to an existing LAN Connect to the existing LAN to download weather data or update the software.
Page 16: How To Create A Local Wireless Network
How to create a local wireless network Create a local wireless network to connect to an iPhone, iPod, iPad, or Android device. Check that [When Necessary] is selected. Home screen Check that [OFF] is selected. Select [Create Local Network], then tap “<”. XXXXXXXX To change the network name, tap [Name].
