Battery Replacement

If after routine operation check, the lamp does not remain lit for the three hour period, a new battery pack may be required.
• Switch off the electricity at the mains, both switched and permanent supply.
• Allow batteries to fully discharge then reconnect to supply and allow to charge for 24 hours.
• Test again for 3 hours, if light does not remain lit change the battery pack as follows:
- Disconnect from the mains supply both permanent and switched supply.
- Undo two screws at the end of the product to separate the clear front cover and the rear casing. Keep screws in safe place for
refitting later.
- Pushing the two quick release tabs holding the gear tray and fold down.
- Unplug the battery lead from the lead coming from the PCBA. Remove any cable ties around the cables.
- Remove the battery pack and lift the battery pack out of the fitting. Waste electrical products should not be disposed of
with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
- Replace the battery with a Ni-Cd 3.6V, 600mAh only. Use of a different type of battery will damage the product.
- Write current date on the new battery pack.
- Fit new battery pack in position. Refit the cable ties in position and then plug battery pack into the PCBA.
- Re-clip the gear tray in place and re-secure the clear front cover using the screws.
- Restore power and allow to charge for 24 hours.
- Perform full operation check and update test record.

Technical data

Supply
220-240 V~, 50 Hz
Duration: 3 hours (180 minutes)
Voltage:
Maximum Operatin Humidity: 10%-90%
Bulb
3.8W LED (SMD), 6500K
Change over Time: Approximately 1s
Type:
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is rated at IP65.
65
IP

Care and Safety

Live Voltages may be present in this unit even when turned off or when completely disconnected.
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
This bulb is protected by a shade. This part must be replaced immediately should the shade become
cracked or damaged. This fitting must not be used without the shade in place.
Replace Cracked Shade
V1 26/06/2023
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Battery Specification: Ni-Cd 3.6V, 600mAh
Battery Charge Time: 24 hours
Battery warranty: 5 years
Operating Temperature: 0-45 ºC
Instruction manual

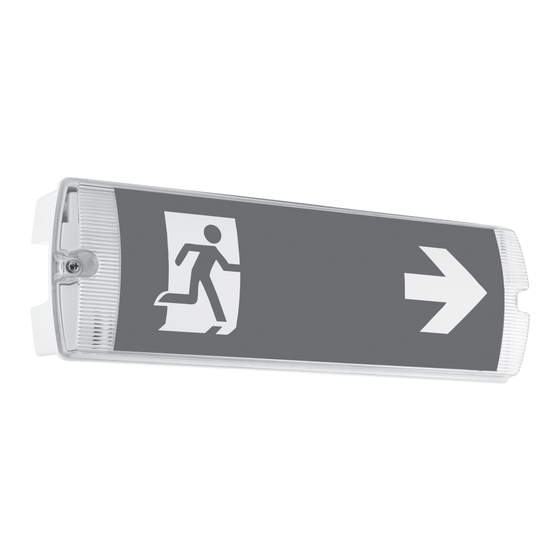

SIGHTPRO
108087
www.saxbylighting.com
