Saxby Lighting 1818PIR Instruction Leaflet

Wiring

Having correctly identified the wiring from your existing light fitting and connect to the connection block inside the
product in the following way:
LIGHT FITTING
SUPPLY
BROWN (L)
EARTH (GREEN/YELLOW) GREEN/YELLOW
BLUE (N)

PIR Adjustment:

1.8m - 2.5m above the ground.
distance to be altered to suit the location. The detection
angle is set at 120 degrees. The duration that the lamp

Fitting/replacing bulbs

and allow the bulb to cool before handling. Dispose of
used bulbs carefully. Do not exceed the wattage stated
or use a different shape bulb from that indicated on the
fitting.
bulb from that indicated on the fitting.
We recommend cleaning with a soft dry cloth.
Do not use solvents or abrasive cleaners as these could
damage the finish.

Recycling advice

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.

Safety information

For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
This bulb is protected by a glass shade. This part must be replaced immediately should the glass
shade become cracked or damaged. This fitting must not be used without the glass shade in place.
Replace Cracked Shade
WWW.saxbylighting.com
Check that...
BROWN (L)
The connections are tight.
No loose strands have been left out of
BLUE (N)
the connection block.
stays on can also be altered from 5 seconds - 5 minutes.
distance) in daylight it will be necessary to cover the
sensor to simulate night time.
clockwise to secure.
60W E27 GLS
Glass parts – Wash with warm water or just use a damp
cloth. Do not use abrasive materials as these will damage
the finish.
V4 15/01/2021
Saxby lighting. BH17 7BY
Instruction leaflet

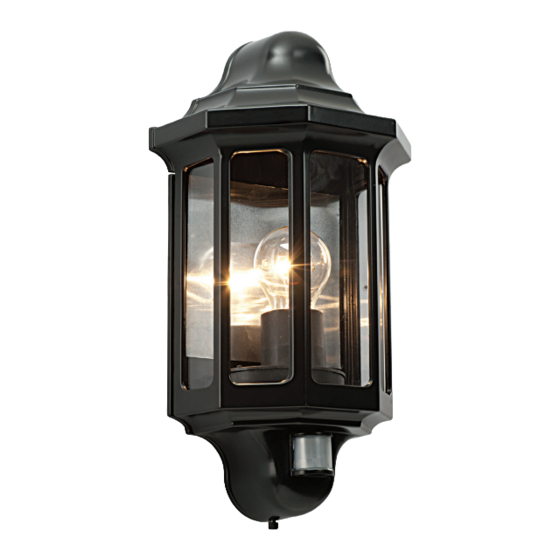

Traditional PIR Half-Lantern
