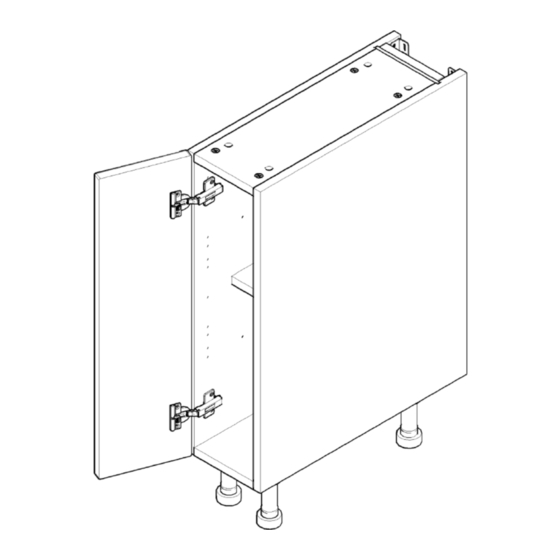

- Page 1 All manuals and user guides at all-guides.com BASE UNIT 150 - 200 1 Door Assembly Guide For Internal Use: FI.WR.INS.019_WKIN00100_BASE_150-200_1Dr_Rev7.Indd...
- Page 2 All manuals and user guides at all-guides.com BASE UNIT 150 - 200 1 Door Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Panel A Panel B Shelf Legs Frontal...
- Page 3 All manuals and user guides at all-guides.com Step 1. Step 2. Seat dowel (F) Seat cam dowel (G) into into holes in holes in both end panels (B) Seat (G) Cam Dowel both end panels (B) as shown. into hole as as shown.
- Page 4 All manuals and user guides at all-guides.com BASE UNIT 150 - 200 1 Door Assembly Guide Step 5. Slide back panel (A) into groove of end panels (B). Once back panel (A) is in position, ensure the panel is flush & square with bottom of end panels (B).
- Page 5 All manuals and user guides at all-guides.com Leg position diagram Front Front Step 8. Position legs as shown. Ensure legs are rotated to also provide support to the end panels (B). Step 9. Secure each of the legs into place with 4 x 15mm screws (L) per leg.
- Page 6 All manuals and user guides at all-guides.com BASE UNIT 150 - 200 1 Door Assembly Guide From Top 94mm 126mm Hinge Plates Step 11. Attach hinge mounting plate onto both End Panel or panels, (B) as shown, using Screws which are already positioned within the Hinge Plates.
- Page 7 All manuals and user guides at all-guides.com Step 12. Insert hinge in top & bottom holes as shown below. Step 13. Secure hinges by tightening 2 x screws with hinge dowels attached. These are already positioned within the hinges. Step 14. Attach the door to unit where required.
