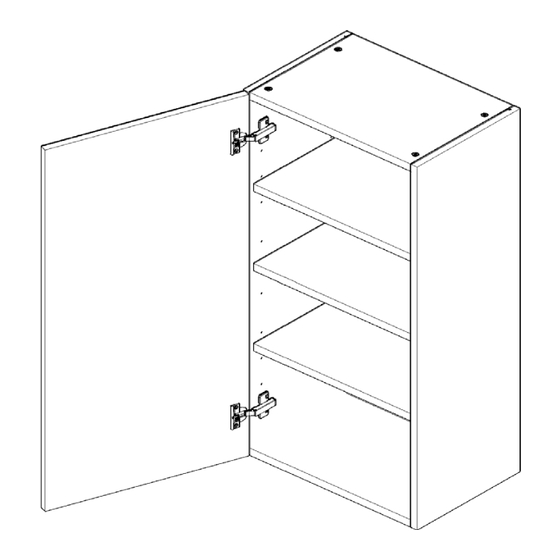

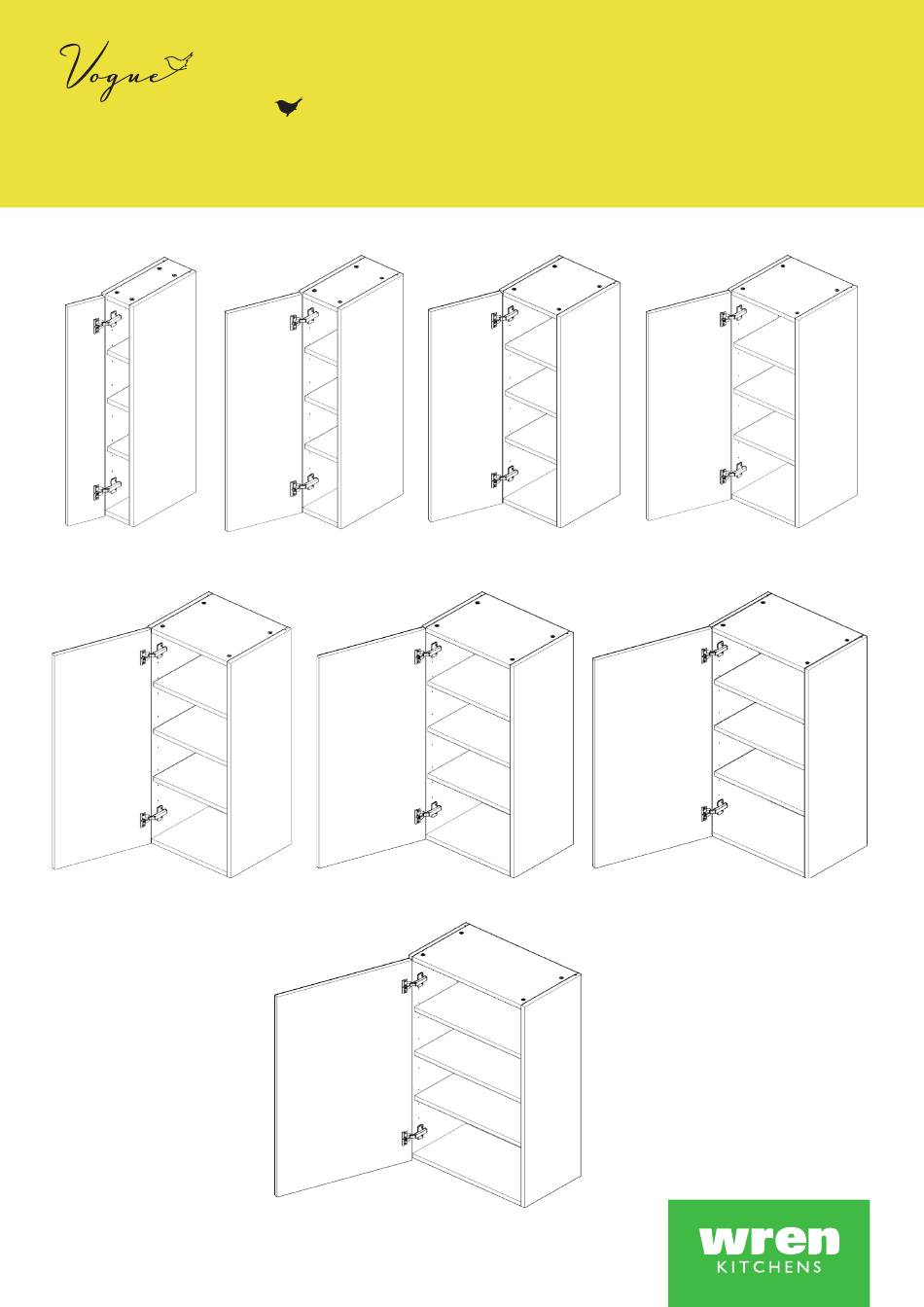

- Page 1 All manuals and user guides at all-guides.com WALL UNIT 150 - 600 Tall 1 Door Assembly Guide 150 Tall 200 Tall 300 Tall 350 Tall 400 Tall 450 Tall 500 Tall 600 Tall For Internal Use: FI.WR.INS.045.WKIN00130_WALL_150-600_Tall_1Dr.Rev7...
- Page 2 All manuals and user guides at all-guides.com WALL UNIT 150 - 600 Tall 1 Door Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Panel A Panel B Panel C Loose Shelf Frontal...
- Page 3 All manuals and user guides at all-guides.com Step 1. Step 2. Seat dowel (F) Seat cam dowel (G) into into holes in holes in both end panels (B) Seat (G) Cam Dowel both end panels (B) as shown. into hole as as shown.
- Page 4 All manuals and user guides at all-guides.com WALL UNIT 150 - 600 Tall 1 Door Assembly Guide Step 6. Seat dowel (F) into holes in both panels (B) as shown. Seat (G) Cam Dowel into hole as Step 7. shown. Seat cam dowel (G) into holes in both end panels (B) as shown.
- Page 5 All manuals and user guides at all-guides.com Step 10. Ensure unit is square. From Top 94mm 126mm Step 11. Slide the back panel clips (T) into the groove of both panels (B) & (C)s. The back panel clips (T) should be evenly spaced as shown and positioned to allow the hanging bracket and corner gussets to be fitted.
- Page 6 All manuals and user guides at all-guides.com WALL UNIT 150 - 600 Tall 1 Door Assembly Guide Screws for attaching to walls are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall construction are used. Care to be taken.
- Page 7 All manuals and user guides at all-guides.com Step 16. Hanging Bracket Measure appropriately and Plate attach the 2 x hanging bracket plates onto the wall screwing through the provided holes into your wall. Step 17. Hang the unit using the brackets to hook onto the plate as shown Step 18.
- Page 8 All manuals and user guides at all-guides.com WALL UNIT 150 - 600 Tall 1 Door Assembly Guide Step 20. Insert hinge in top & bottom holes as shown below. Step 21. Secure hinges by tightening 2 x screws with hinge dowels attached.
