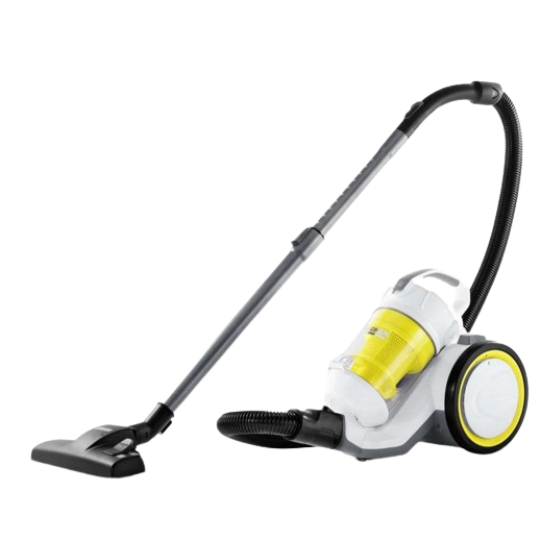

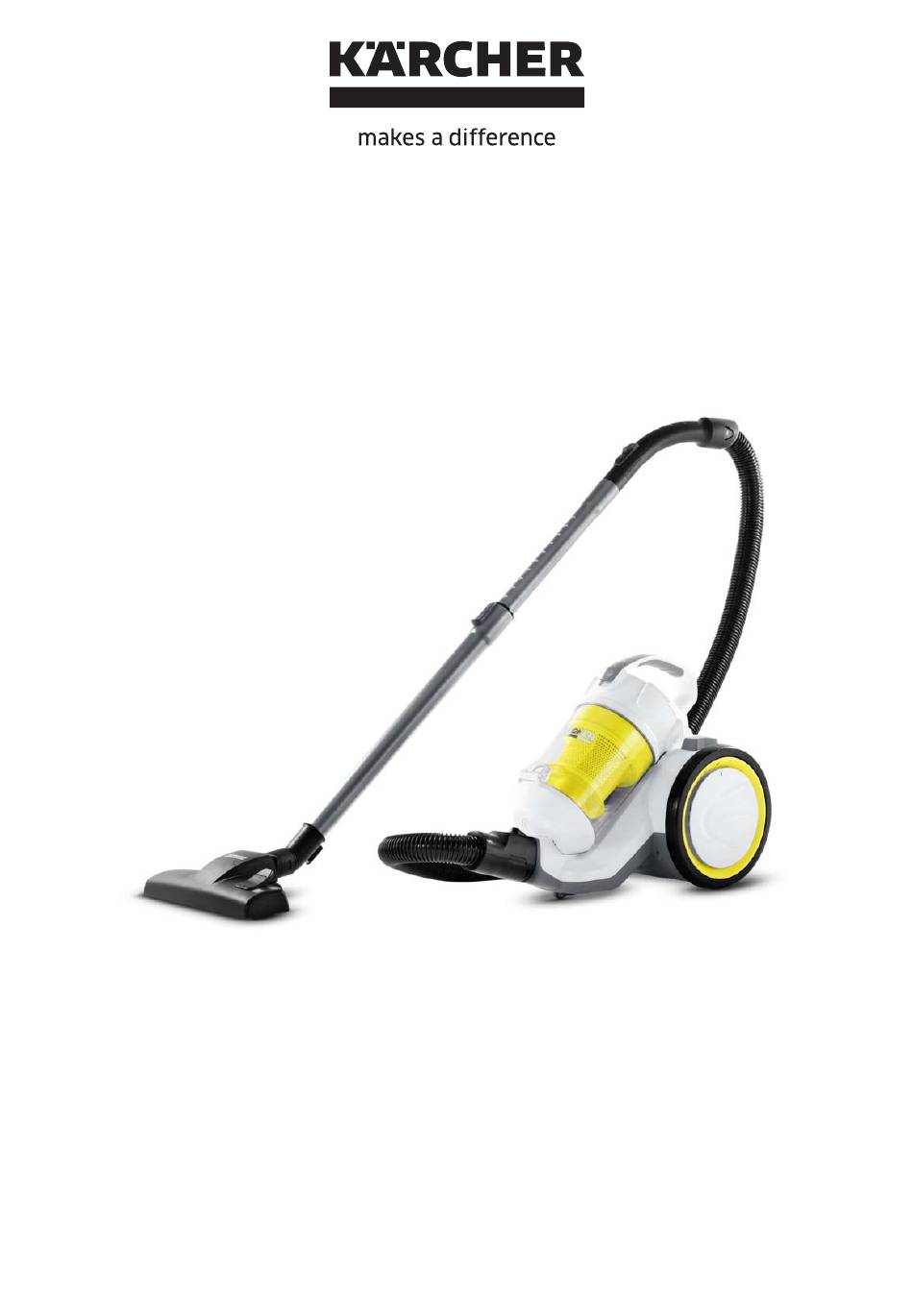

- Page 1 VC 3 / VC 3 Premium Service Manual English 9.764-892.0 Rev. 00 (07/17)
-
Page 2: Table Of Contents
Contents Preface Safety instructions Hazard levels Description in this service manual Service groups Functional group structure Textual description Technical Features Field of application Safety installations Type plate Overview of the appliance AB Service group setup 010 Safety information 020 Overview 030 Function Functional diagram 040 Service activities... -
Page 3: Preface
Preface Good service work requires extensive and practice-orient- ed training as well as well-structured training materials. Hence we offer regular basic and advanced training pro- grammes covering the entire product range for all service engineers. In addition to this, we also prepare service manuals for im- portant appliances - these can be initially used as instruc- tion guides and later on as reference guides. -
Page 4: Description In This Service Manual
Description in this service manual Service groups Example: Install/uninstall ANRA wheel axle Install/uninstall wheel axle Service group Component Activity Observe the allocation of service groups to the appliance components in the overview diagram in Chapter "Overview over the service and functional groups". Functional group structure Safety instructions Overview... -
Page 5: Technical Features
Cable coiling – Field of application This service manual describes the appliance family: VC 3 / VC 3 Premium – Safety installations Safety devices serve to protect the user and must not be rendered in operational or their functions bypassed. -
Page 6: Ab Service Group Setup
AB Service group setup 010 Safety information Observe general safety information! WARNING Switch off the appliance and remove the plug from the socket. 020 Overview ABHA Uninstalling / installing cover ABKA Remove/install the cable coiling device ABSS Remove/install the suction hose 030 Function Functional diagram 1 Multi-cyclone system... -
Page 7: 040 Service Activities
040 Service activities Note Unless otherwise described, the installation takes place in reverse order. ABHA Uninstalling / installing cover 1 Release button 2 Dust container 3 Air outlet cover Press the release button. Remove the dust container. Unlock and remove the air outlet cover. 1 HEPA-filter 2 Screws 3 Ring... -
Page 8: Abka Remove/Install The Cable Coiling Device
1 Screws 2 Steering roller Unscrew the screws. 1 Hood 2 Installation tools Open the hood using the installation tool. Remove the hood. ABKA Remove/install the cable coiling device See: AHNK Uninstall / install power cable ABSS Remove/install the suction hose 1 Handle 2 Suction hose... -
Page 9: 050 Maintenance And Inspection
050 Maintenance and inspection Service group does not contain any maintenance and in- spection points. 060 Error diagnosis The service group does not contain any error diagnosis. 070 Peculiarities/ others The service group does not contain any peculiarities. AH Service group electrics 010 Safety information Observe general safety information! CAUTION... -
Page 10: 040 Service Activities
040 Service activities Note Unless otherwise described, the installation takes place in reverse order. AHGD Remove/install ON/OFF switch ABHA Uninstalling / installing cover Electric socket plug connections ON/OFF switch Separate the electric connectors. Remove On/Off switch. AHNK Uninstall / install power cable ... -
Page 11: Ahst Remove/Install The Suction Turbine
1 Hood 2 Latching tabs 3 Cable inlet 4 Supply Cord Unlock latches. Remove the cable inlet. Pull the power cable out of the cable inlet. AHST Remove/install the suction turbine ABHA Uninstalling / installing cover 1 Electric socket plug connections ... -
Page 12: 050 Maintenance And Inspection
1 Suction turbine Remove the suction turbine. Note Mind correct installation of the lines. 050 Maintenance and inspection Service group does not contain any maintenance and in- spection points. 060 Error diagnosis The service group does not contain any error diagnosis. 070 Peculiarities/ others The service group does not contain any peculiarities. -
Page 13: Technical Documentation
Technical Documentation Appliance type Appliance no. Circuit diagram Operating instructions Spare parts list VC 3 1.198-125.0 9.764-233.0 9.764-643.0 9.764-431.0 VC 3 Premium 1.198-135.0 9.764-233.0 9.764-643.0 9.764-432.0 Technical specifications See operating instructions. Circuit diagram Capacitor Ladder Suction turbine Neutral conductor ON/OFF switch...
