NCL30073LED4GEVB
15 W High Power Factor
LED Driver Evaluation Board
User's Manual
Overview
This manual covers the specification, theory of operation,
testing and construction of the NCL30073LED4GEVB
evaluation board. The NCL30073 board demonstrates a
15 W high PF buck boost LED driver for a typical downlight
application.
Key Features
The key features of this evaluation board include:
•
Low Parts Count
•
TRIAC Dimmer Compatible
•
High Power Factor
•
Integrated Fault Protection
Over Temperature on board (a PCB mounted PTC)
♦
Output Over Current
♦
Output Over Voltage
♦
© Semiconductor Components Industries, LLC, 2017
July, 2017 − Rev. 0
Table 1. SPECIFICATIONS
Input voltage
Line Frequency
Power Factor (100% Load)
Output Voltage
Output Ripple
Output Current
Efficiency
Start Up Time

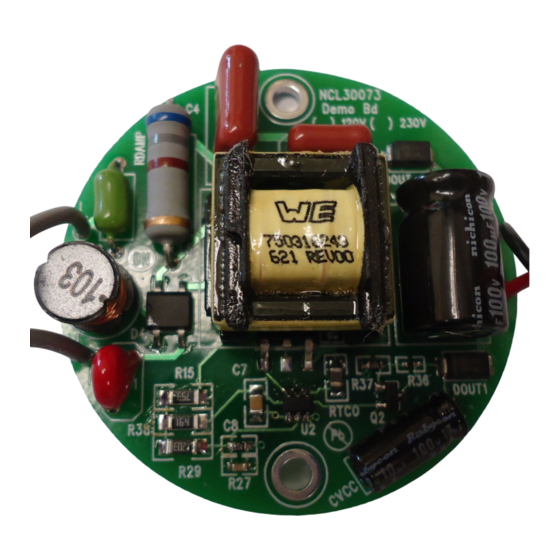

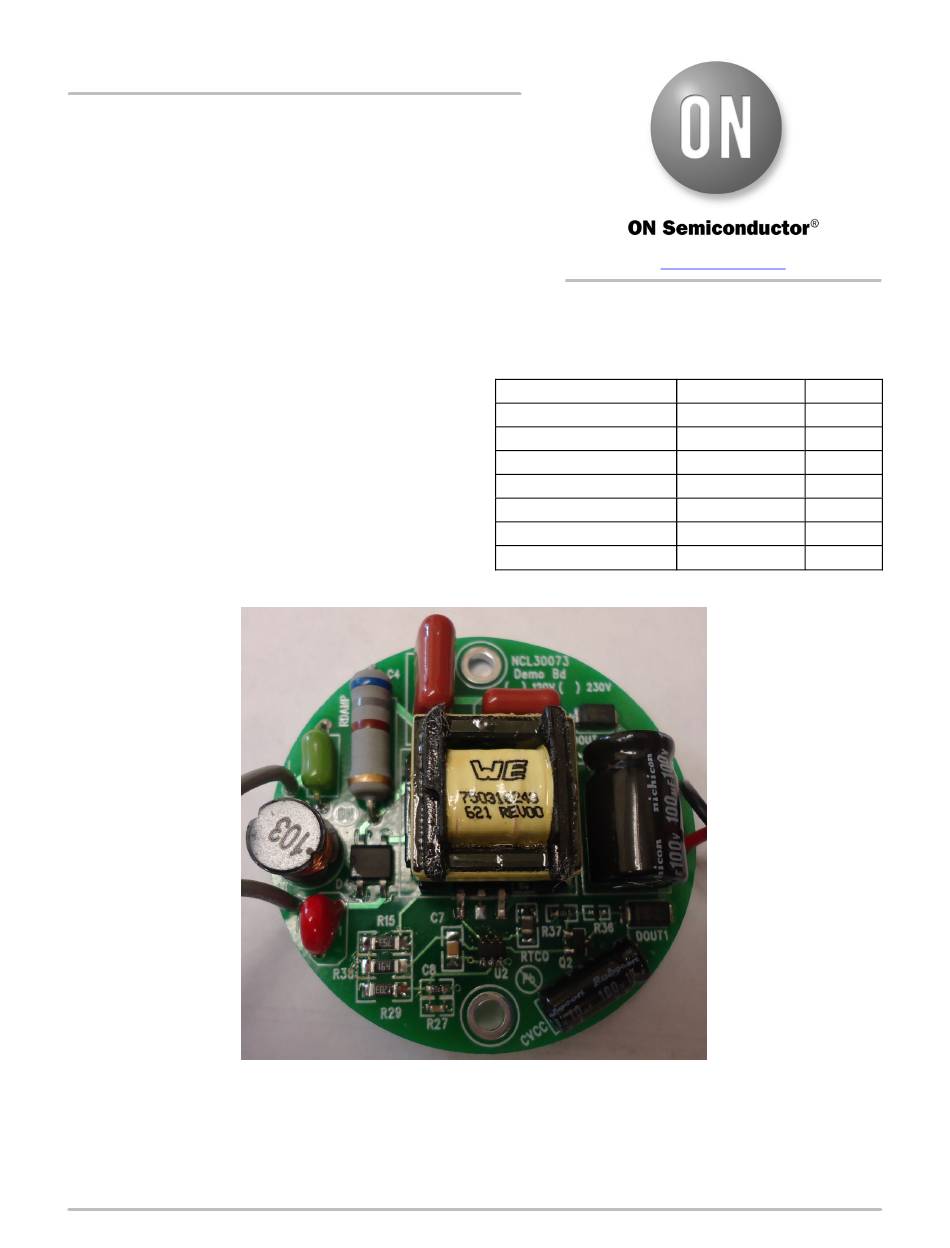

Figure 1. Evaluation Board Photo
1
www.onsemi.com
EVAL BOARD USER'S MANUAL
207 − 253 V ac
50 Hz
0.9
72 V dc
75%
200 mA dc
88.5%
< 250 msec
Publication Order Number:
Min
Pk − Pk
± 5%
Typ.
Typ.
EVBUM2505/D
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ON Semiconductor NCL30073
Summary of Contents for ON Semiconductor NCL30073
- Page 1 This manual covers the specification, theory of operation, testing and construction of the NCL30073LED4GEVB EVAL BOARD USER’S MANUAL evaluation board. The NCL30073 board demonstrates a 15 W high PF buck boost LED driver for a typical downlight application. Table 1. SPECIFICATIONS...
-
Page 2: Theory Of Operation
NCL30073LED4GEVB THEORY OF OPERATION Power Stage The power stage operates as a fixed frequency DCM The power stage is a flying buck boost design. In this power stage. The DCM allows for no forced commutation configuration, drain of the switching FET is connected to the of the output diode for good EMI performance. - Page 3 33nF 400V MOV 250V − Rdamp MB6S AC_N Figure 3. Input Circuit +HVDC_iso 143k 412k 220k MMBT5551LT1G NDD60N900U1T4G 301k Gdrv 100k NCL30073 1uF 50V CVcc 10nF Rtco 10uF 100V Dout1 MURA160T3G 680 PTC Rsens 1.13 Dout LED− MURA160T3G Cout 100uF100V 1.2mH...
-
Page 4: Bill Of Material
Digikey 311−143KFRCT−ND Yageo RC0603FR−0710k0L Digikey 311−10.0KHRCT−ND 412k Yageo RC1206FR−07412KL Digikey 311−412KFRCT−ND 301k Yageo RC0603FR−07301KL Digikey 311−301KHRCT−ND 100k Yageo RC0603FR−07100KL Digikey 311−100KHRCT−ND 220k Yageo RC1206FR−07220KL Digikey 311−220KFRCT−ND NCL30073 NCL30073 NCL30073 Semiconductor Semiconductor NOTE: All components to comply with RoHS 2002/95/EC www.onsemi.com... - Page 5 NCL30073LED4GEVB GERBER VIEWS Figure 5. Top Side PCB www.onsemi.com...
- Page 6 NCL30073LED4GEVB Figure 6. PCB Outline Circuit Board Fabrication Notes 11. Size tolerance of plated holes: ± 0.003 in. : 1. Fabricate per IPC−6011 and IPC6012. Inspect to non−plated holes ± 0.002 in. IPA−A−600 Class 2 or updated standard. 2. Printed Circuit Board is defined by files listed in 12.
- Page 7 NCL30073LED4GEVB ECA PICTURES Figure 7. Top View www.onsemi.com...
-
Page 8: Test Procedure
NCL30073LED4GEVB TEST PROCEDURE Equipment Needed Test Connections • 1. Connect the LED Load to the red(+) and black(−) AC Source – 200 to 260 V ac 50 Hz Minimum 100 W leads through the ammeter shown in Figure 10. capability Caution: Observe the correct polarity or the •... - Page 9 NCL30073LED4GEVB TEST DATA Figure 9. Power Factor Over Line Figure 10. THD Over Line www.onsemi.com...
- Page 10 NCL30073LED4GEVB Figure 11. Efficiency Figure 12. Regulation Over Line www.onsemi.com...
- Page 11 NCL30073LED4GEVB Figure 13. Start Up with AC Applied 230 V Figure 14. Output Ripple 75% Pk − Pk www.onsemi.com...
- Page 12 NCL30073LED4GEVB Figure 15. R15, R29, R38 Figure 16. Thermal Image SMT Side www.onsemi.com...
-
Page 13: Additional Information
