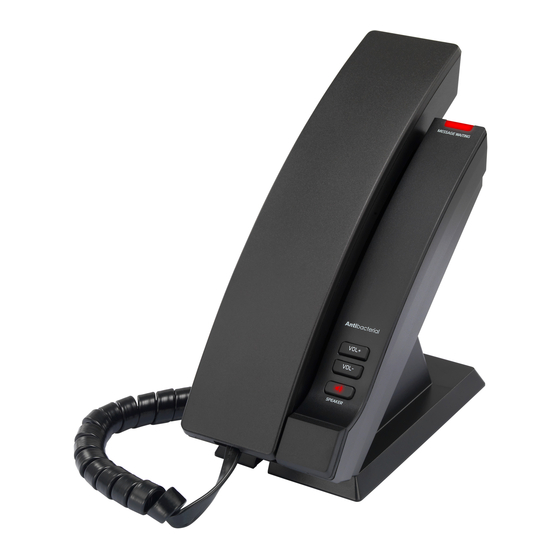

Sip corded trimstyle 1-line hotel phone
Hide thumbs Also See for SIP Contemporary Series:
Table of Contents

Advertisement

Quick Links

SIP Contemporary Series
CTM-S2315
SIP Corded Trimstyle 1-line Hotel Phone
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIP Contemporary Series and is the answer not in the manual?

Questions and answers

Related Manuals for VTech SIP Contemporary Series

Summary of Contents for VTech SIP Contemporary Series

  • Page 1 SIP Contemporary Series CTM-S2315 SIP Corded Trimstyle 1-line Hotel Phone User‘s Guide...

  • Page 2: Important Safety Instructions

    Important safety instructions The applied nameplate is located at the bottom or rear of the product. When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1.
  • Page 3 • If the product does not operate normally correctly oriented in a vertical or floor by following the operating instructions. mount position. The prongs are not Adjust only those controls that are covered designed to hold the plug in place if it is by the operation instructions.

  • Page 4: Table Of Contents

    Installation ..........7 Telephone settings ......10 Voice Menu ..........11 Telephone operation ......12 Appendix ...........13 Troubleshooting ........13 VTech Hospitality Limited Warranty Program ............16 Maintenance ..........18 Disclaimer and Limitation of Liability ..18 European Directives .........18 Declaration of Conformity .......18 Disposal of batteries and product ..19 Technical specifications .....21...

  • Page 5: Parts Check List

    Parts check list Items contained in the corded telephone package: Parts included Model Model name number Telephone base Ethernet Base stand| with faceplate Corded handset cable Mounting bracket and overlay Trimstyle SIP corded CTM-S2315 1-Line EN - 5...

  • Page 6: Telephone Layout

    Telephone layout SIP Corded Trimstyle 1-line CTM-S2315 MESSAGE WAITING LED Wall mount clip Corded handset earpiece Speed dial keys Switch hook Programmable key #5 VOLUME + Programmable key #6 VOLUME - Programmable key #7 Numeric dial keys Programmable key #8 Speed dial keys VOLUME + Programmable key #1...

  • Page 7: Installation

    Installation SIP Corded Trimstyle 1-line CTM-S2315 Telephone base installation Installation option - desktop position 1. Turn the telephone base over with the bottom side facing up. Insert the base stand into the lower grooves on the telephone base until they lock securely as shown below. 2.
  • Page 8 SIP Corded Trimstyle 1-line CTM-S2315 Telephone base installation Installation option - wall mount position To mount the telephone base on the wall 1. Install the telephone base as shown below. Ethernet cable wall jack Ethernet cable Coiled handset cord jack Ethernet cable jack 2.
  • Page 9 3. Turn the telephone base over with the bottom side facing up. Insert the mounting bracket into the two upper grooves and a lower groove on the telephone base until they lock securely. In the meantime, the ethernet cable sticks out from the rectangular hole. Besides, affix coil handset cord by fitting it in the circular hole at the bottom of the mounting bracket as shown below.

  • Page 10: Telephone Settings

    Telephone settings SIP Corded Trimstyle 1-line CTM-S2315 Default settings are indicated by asterisks (*). Setting Options Adjustable by Handset earpiece volume 1, 2, 3, 4, 5, 6*, 7, 8 User and administrator Speakerphone volume 1, 2, 3, 4, 5, 6*, 7, 8 User and administrator Ringer tone Tone 1*, Tone 2, Tone 3...

  • Page 11: Voice Menu

    Voice Menu The Voice menu enables you to use the handset to query and change phone settings. To access the Voice Menu: 1. When the phone is idle, lift the corded handset from the telephone base. 2. Press this key sequence on the handset: Û Û Û Û. A digitized voice on the handset will announce Voice Menu options.

  • Page 12: Telephone Operation

    Telephone operation Volume Listening volume can be adjusted from the SIP Corded Trimstyle 1-line corded handset and ringer volume can be CTM-S2315 adjusted from the telephone base. Receive a call To adjust the listening volume: During a call, press VOL+/ VOL- to adjust When there is an incoming call, the telephone the listening volume.

  • Page 13: Appendix

    Appendix Troubleshooting If you have difficulty with the telephones, please try the suggestions below. +44 (0)1706 694 070 or email ukca@trustdistribution.com For customer service, call For corded telephone Question Suggestions • Make sure a Cat-5 network cable is plugged into the LAN port of the telephone base and the network wall jack with Power over Ethernet (PoE).
  • Page 14 Question Suggestions • Try all the above suggestions. • A prefix may be required for dialling some internal or external calls • Make sure there is a dial tone before dialling. It is normal if the cordless handset takes a second or two to synchronise with the 5.
  • Page 15 Question Suggestions • Disconnect the telephone base from the network wall jack and connecta and connect a different working telephone. Check your 8. I hear other calls when using the telephone. server settings. If calls are still not clear, the problem is probably in the wiring or network server.

  • Page 16: Vtech Hospitality Limited Warranty Program

    Product of the shipping the Product, or for installation or same or similar design. Repair or replacement set up, adjustment of customer controls, and of Product, at VTech’s option, is the exclusive installation or repair of systems outside the remedy. unit.
  • Page 17 You must pay for the cost of exceed the purchase price of the Product. In repair and return shipping costs for the repair no event shall VTech be liable for any indirect, of Products that are not covered by this limited special, incidental, consequential, or similar warranty.

  • Page 18: Maintenance

    Limited and its suppliers assume no responsibility parts, so it must be treated with care. for any loss or claims by third parties that may arise through the use of this product. VTech Avoid rough treatment Telecommunications Limited and its suppliers Place the handset down gently.

  • Page 19: Disposal Of Batteries And Product

    Disposal of batteries and product Product disposal instructions for business users ( ‚) These symbols on the products, If you wish to discard electrical and electronic packaging, and/or accompanying documents equipment, please contact your dealer or mean that used electrical and electronic supplier for further information.
  • Page 20 Appendix EN - 20...

  • Page 21: Technical Specifications

    Technical specifications SIP Corded Trimstyle - CTM-S2315 Telephone base: ower over Ethernet (PoE) IEEE 802.3af class 2 (48V) If PoE not available, power adapter (sold separately): Power requirement • Input: 100-240V~ 50/60Hz 0.5A Output: 5V DC @ 2.0A • Manufacturer: VT-PLII •...
  • Page 22 EN - 22...
  • Page 23 Specifications are subject to change without notice. Copyright © 2022 VTech Telecommunications Limited All rights reserved. 10/22. CTM-S2315_UG_V1_CEC_EU-UK_2022.10.31...
