  • Page 1 SIP Contemporary Series CTM-S2315 SIP Corded Trimstyle 1-line Hotel Phone Master User ‘s Guide...

  • Page 2: Important Safety Instructions

    Important safety instructions When using your telephone equipment, basic safety precautions should always followed to reduce the risk of fire, electric shock and injury, including the following: 1. This product should be installed by a power cord. Do not install this product qualified technician.
  • Page 3 • If the product has been dropped and the 20. In wall mounting position, make sure to telephone base and/or handset has been mount the telephone base on the wall by damaged. aligning the eyelets with the mounting studs of the wall plate. Then slide the telephone •...

  • Page 4: Instructions De Sécurité Importantes

    Instructions de sécurité importantes Lorsque vous utilisez votre équipement téléphonique, des précautions de base doivent toujours être prises pour réduire les risques d’incendie, d’électrocution et de blessure, notamment les suivantes : 1. Ce produit doit être installé par un 9. Ce produit ne doit être utilisé qu’avec technicien qualifié.
  • Page 5 • Si le produit a été exposé à la pluie ou à 17. Ne placez le combiné de votre téléphone l’eau. près de votre oreille que lorsqu’il est en mode de conversation normal. • Si le produit ne fonctionne pas 18.

  • Page 6: Table Of Contents

    Parts check list 7 Telephone layout Installation 9 Telephone settings Telephone operation 13 Appendix 14 Troubleshooting VTech Hospitality Limited Warranty Program FCC, ACTA and IC regulations Operating range Precautions for users of implanted cardiac pacemakers 22 Maintenance 23 Disclaimer and Limitation of Liability...

  • Page 7: Parts Check List

    Parts check list Items contained in the corded telephone package: Parts included Model Model name number Telephone base Base stand| with faceplate Corded handset Ethernet cable Mounting bracket and overlay Trimstyle SIP corded CTM-S2315 1-Line EN - 7...

  • Page 8: Telephone Layout

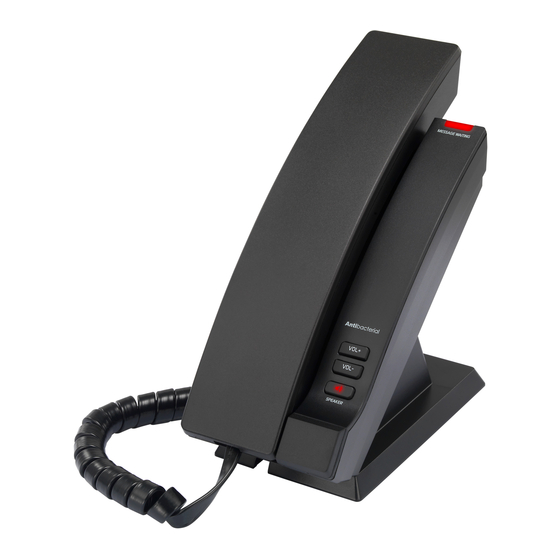

    Telephone layout SIP Corded Trimstyle 1-line CTM-S2315 MESSAGE WAITING LED Wall mount clip Corded handset earpiece Speed dial keys Switch hook Programmable key #5 VOLUME + Programmable key #6 VOLUME - Programmable key #7 Numeric dial keys Programmable key #8 Speed dial keys VOLUME + Programmable key #1...

  • Page 9: Installation

    Installation SIP Corded Trimstyle 1-line CTM-S2315 Telephone base installation Installation option - desktop position 1. Turn the telephone base over with the bottom side facing up. Insert the base stand into the lower grooves on the telephone base until they lock securely as shown below. 2.
  • Page 10 SIP Corded Trimstyle 1-line CTM-S2315 Telephone base installation Installation option - wall mount position To mount the telephone base on the wall 1. Install the telephone base as shown below. Ethernet cable wall jack Ethernet cable Coiled handset cord jack Ethernet cable jack 2.
  • Page 11 3. Turn the telephone base over with the bottom side facing up. Insert the mounting bracket into the two upper grooves and a lower groove on the telephone base until they lock securely. In the meantime, the ethernet cable sticks out from the rectangular hole. Besides, affix coil handset cord by fitting it in the circular hole at the bottom of the mounting bracket as shown below.

  • Page 12: Telephone Settings

    Telephone settings SIP Corded Trimstyle 1-line CTM-S2315 Default settings are indicated by asterisks (*). Setting Options Adjustable by Handset earpiece volume 1, 2, 3, 4, 5, 6*, 7, 8 User and administrator Speakerphone volume 1, 2, 3, 4, 5, 6*, 7, 8 User and administrator Ringer tone Tone 1*, Tone 2, Tone 3...

  • Page 13: Telephone Operation

    Telephone operation Volume SIP Corded Trimstyle 1-line CTM-S2315 Listening volume can be adjusted from the corded handset and ringer volume can be adjusted from the telephone base. Receive a call To adjust the listening volume: When there is an incoming call, the telephone rings and the MESSAGE WAITING LED flashes.

  • Page 14: Appendix

    Appendix Troubleshooting If you have difficulty with the telephones, please try the suggestions below. For customer service, visit our website at www.vtechhotelphones.com or call 1-888-907-2007. For corded telephone Question Suggestion • Make sure a Cat-5 network cable is plugged into the LAN port of the telephone base and the network wall jack with Power over Ethernet (PoE).
  • Page 15 Question Suggestion • Try all the above suggestions. • A prefix may be required for dialing some internal or external calls • Make sure there is a dial tone before dialing. It is normal if the cordless handset takes a second or two to synchronize with the I cannot dial out.
  • Page 16 Question Suggestion • Disconnect the telephone base from the network wall jack and connecta and connect a different working telephone. Check your I hear other calls when using the telephone. server settings. If calls are still not clear, the problem is probably in the wiring or network server.

  • Page 17: Vtech Hospitality Limited Warranty Program

    VTech Hospitality Limited Warranty or replacement of Product, at VTech’s option, is the exclusive remedy. Program The limited warranty period for the Product VTech Communications, Inc., the manufacturer begins on the date that the end user takes of VTech Hospitality Product (“Product”), possession of the Product.
  • Page 18 Product. and transportation and are responsible for In no event shall VTech be liable for any delivery or handling charges incurred in the indirect, special, incidental, consequential, or transport of Product(s) to the service location.

  • Page 19: Fcc, Acta And Ic Regulations

    Appendix FCC Part 68 and ACTA This equipment complies with Part 68 of the FCC, ACTA and IC regulations FCC rules and with technical requirements FCC Part 15 adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the This equipment has been tested and found back or bottom of this equipment contains, to comply with the limits for a Class B digital...
  • Page 20 For repair procedures, follow the instructions adjunct because modification of the host outlined under VTech Hospitality limited system is often required. warranty program in the user’s manual. This product can only be connected to the host To ensure safety of users, the FCC has equipment and never directly to the network.
  • Page 21 ISEDC Warning This device complies with Innovation, Science, and Economic Development Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, (2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 22: Operating Range

    Appendix Precautions for users of implanted cardiac pacemakers Operating range Cardiac pacemakers (applies only to digital The cordless telephone operates with the cordless telephones): maximum power allowed by the Federal Wireless Technology Research, LLC (WTR), Communications Commission (FCC). Even so, an independent research entity, led a the cordless handset and telephone base can multidisciplinary evaluation of the interference...

  • Page 23: Maintenance

    Appendix Disclaimer and Limitation of Liability VTech Communications, Inc. and its suppliers Maintenance assume no responsibility for any damage or loss resulting from the use of this user’s manual. Taking care of your telephone VTech Communications, Inc. and its suppliers...
  • Page 24 Appendix EN - 24...

  • Page 25: Technical Specification

    Technical specification SIP Corded Trimstyle - CTM-S2315 Power requirement PoE class 2 powered (48V) Message waiting signal Steady/periodic high voltage pulse or periodic low voltage pulse Speed Dial memory Telephone handset: up to 8 memory locations; up to 16 digits Size Telephone base: 175.27 x 74.15 x 162.95 Corded handset: 211.79 x 74.14 x 69.43...
  • Page 26 Index Speakerphone 13 Technical specification 25 Troubleshooting 14 Cardiac pacemakers 22 Volume 13 End a call 13 Listening 13 Ringer 13 FCC, ACTA and IC regulations 19 Wall mount 10 Hold a call 13 Important safety instructions 2 Installation 9, 10 Limited Warranty 17 Listening volume 13 Messages 13...
  • Page 27 EN - 27...
  • Page 28 Specifications are subject to change without notice. Copyright © 2020 VTech Telecommunications, Inc. All rights reserved. 10/20. CTM-S2315_ MUG_V1_CEC_20201013...
